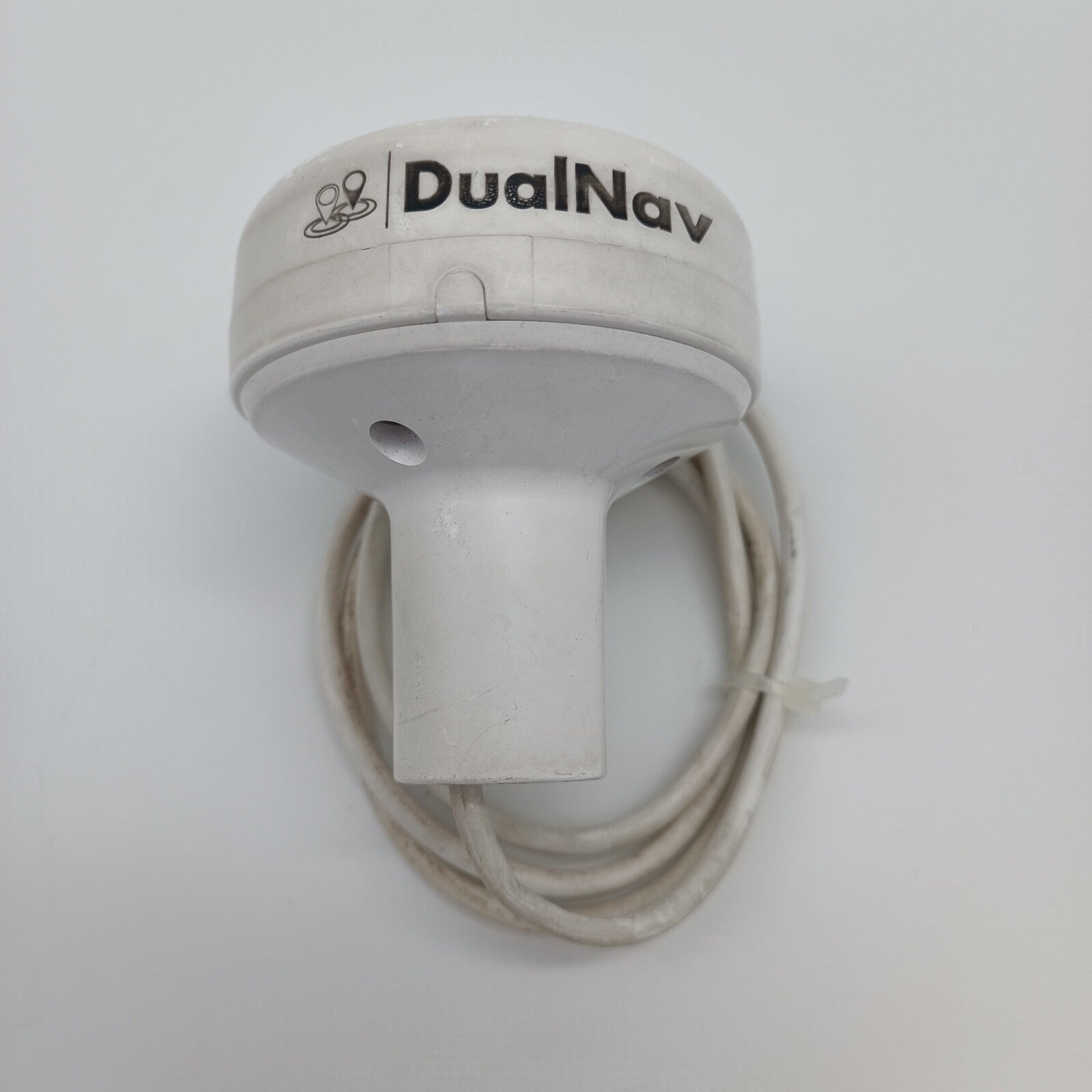

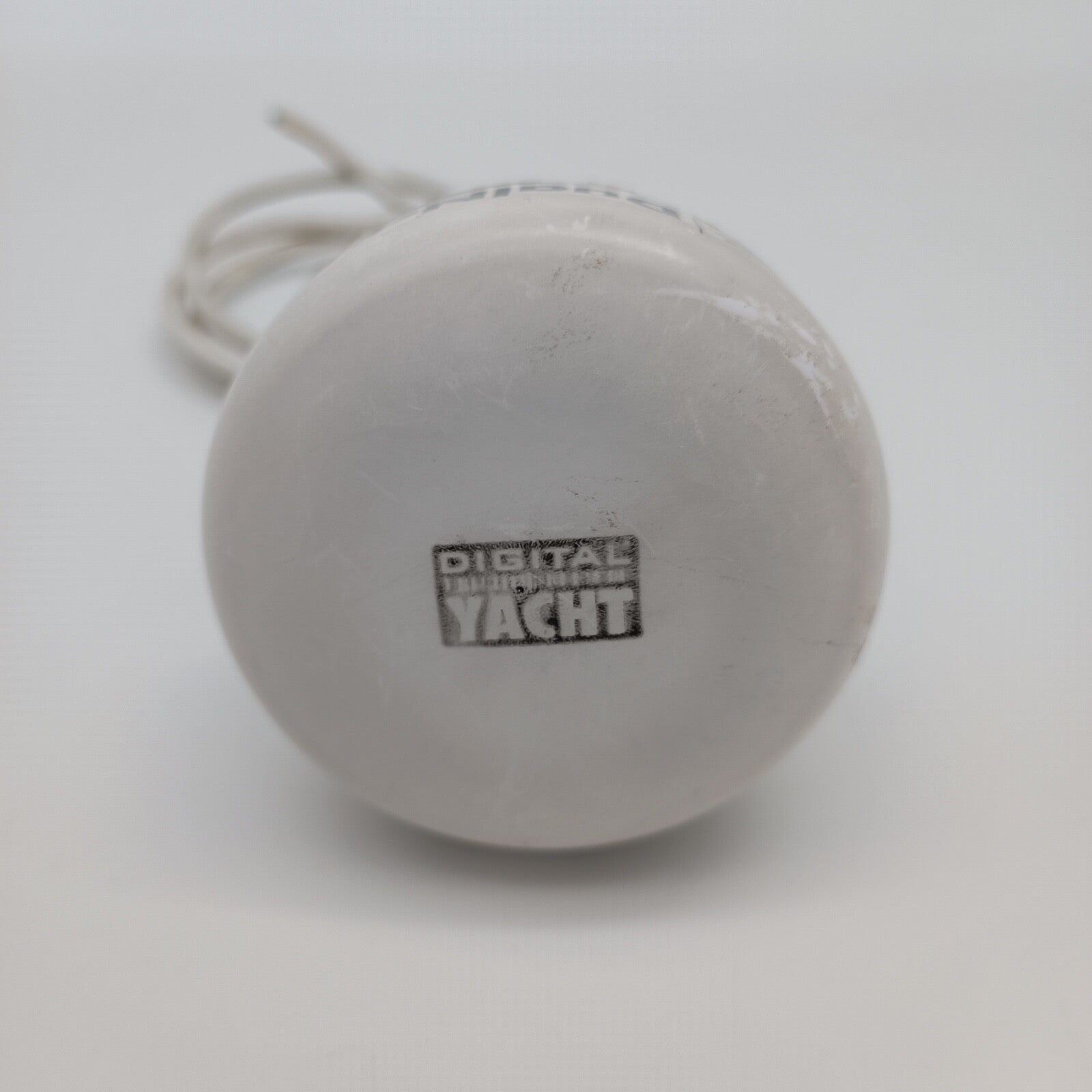

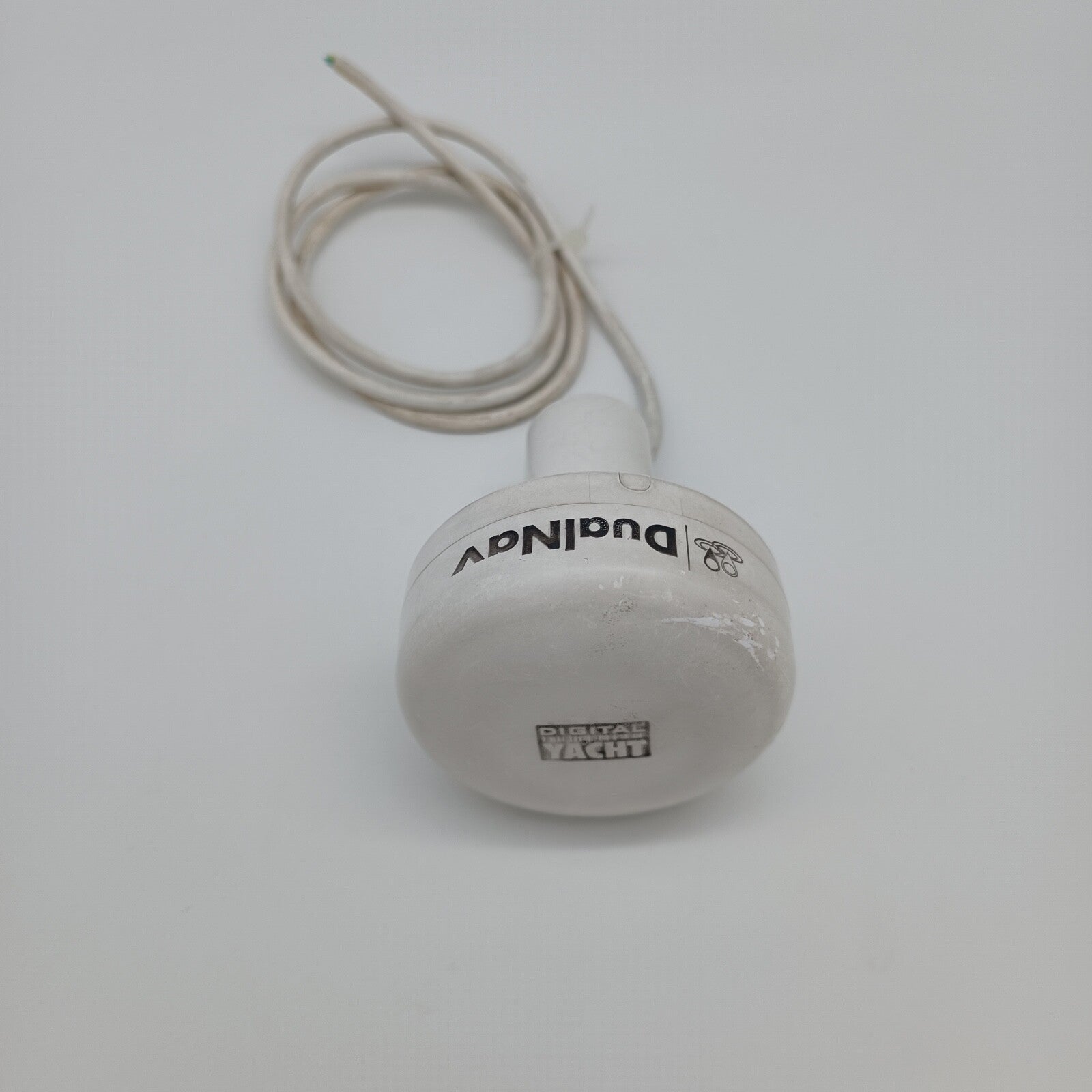

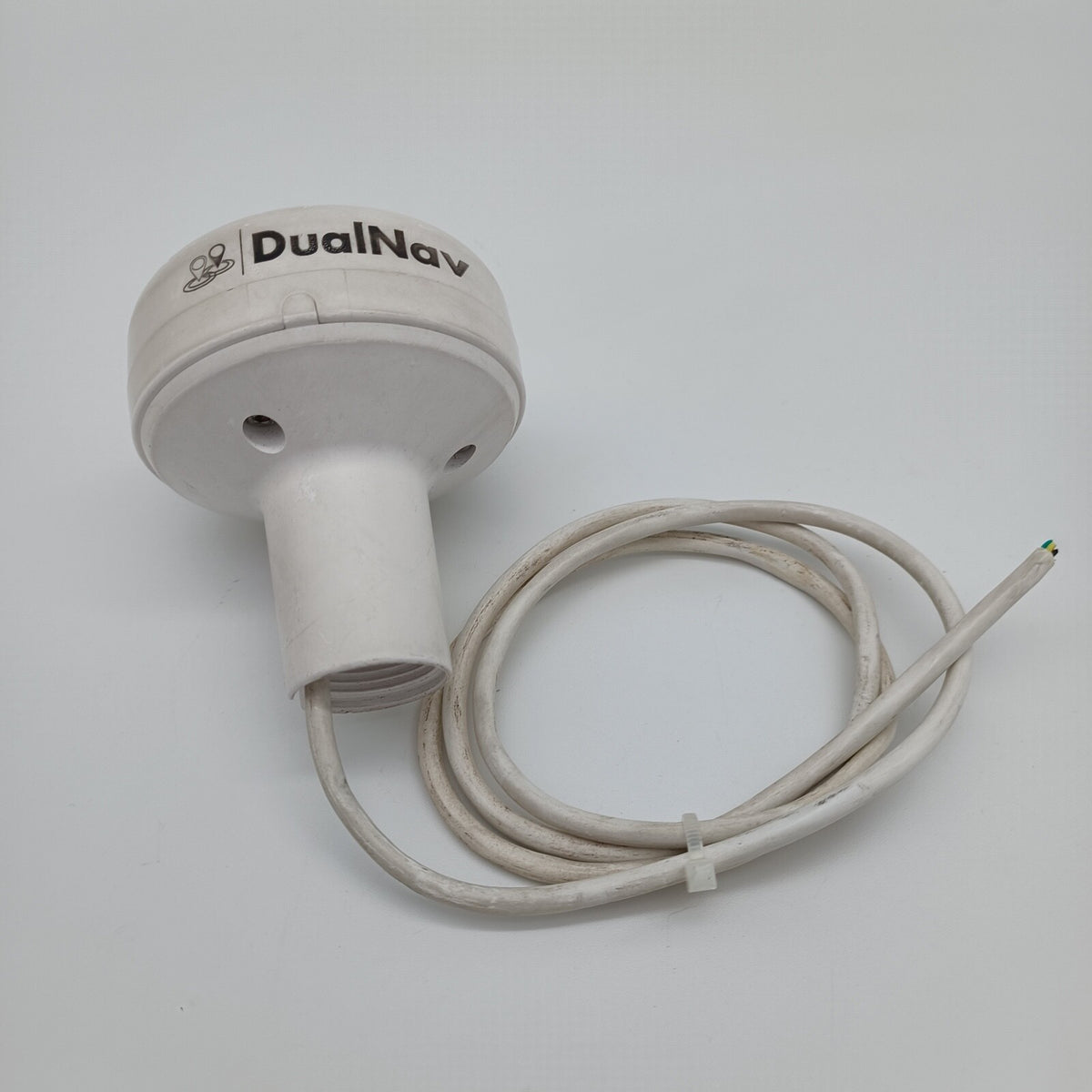

The GPS150 DualNav™ positioning sensor combines a super accurate 50
channel GPS with GLONASS, the Russian funded satellite positioning system
that is now on line and providing an excellent back up or alternative to GPS. This
“smart” sensor will automatically switch between the systems or the user can
manually select the most appropriate for their activity. The GPS150 will also be
able to utilise the European funded Galileo positioning system when it comes on
line (IOC – Initial Operation Capability in 2018).
The implementation of GLONASS as an additional satellite positioning
system is probably the biggest step change in maritime navigation since
GPS was fully augmented back in the mid 90’s. Digital Yacht’s GPS150
utilises the industry standard NMEA data format allowing older chart plotters as well as current generation products to take advantage of this new
technology.
The GPS150 also allows the user to select a variety of different NMEA
baud rates (4800, 38400 and 115200) to allow interfacing with legacy and
current systems. It also supports a new TurboNav™ mode which will appeal
to racing yachtsmen and performance users where GPS/GLONASS data
is output at 10Hz (10 x faster update than normal) and with an interface
speed of 115200 baud which is 24 x the speed of normal NMEA data. This
massively improves slow speed navigation data as well as providing the best
course and speed data in a dynamic situation.

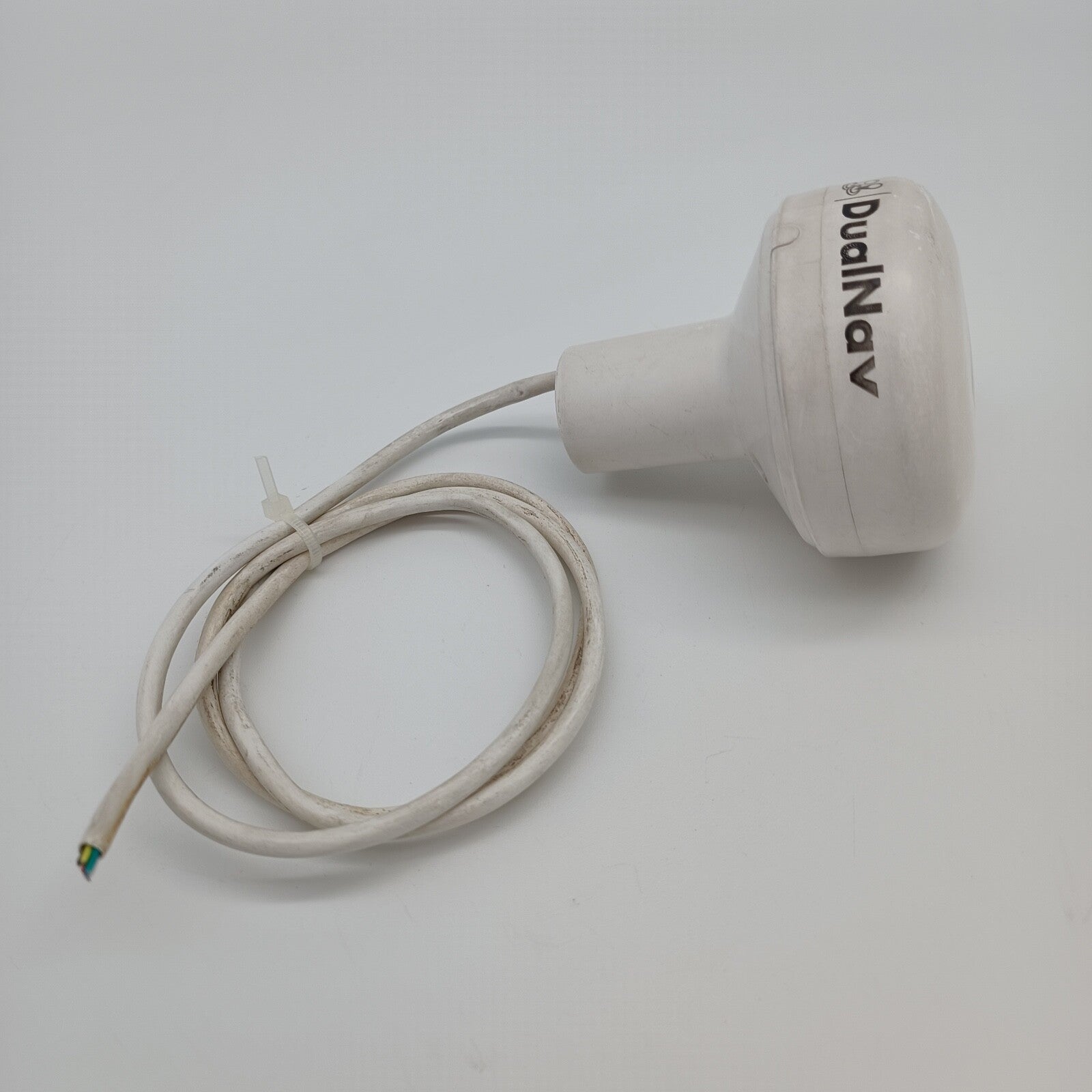

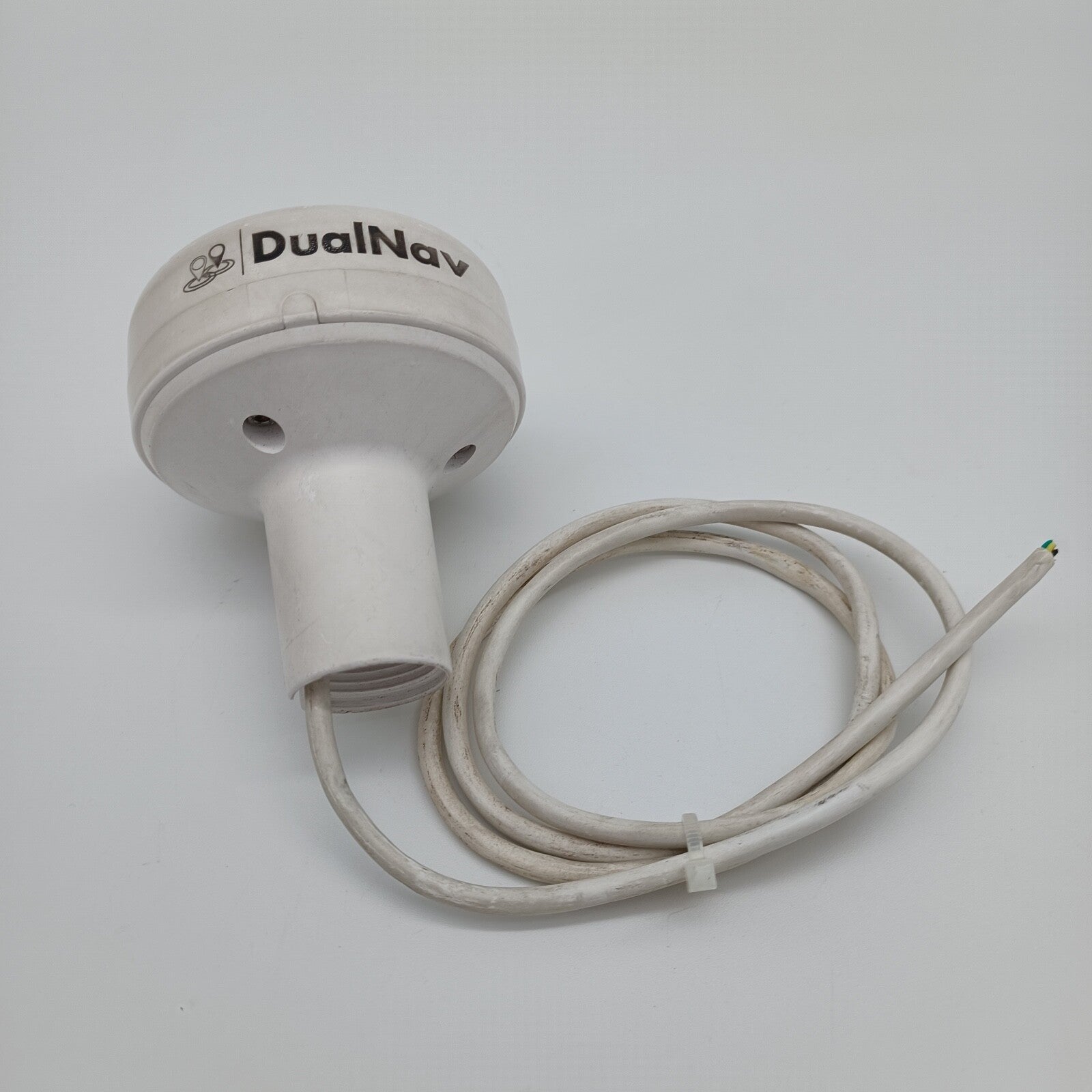

The GPS150 houses all the electronics in its compact 75mm antenna and

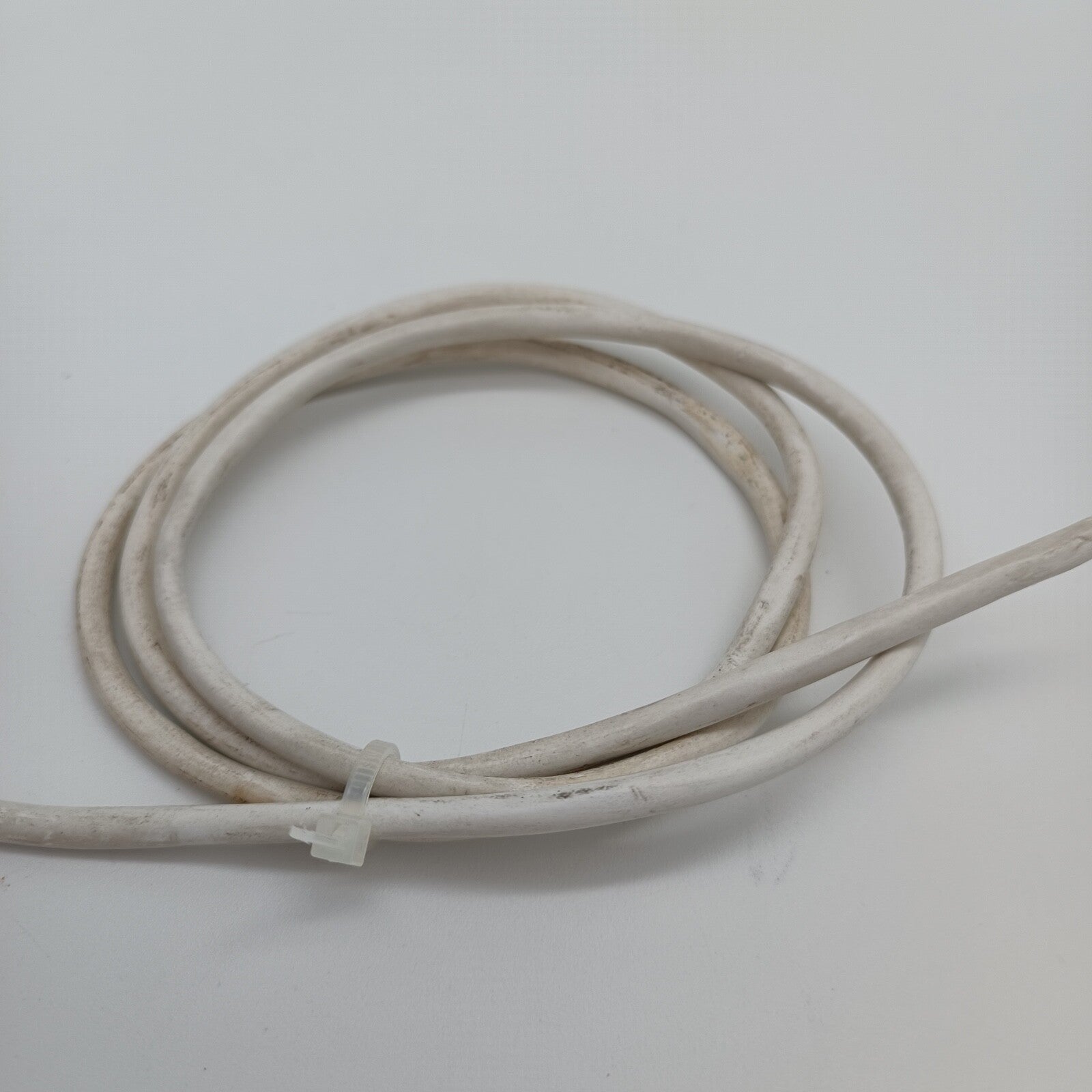

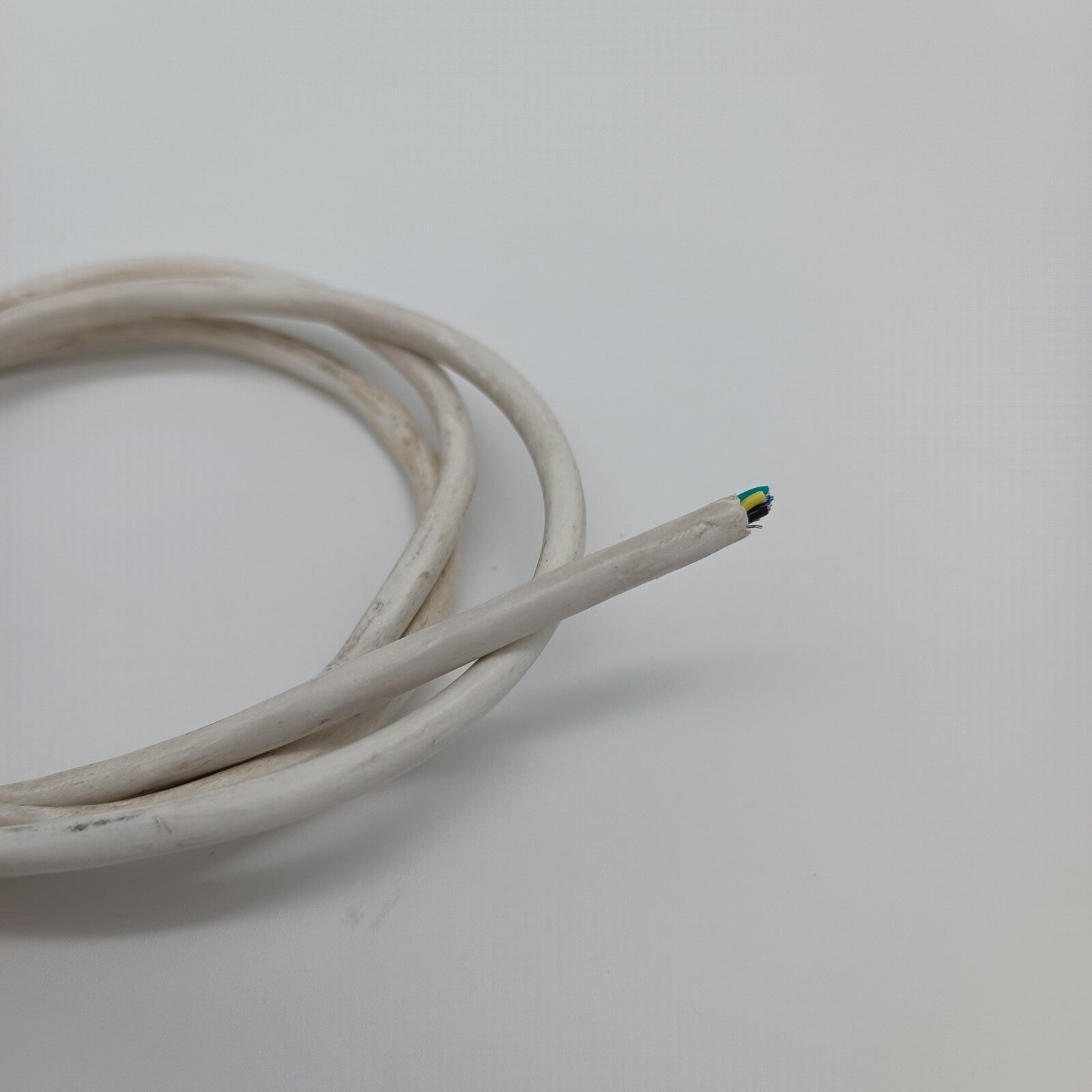

has a single multi core cable for power and data. Power consumption is
just 30mA at 12V. It can be used as a simple positioning sensor for plotter
or VHF DSC systems as well as a precision, high speed sensor for performance sailing/super yachts. Setup is easy with a block of simple internal
switches setting the characteristics of the unit. This allows the device to be
programmed in the field without specialist software or programming tools.
The GPS150 can also connect to the WLN10 wireless interface to allow data
• 50 channel precision GPS/GLONASS positioning sensor
• Just 75mm in diameter and designed to fit industry standard 1” mounts
• Ultra tough, waterproof construction
• NMEA output configurable for 4800, 38400 and 115200 baud
• Selectable update rates from 1 to 10Hz
• Configurable in the field using simple DIP switches inside the antenna
• TurboNav mode offers super fast updates to optimise positioning information in slow and high speed applications
• WAAS/EGNOS/SBAS enabled for sub 1m accuracy
• User selectable GPS/GLONASS mode or auto selection
• Ultra low 30mA power consumption (at 12V DC)
• 5-30V DC power input
