In perfect working condition with full warranty.
GMDSS approved for commercial ships.

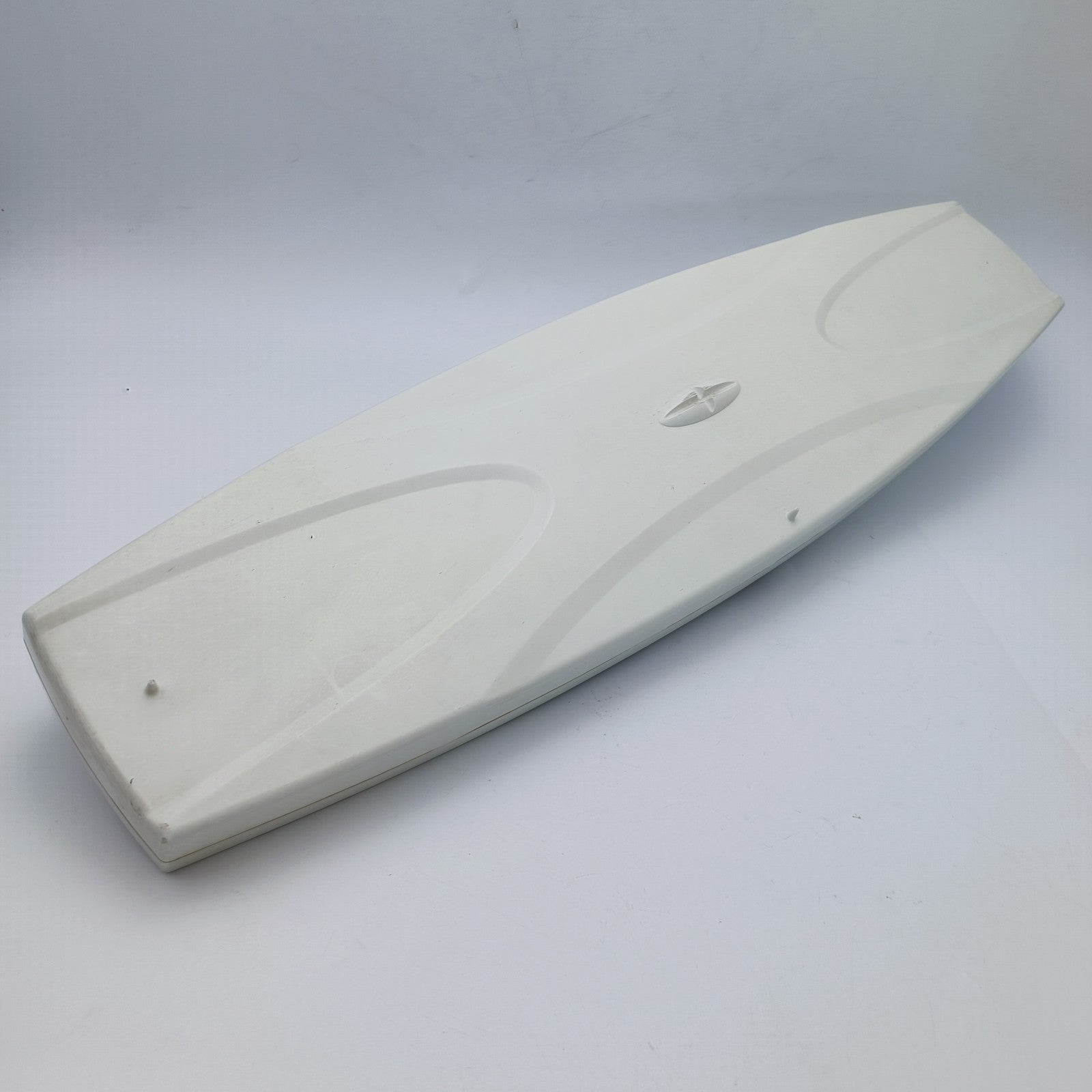

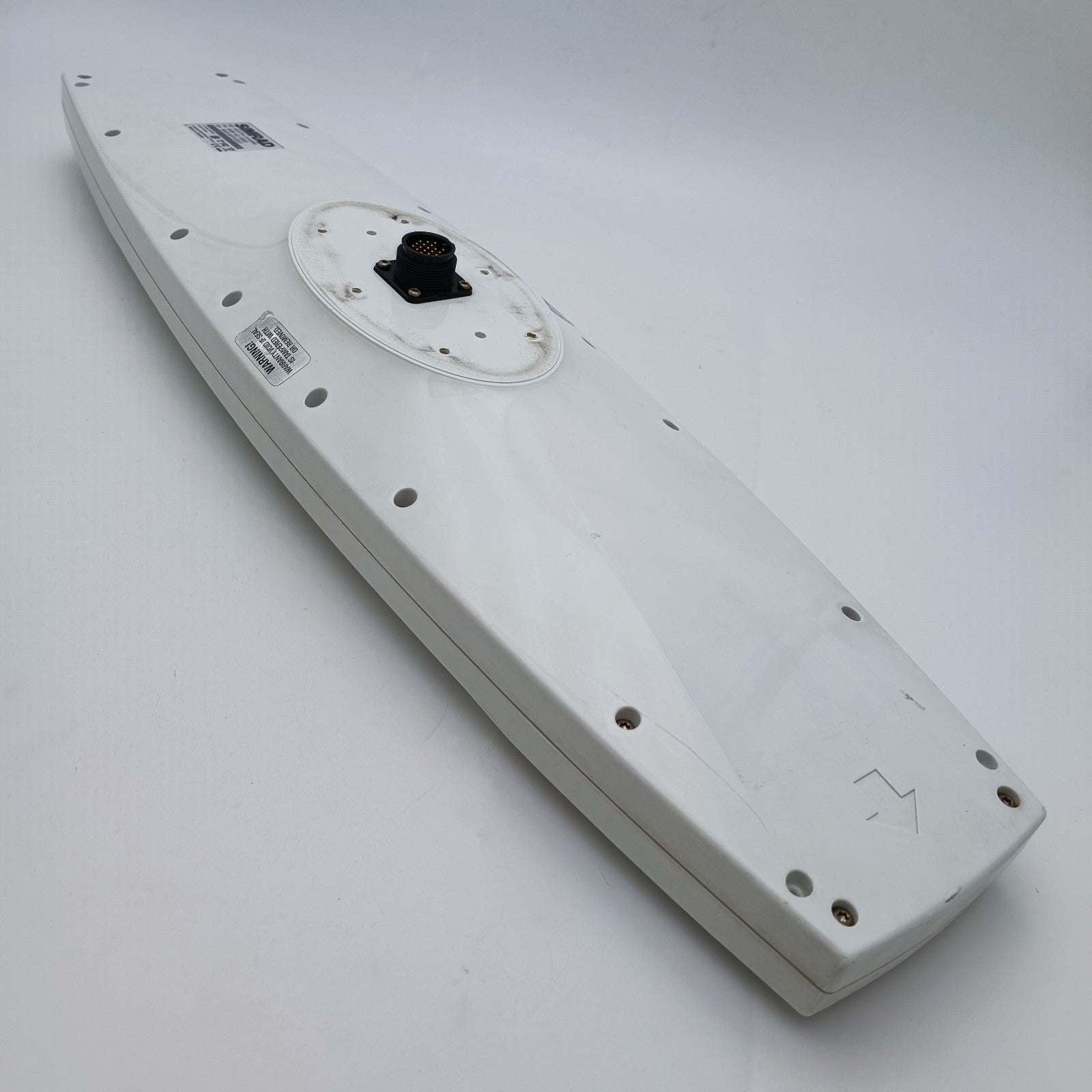

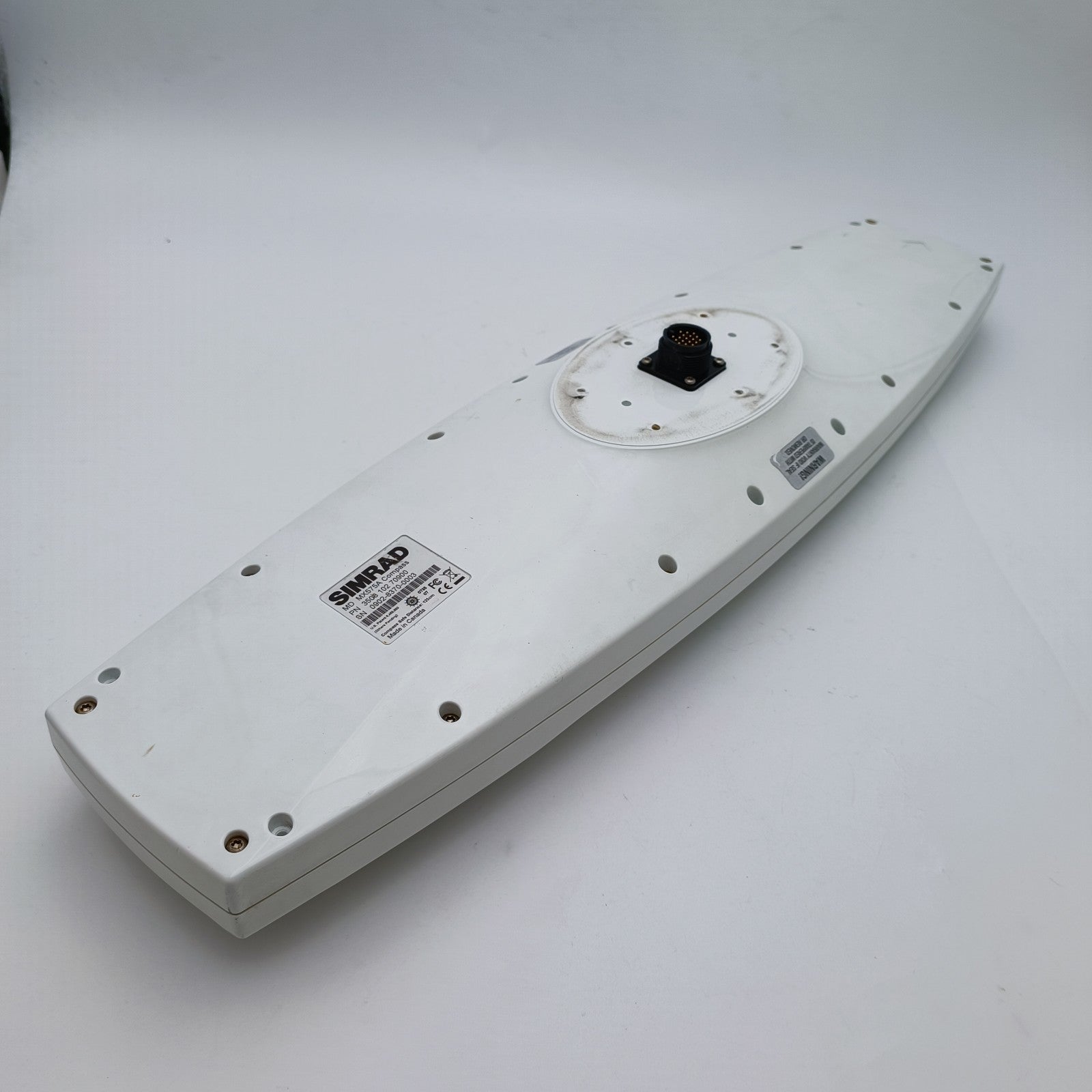

The smart GPS compass is a complete GPS heading and positioning system in a single enclosure that requires only one power/data cable connection. With its NMEA 2000/NMEA 0183 support and ease of installation, it is the perfect solution for marine applications.
The HS80A/MX575D is an integrated system that houses the following:
- New GPS + GLONASS engine technology
- Two Dual-Frequency GPS/GLONASS antennas
- Beacon receiver and H-field beacon antenna (MX575D only)
- Power supply
- Single axis gyro
- Tilt sensor on each axis (X and Y axes)
The gyro and tilt sensors are present in all models to improve system performance and to provide backup heading information in the event that GPS heading is not available due to signal blockage.
→ Note: The HS80A GPS compass is identical to the MX575D DGPS compass with the exception that it does not contain a DGPS beacon receiver and H-field antenna. If you purchased the HS80A GPS compass, disregard the sections of this manual that discuss the beacon signal, receiver operation, and implications to installation relating to the beacon signal.
The new GPS engine technology supports multiple RF front ends - enabling tighter coupling of measurements from separate antennas for use in heading-based products. Users will achieve excellent accuracy and stability due to the more accurate code phase measurements, improved multipath mitigation, and fewer components.
The two smart GPS antennas are separated by 50 cm between their phase centers, resulting in +/- 0.5° RMS heading performance. The smart GPS compass provides heading and positioning updates of up to 25 Hz and delivers positioning accuracy of less than 1.0 m 95% of the time when using differential GPS corrections from beacon (MX575D only) or from Satellite Based Augmentation Systems (SBAS).
The smart GPS compass also features the GPS' exclusive COAST'™ technology that enables the
GPS receivers to utilize old differential GPS correction data for 40 minutes or more without significantly affecting the positioning quality. The MX575D is less likely to be affected by differential signal outages due to signal blockages, weak signals, or interference when using COAST.
| Conditions | |
|---|---|
| Manufacturer part number |
