BRAND NEW WITH FULL 24 months warranty. Can work with several differen brands such as Raymarine, Autohelm, Raytheon, Simrad, Robertson, Furuno, B&G, Navico, Lowrance, Cetrek, TMQ, NAVMAN, NORTHSTAR etc.

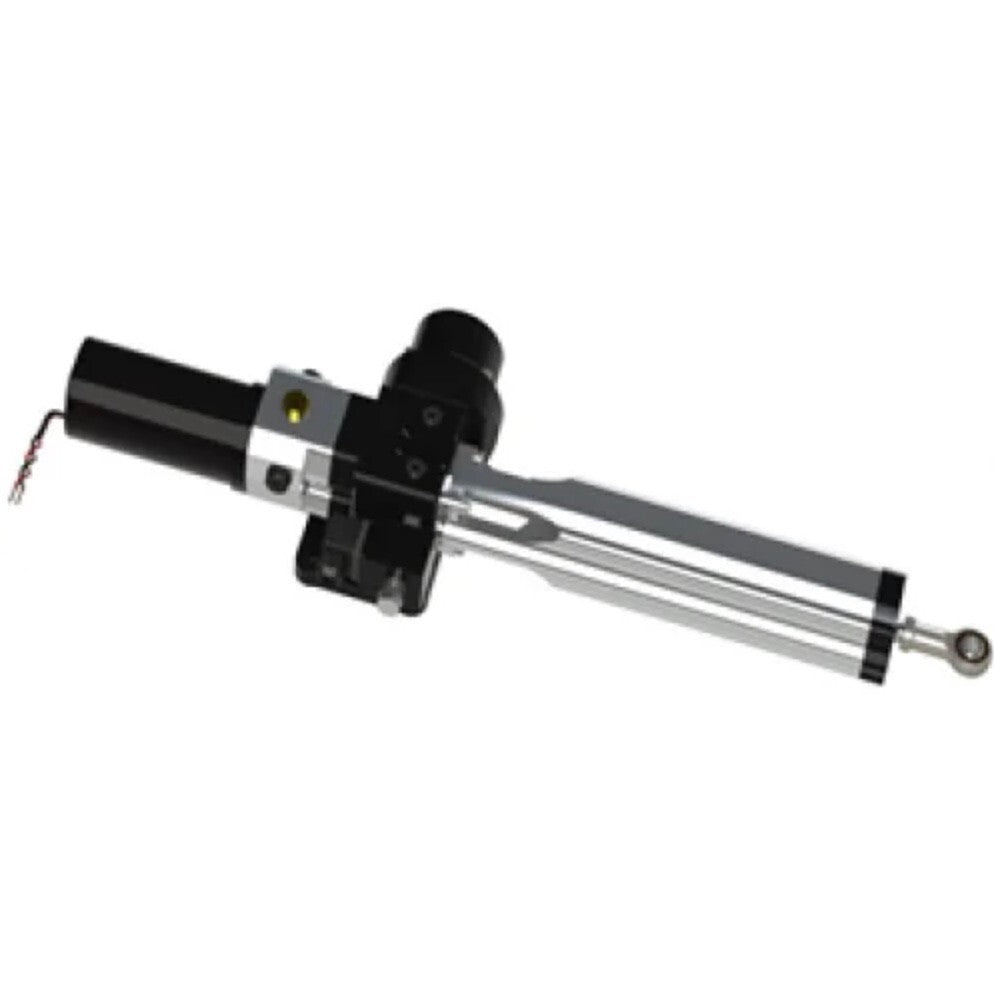

Hypro ML40-8 Plus 12V hydraulic linear ram ML40-08 ML40+ autopilot drive. Same as Raymarine TYPE 1 12V
ML+40-8 Compact Linear Actuator for smaller vessels
This new compact unit is designed for smaller or lighter yachts with space restrictions and lower thrust requirements.
Depending on vessel weight, sail plan and rudder forces the new actuator is suitable for sailing yachts of up to 45 feet (15 m).
200mm 82 stroke Linear actuator 12v DC
Voltage: 12 VDC
Current: Typical Amp-hour Typical Current H.O time seconds
60kg at 25% duty Intermittent 350kg (no load)
1.3A 14.0A 12
Ingress protection: IP67
EMC Protection S EN 60945:2002 (DC)
Ignition Protection BS EN 28846:1993
EN ISO 10592:1995 (Small Craft - Hydraulic Steering Systems)
Ambient operating Temperature: -15 to + 55 deg C
Max Operating Thrust: 350kg (Intermittent)
Orientation:
Red lead to positive - Extends
Black lead to positive - Retracts
Clutch coil 12 watt
Clutch connection: DIN 43650 (6-8 mm cable)
Fluid: ISO VG10 to VG40 hydraulic mineral fluid to ISO 6743-4 HV
Weight: 8 kg (17.6lb)
