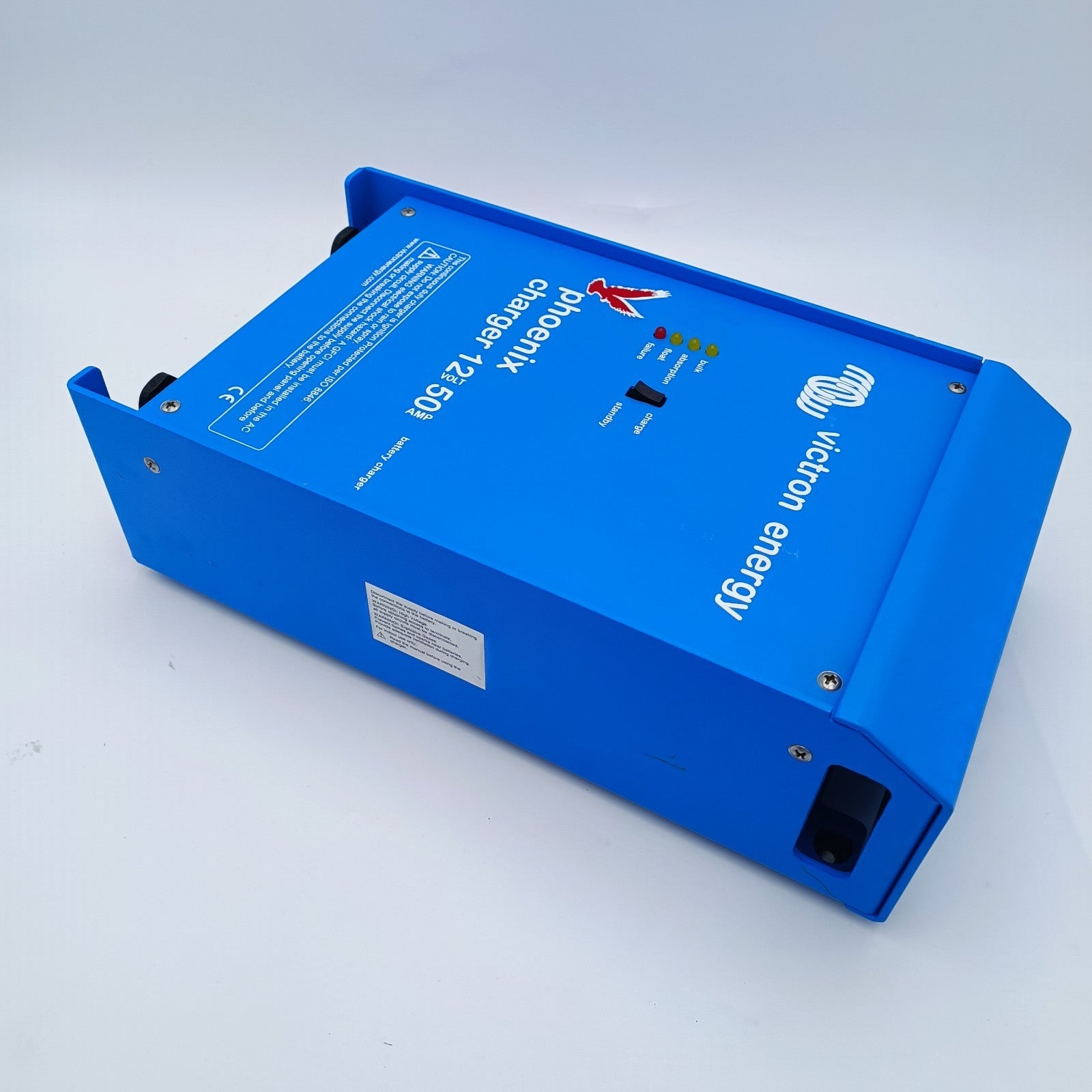

Victron Energy Phoenix 12V 50 Amp Microprocessor Battery Charger PCH012050001

Professionally refurbished with full warranty.

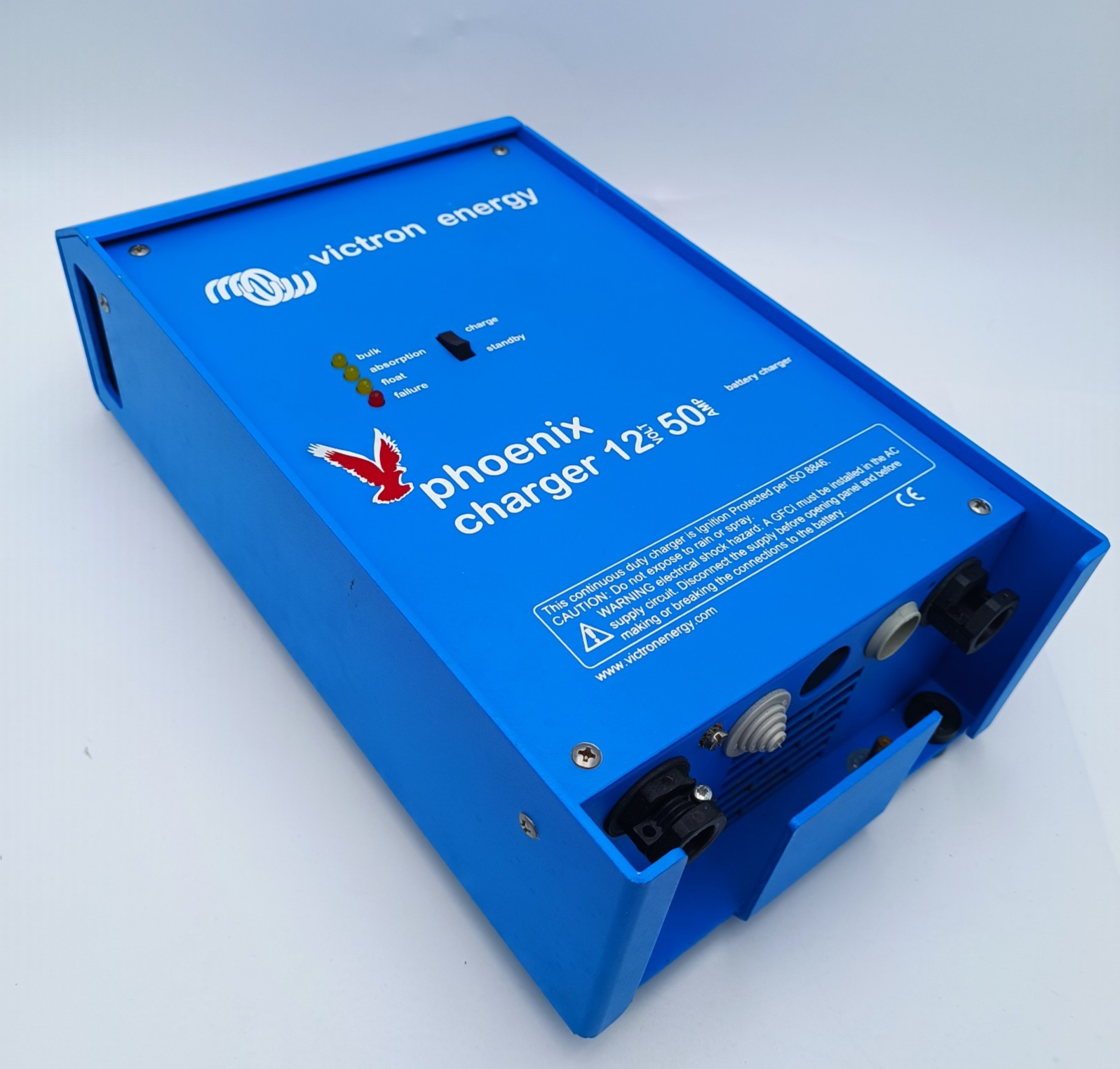

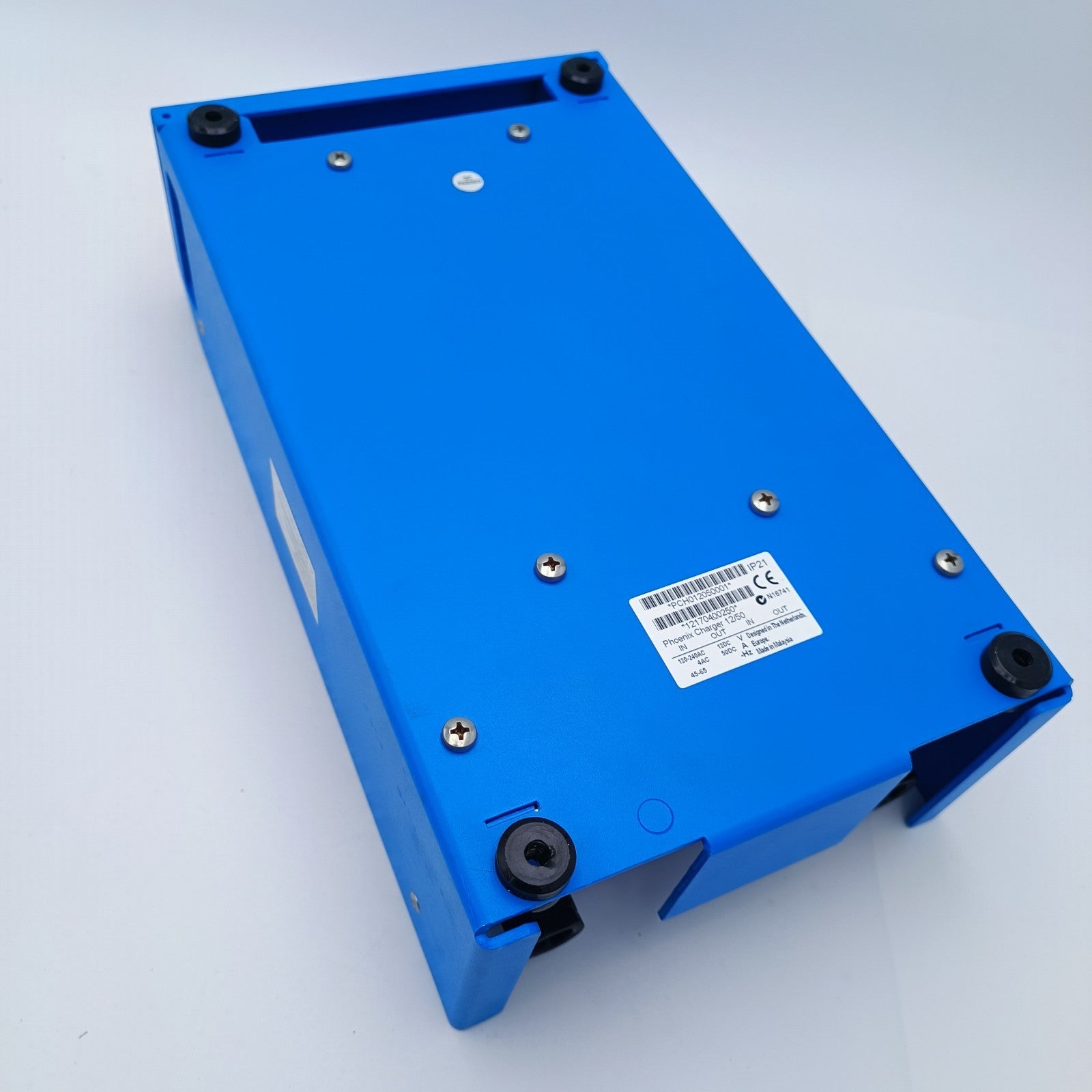

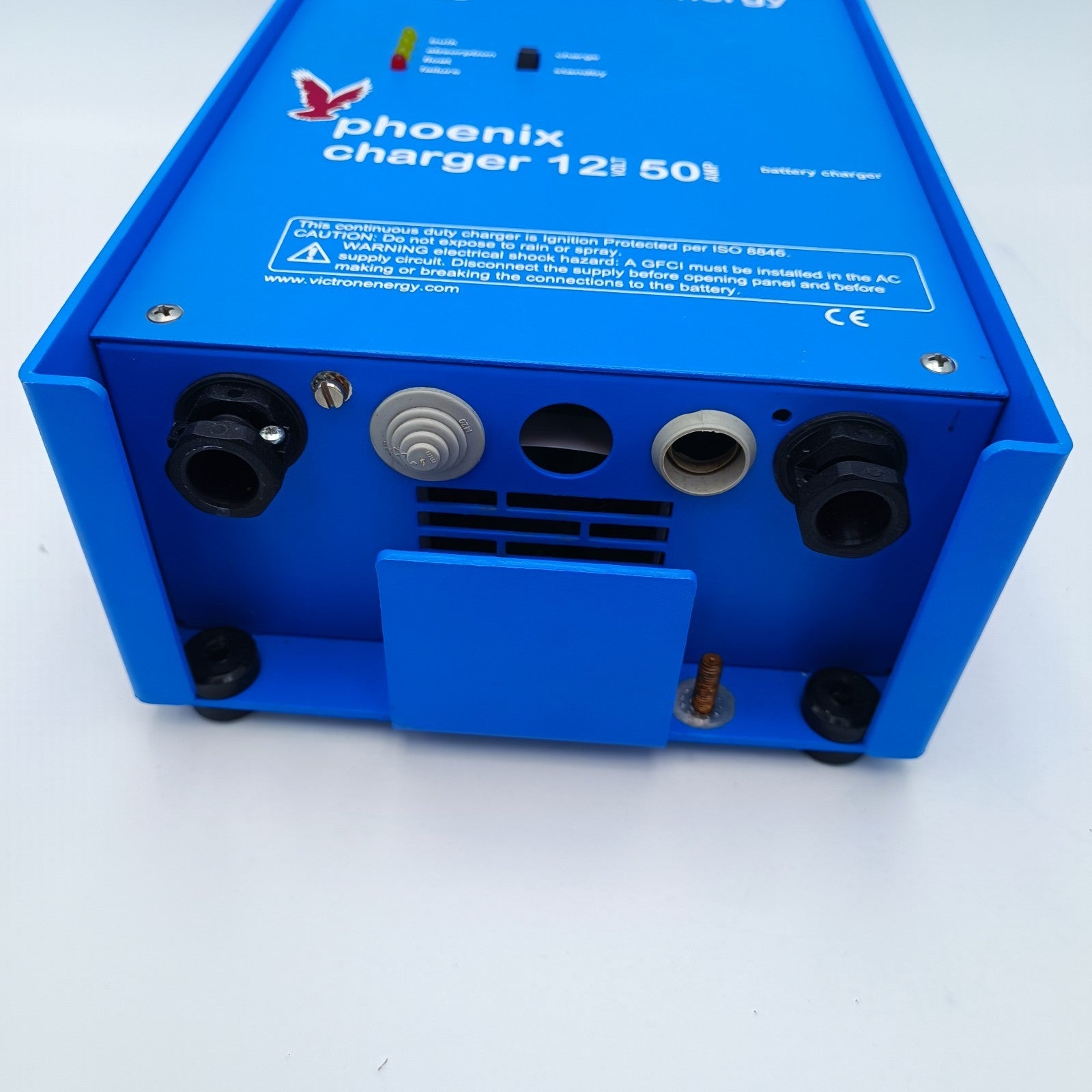

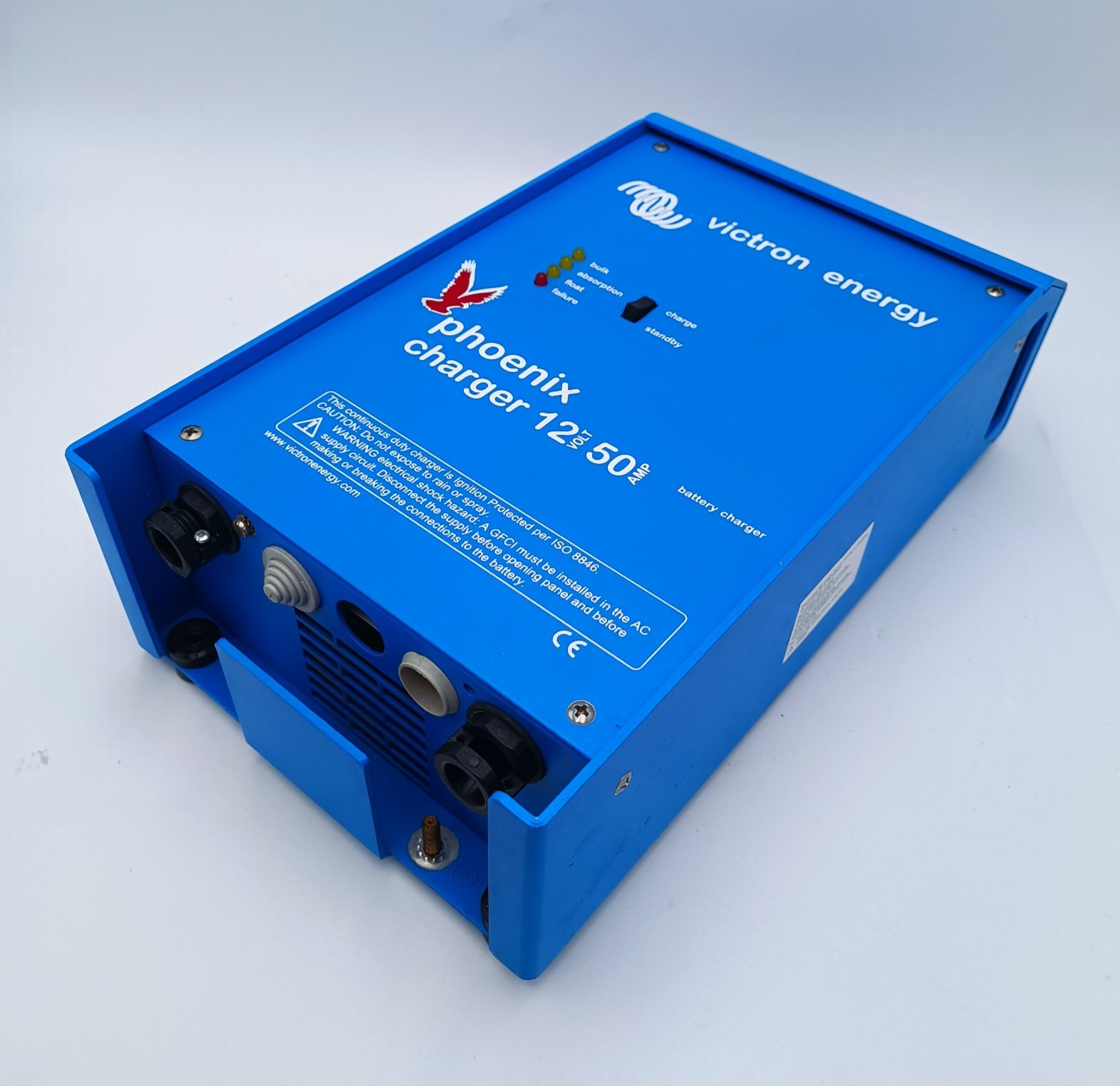

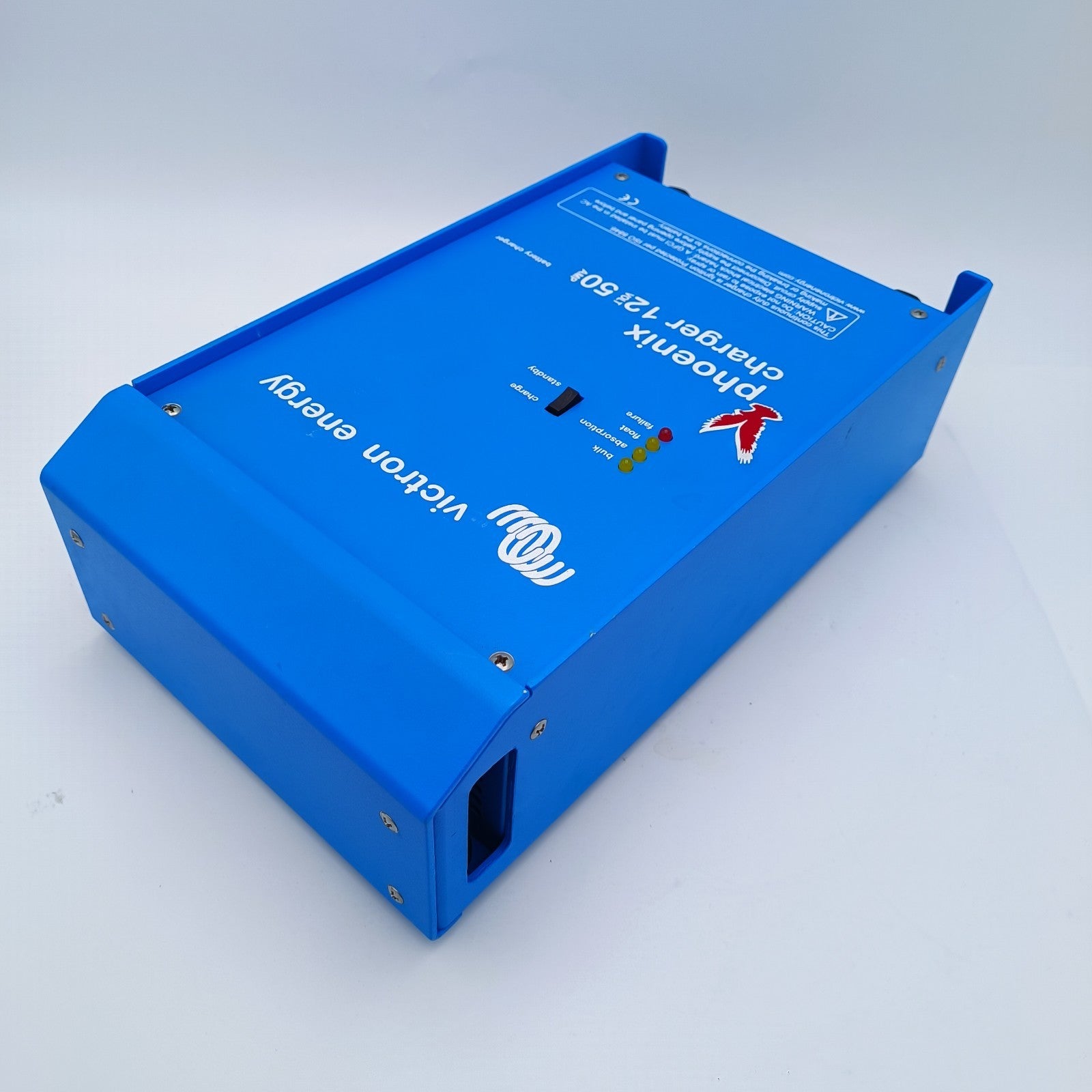

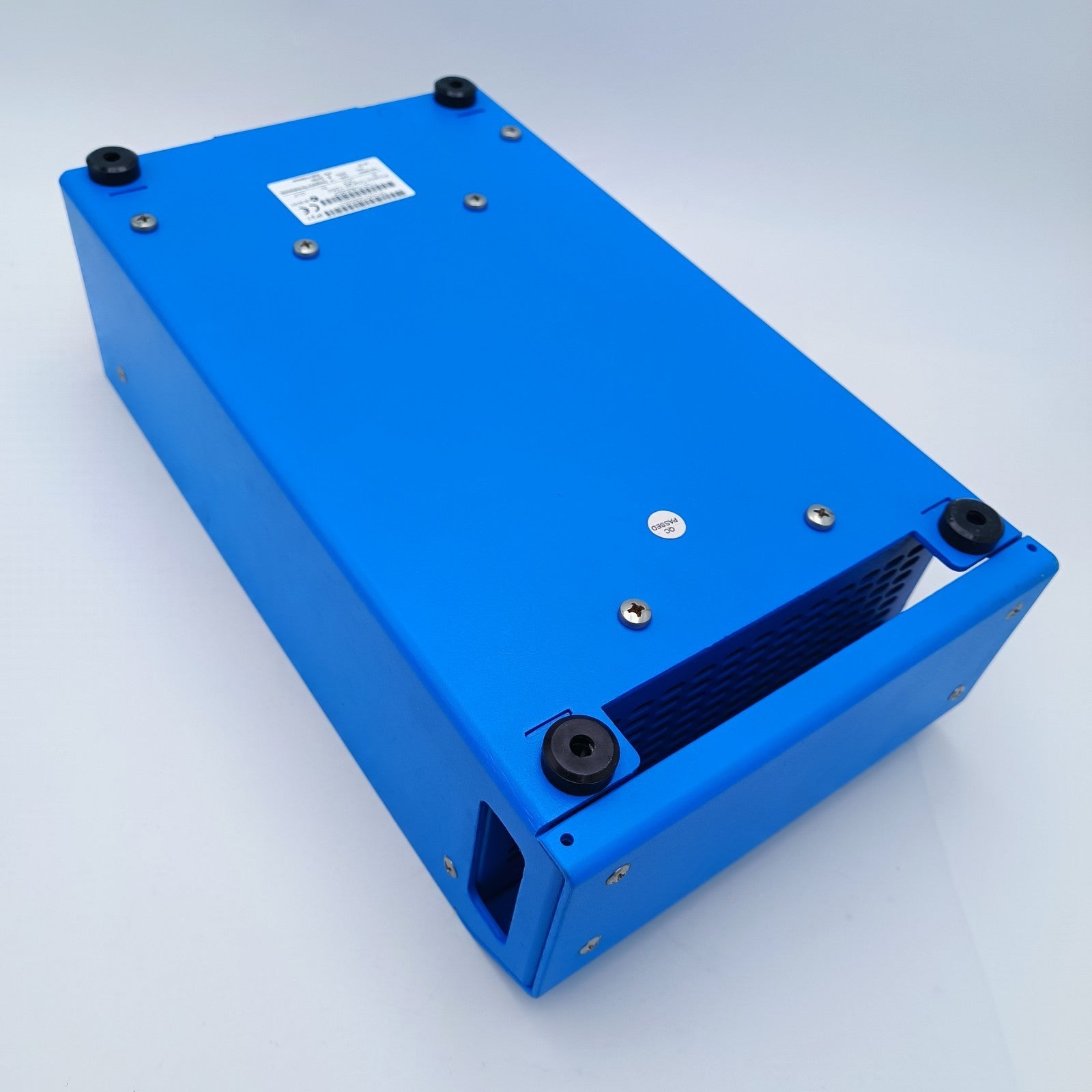

You will receive what you can see in the photos.

PCH012050001

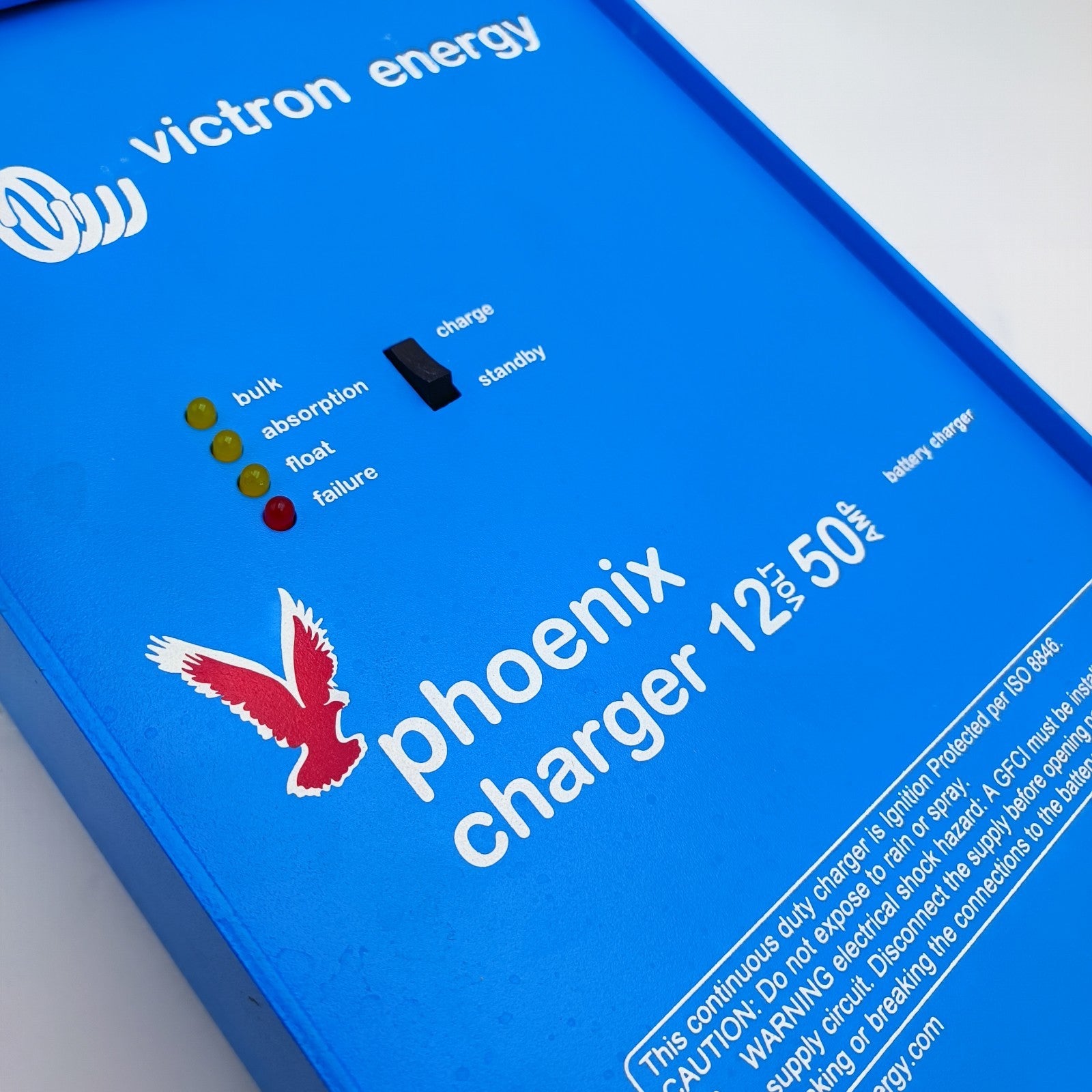

Adaptive 4-stage charge characteristic: bulk – absorption – float – storage

The Phoenix Charger features a microprocessor controlled ‘adaptive’ battery management system that can be pre-set to suit different types of batteries. The ‘adaptive’ feature will automatically optimise the process relative to the way the battery is being used.

The right amount of charge: variable absorption time

When only shallow discharges occur (a yacht connected to shore power for example) the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery is completely recharged.

Preventing damage due to excessive gassing: the BatterySafe mode

If, in order to quickly charge a battery, a high charge current in combination with a high absorption voltage has been chosen, the Phoenix Charger will prevent damage due to excessive gassing by automatically limiting the rate of voltage increase once the gassing voltage has been reached.

Less maintenance and ageing when the battery is not in use: the Storage mode

The storage mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the storage mode float voltage is reduced to 2,2 V/cell (13,2 V for 12 V battery) to minimize gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize’ the battery. This feature prevents stratification of the electrolyte and sulphation, a major cause of early battery failure.

Increased battery life: temperature compensation

Every Phoenix Charger comes with a battery temperature sensor. When connected, charge voltage will automatically decrease with increasing battery temperature. This feature is especially recommended for sealed batteries and/or when important fluctuations of battery temperature are expected.

Battery voltage sense

In order to compensate for voltage loss due to cable resistance, Phoenix Chargers are provided with a voltage sense facility so that the battery always receives the correct charge voltage.

Computer interface

Every Phoenix Charger is ready to communicate with a computer through its RS-485 data port.

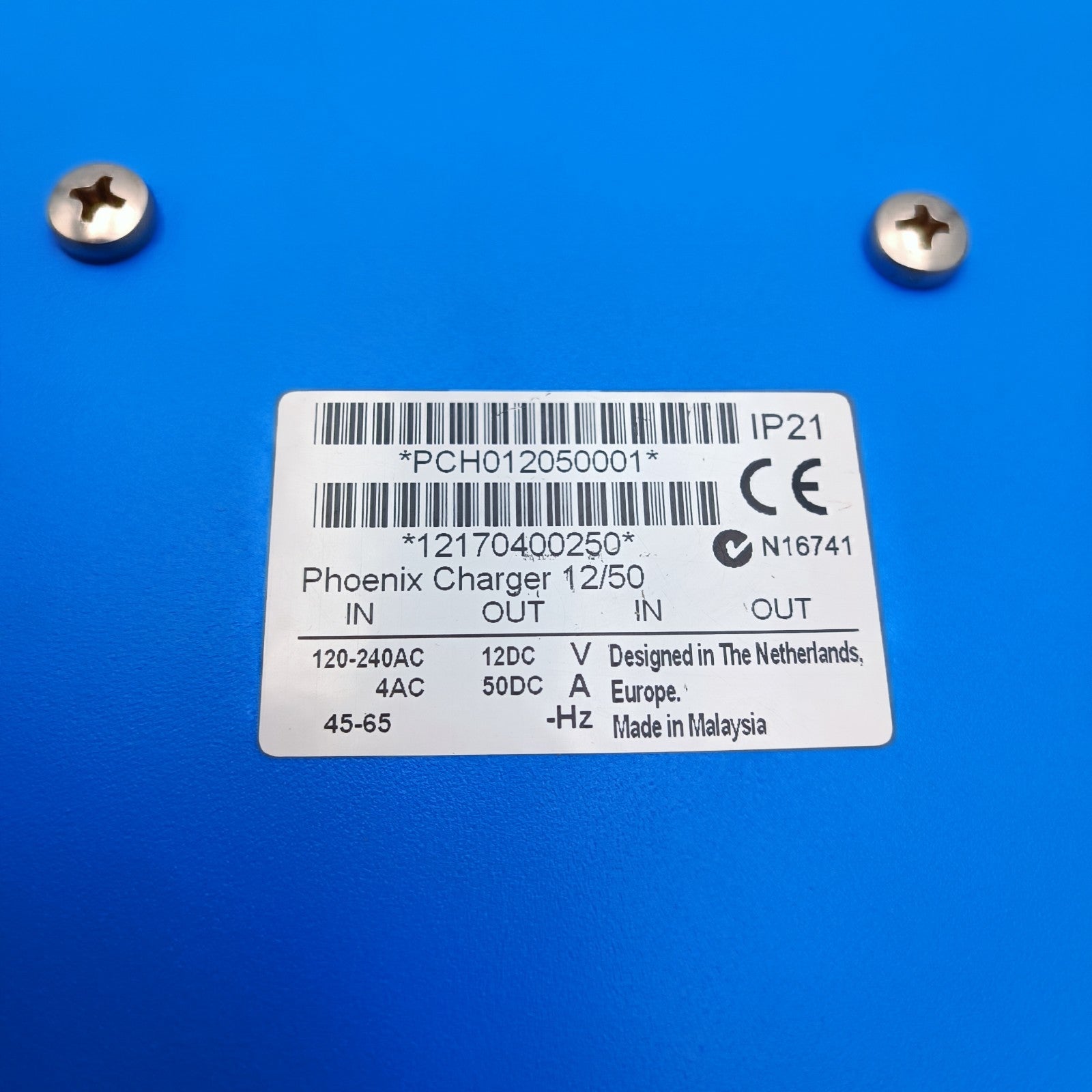

Part Number : PCH012050001

Manufacturer : Victron Energy

Charger Application : Leisure

DC Voltage : 12V

Power Ah :

Frequency (Hz) : 45-65 hz

Input Voltage :

Battery Capacity :

Number Of Outputs :

Waterproof :

Charge Current (A) : 50

Remote Control : Optional

Length (Mm) : 200

Width (Mm) : 108

Height Inc Terminals (Mm) : 350

Manufactured Weight (Kg) : 3.8Professionally refurbished with full warranty.
