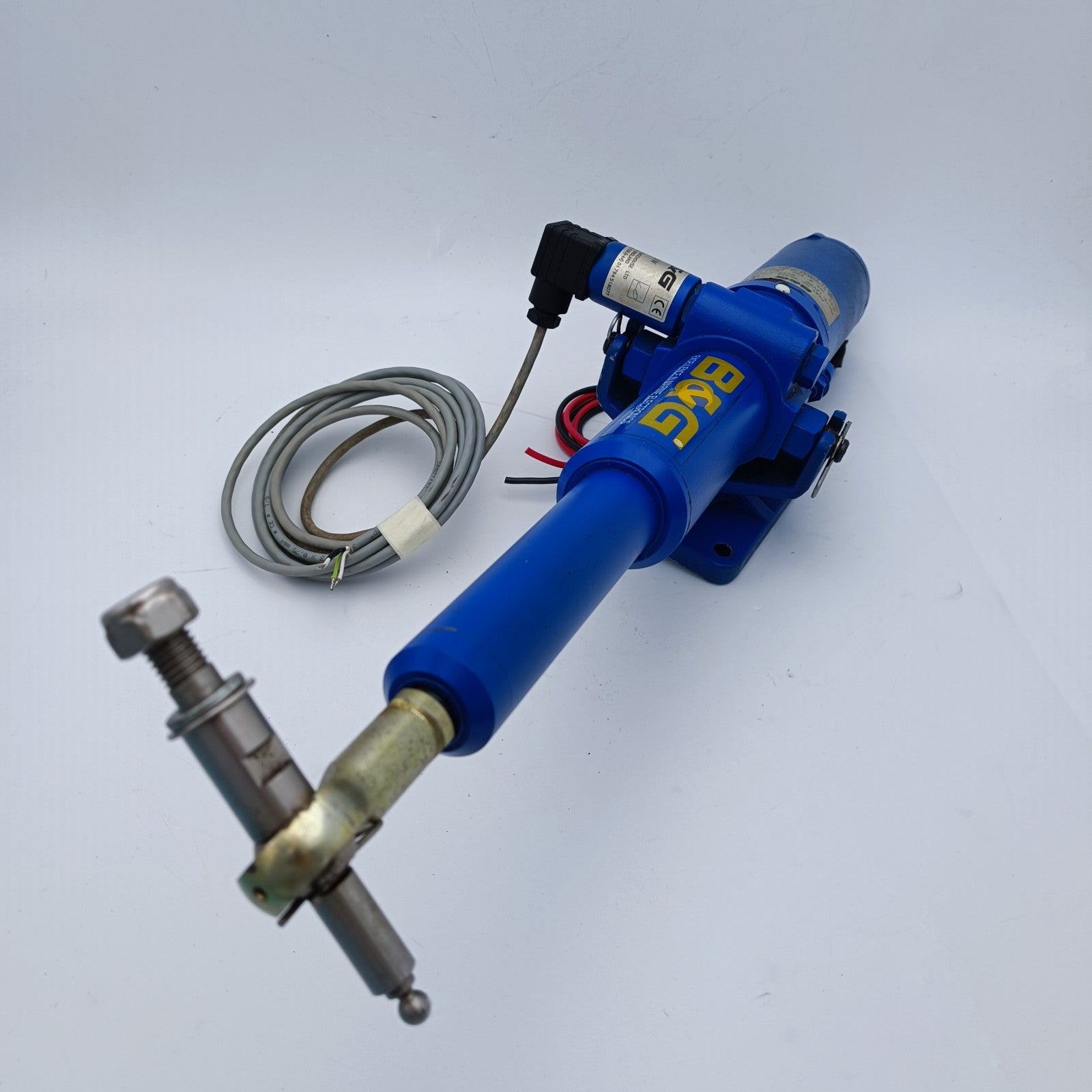

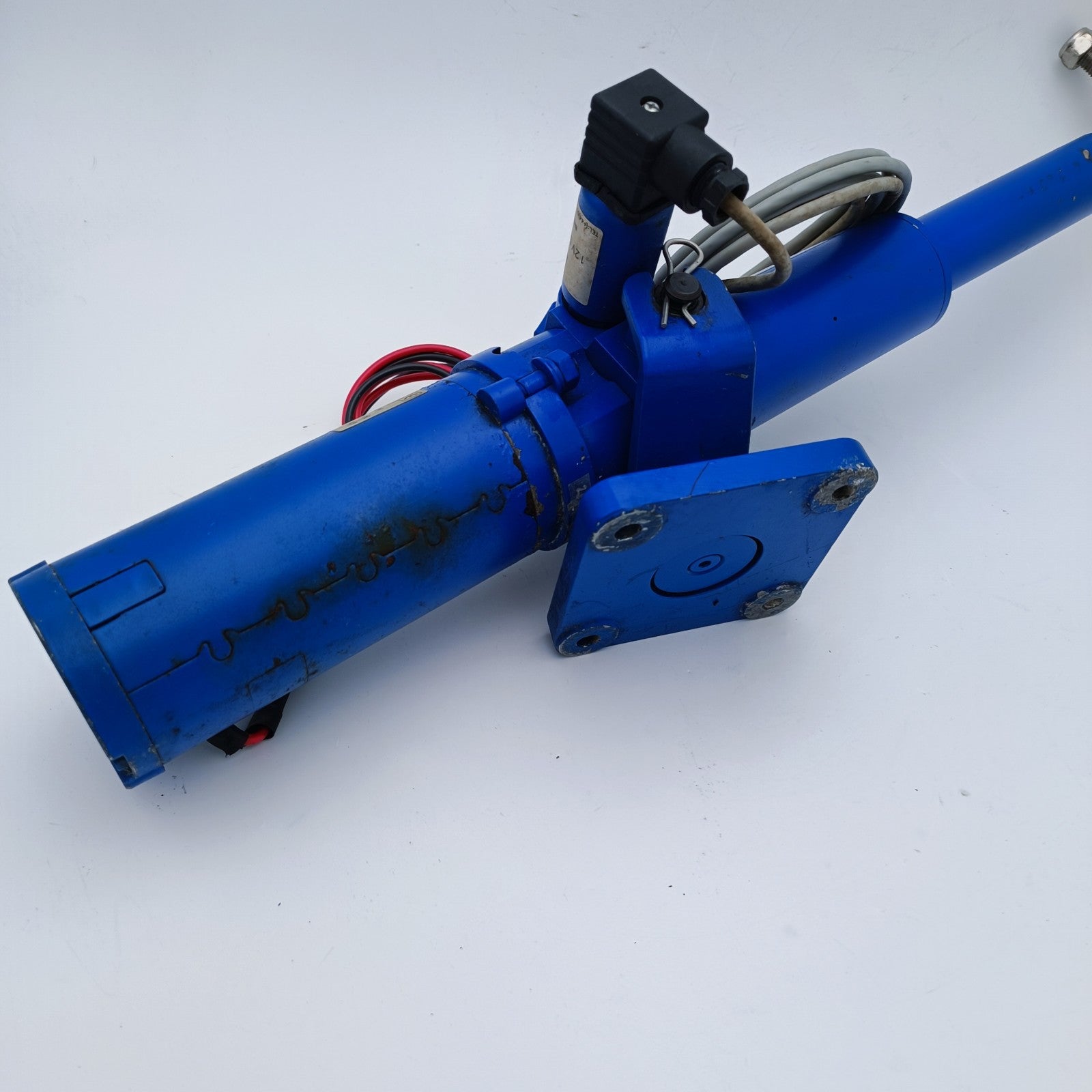

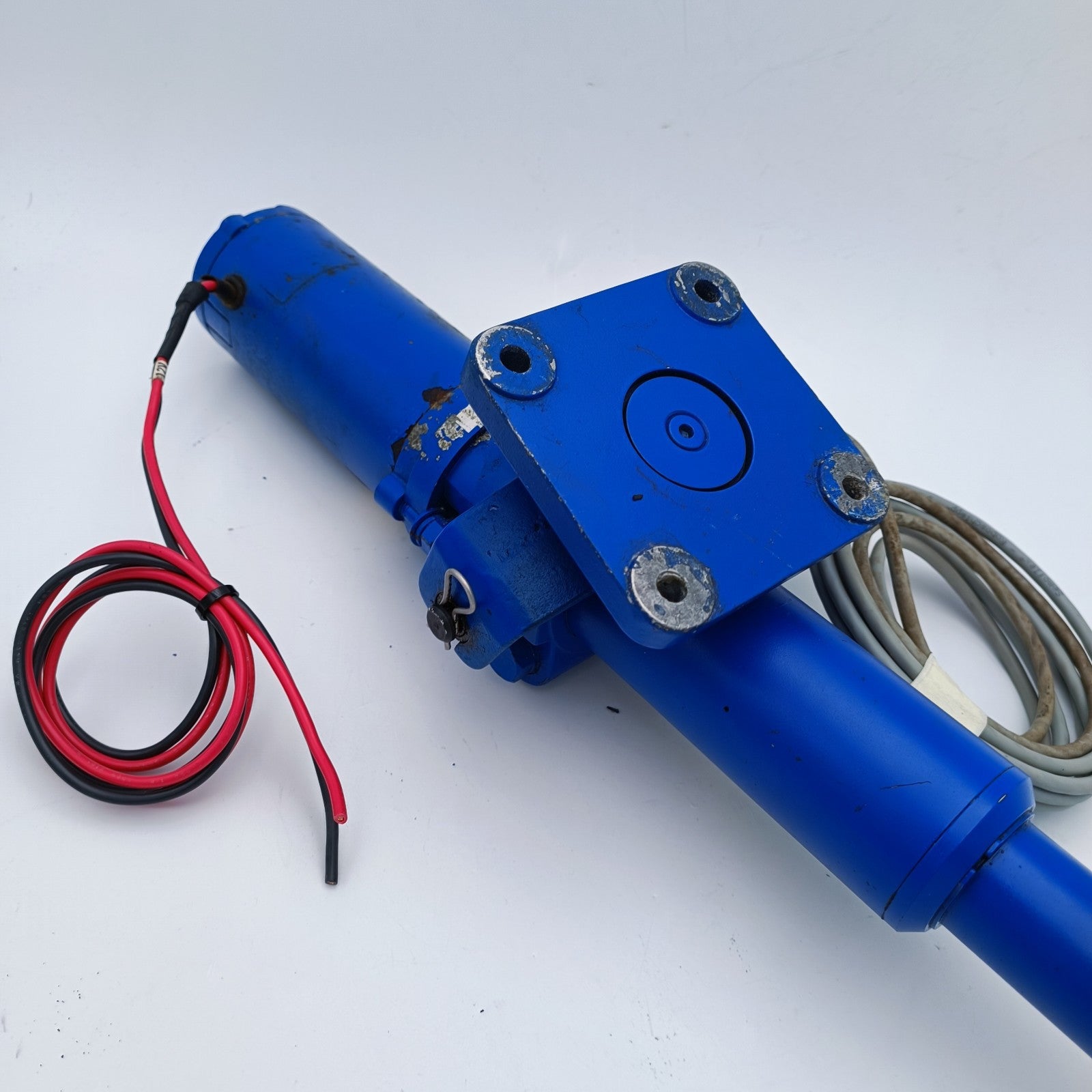

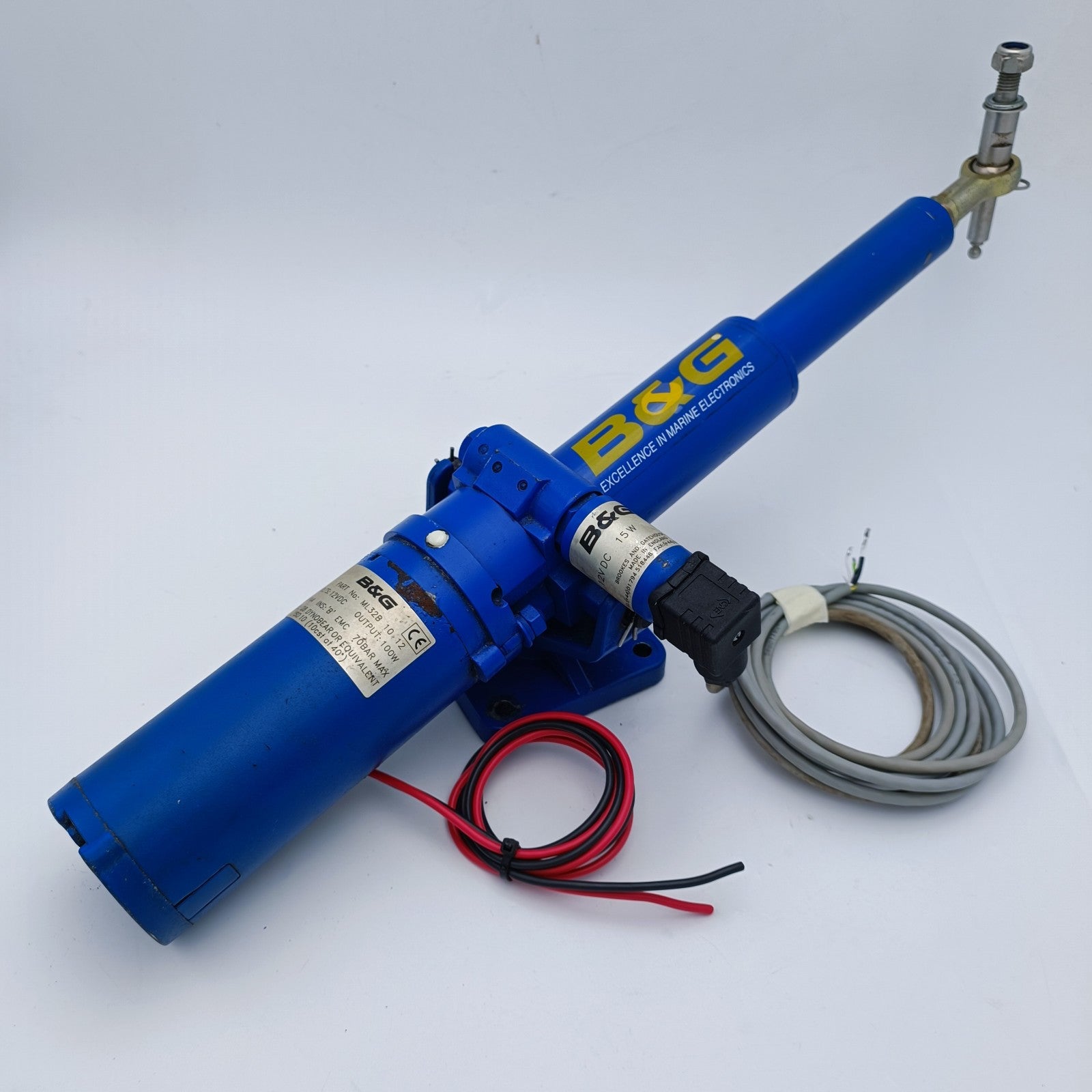

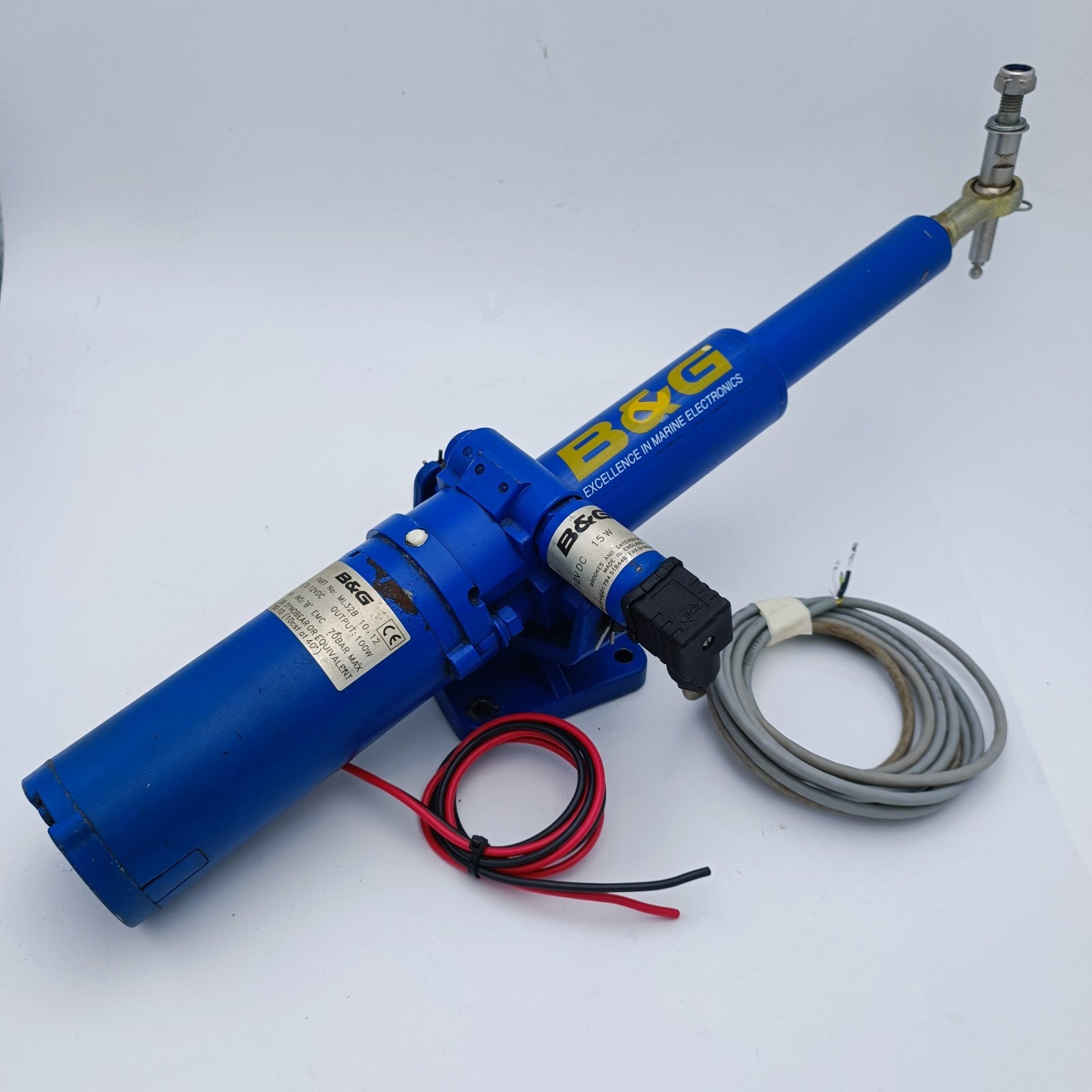

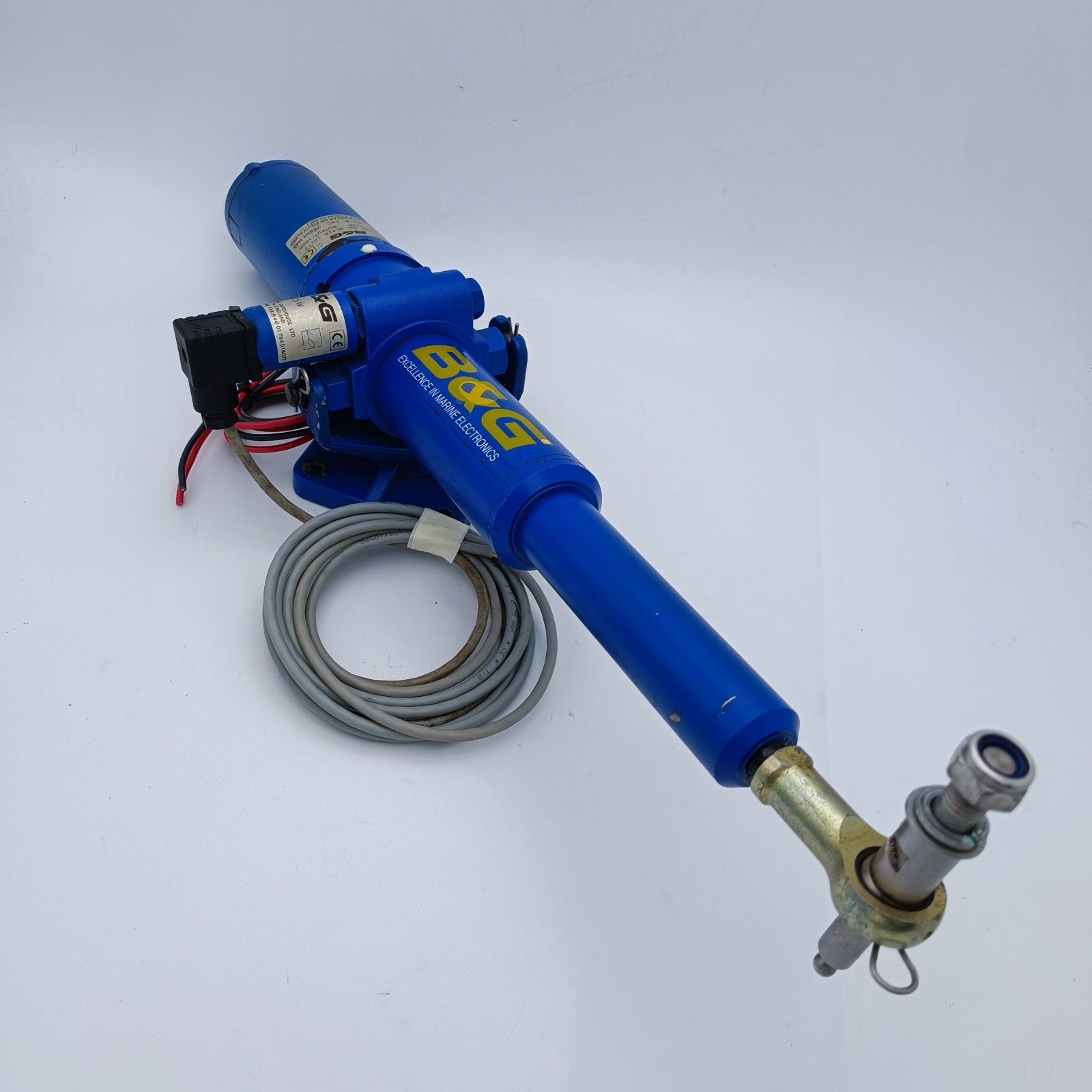

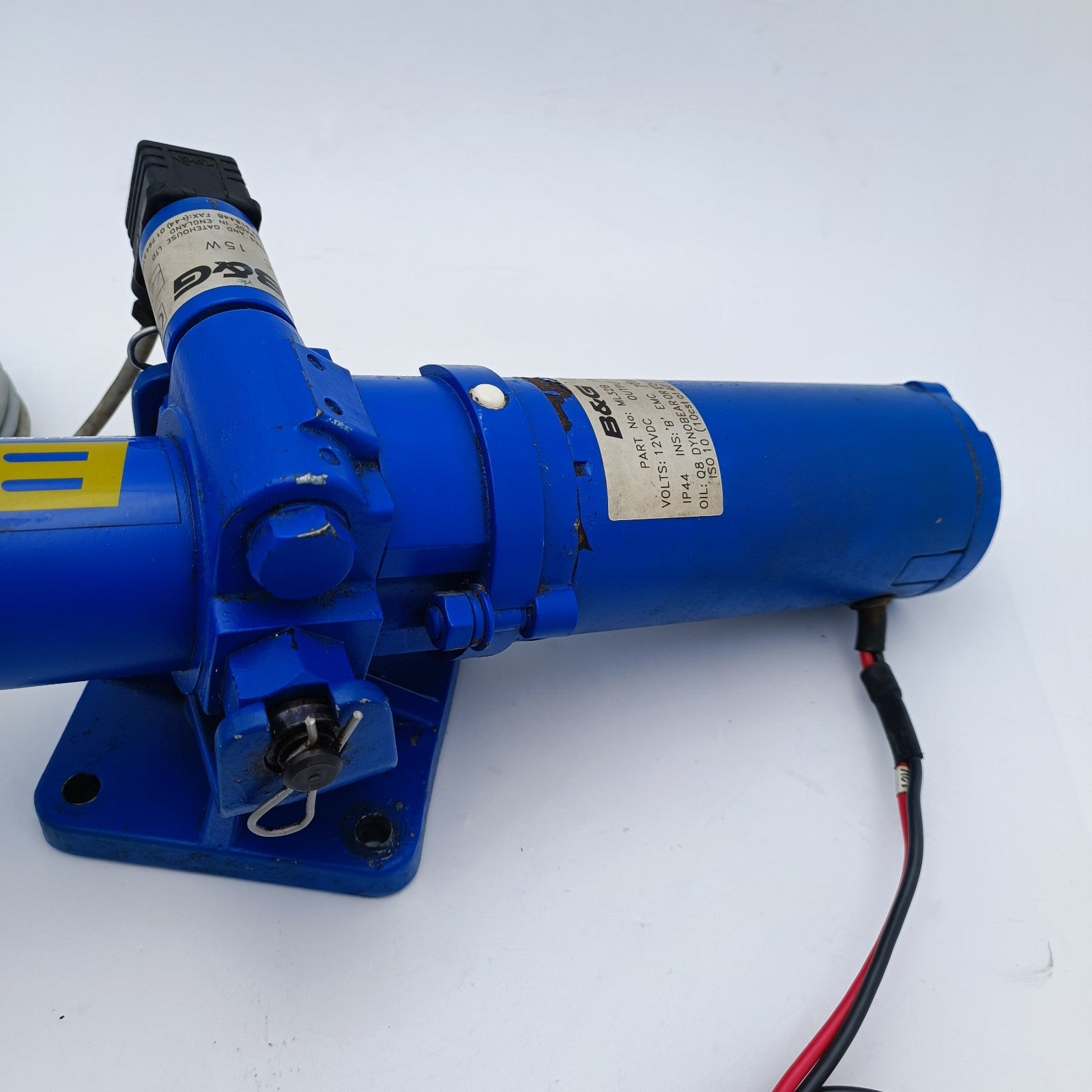

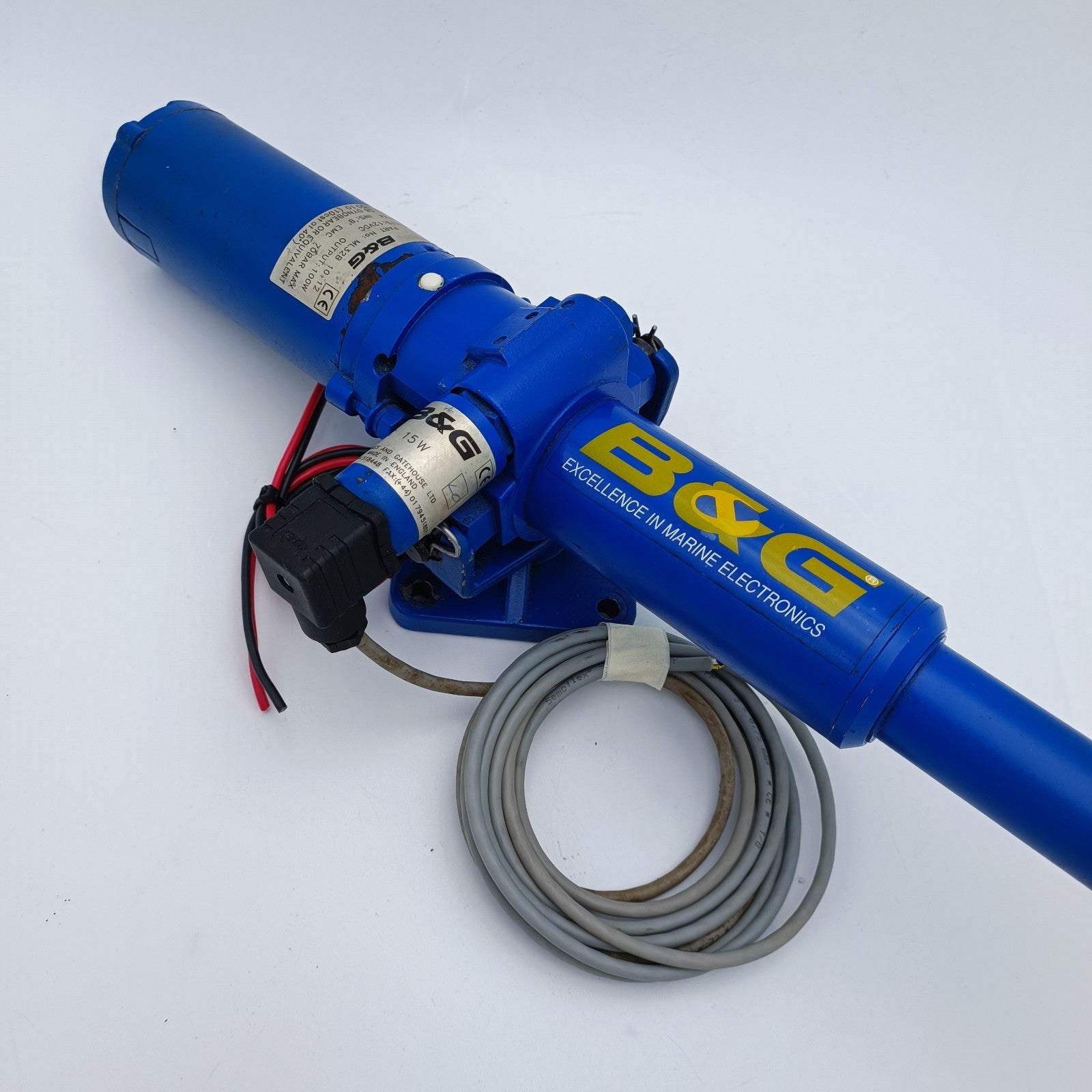

B&G RAM-T2-12V Type 2 Autopilot Linear Drive 12V 24V 30” Hydraulic Pilot Ram
- Type 2 Linear Drive 100W 12V 24V 30” Aluminum Hydraulic Pilot Ram
- Length: 30”
- Protection: IP44
- Rotation: Reversing

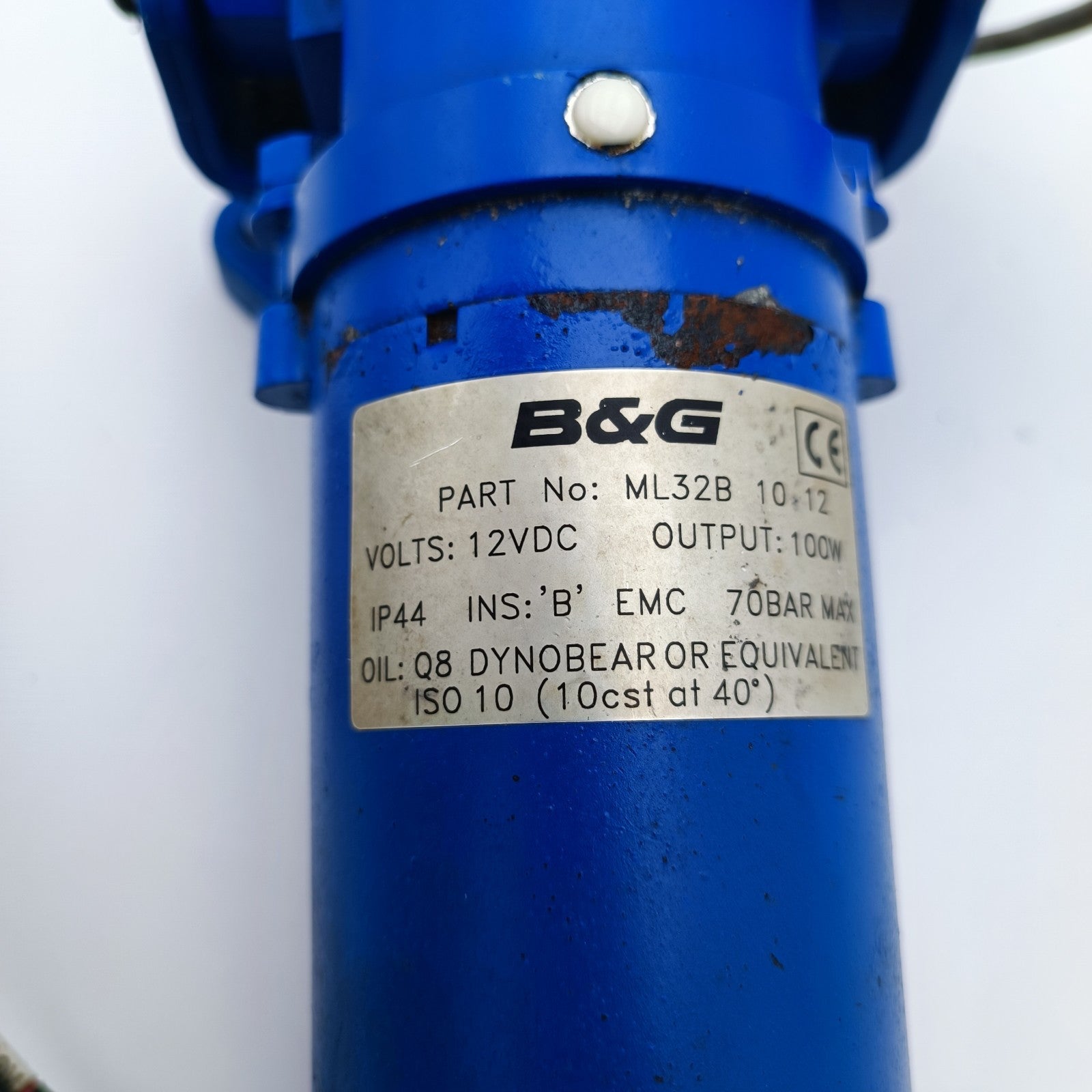

- Motor Power: 100W
- Seals: Nitrile and PTFE
- Connection: DIN 43650
- Body Protection: SP270
- Body: Aluminum BS 1490
- Relief Valve Setting: 62 bar
- Nominal Voltage: 12/24 VDC

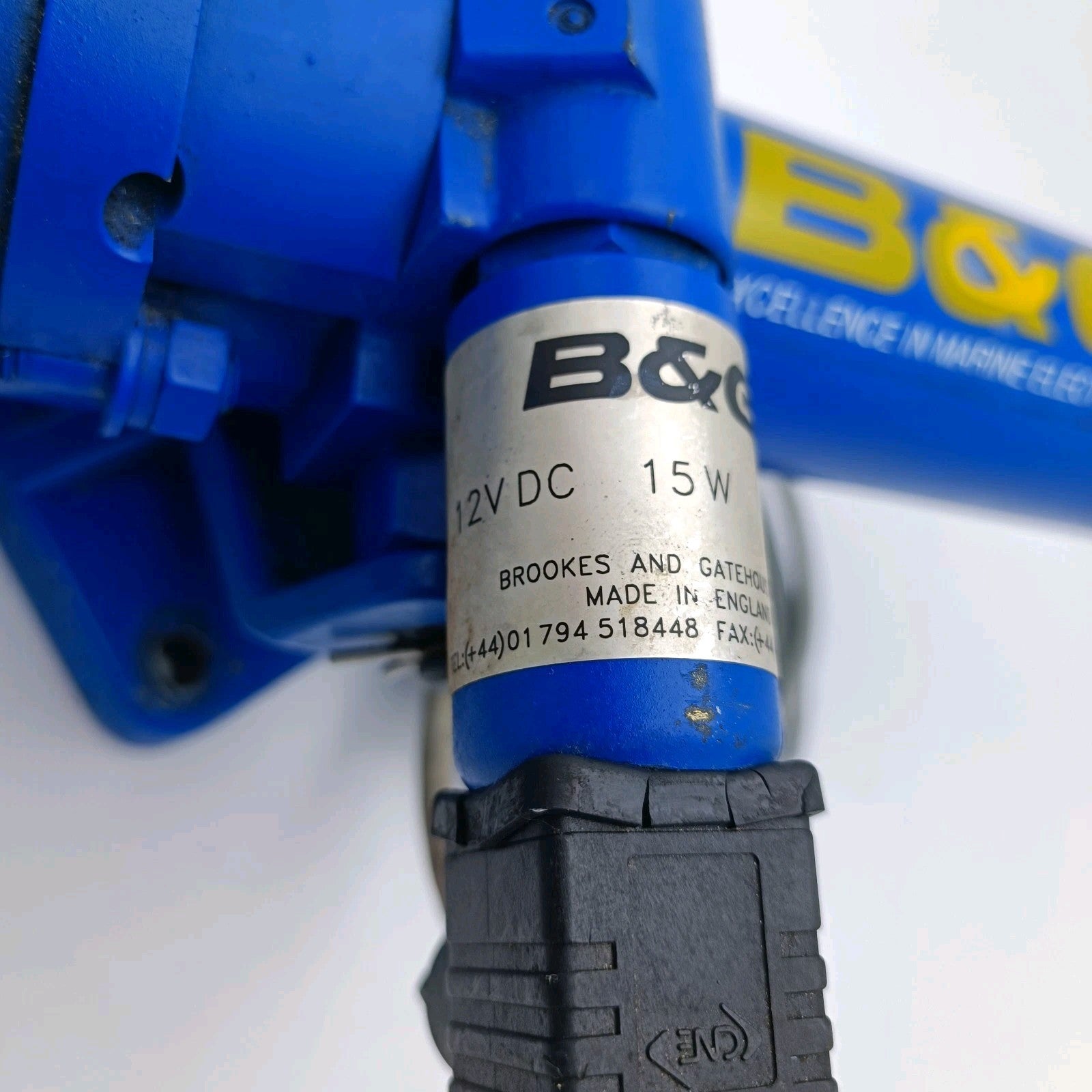

- Coil Power (Continuous): 12W
- Maximum Current @ 12V: 22.5A
- Maximum Current @ 24V: 11.2A

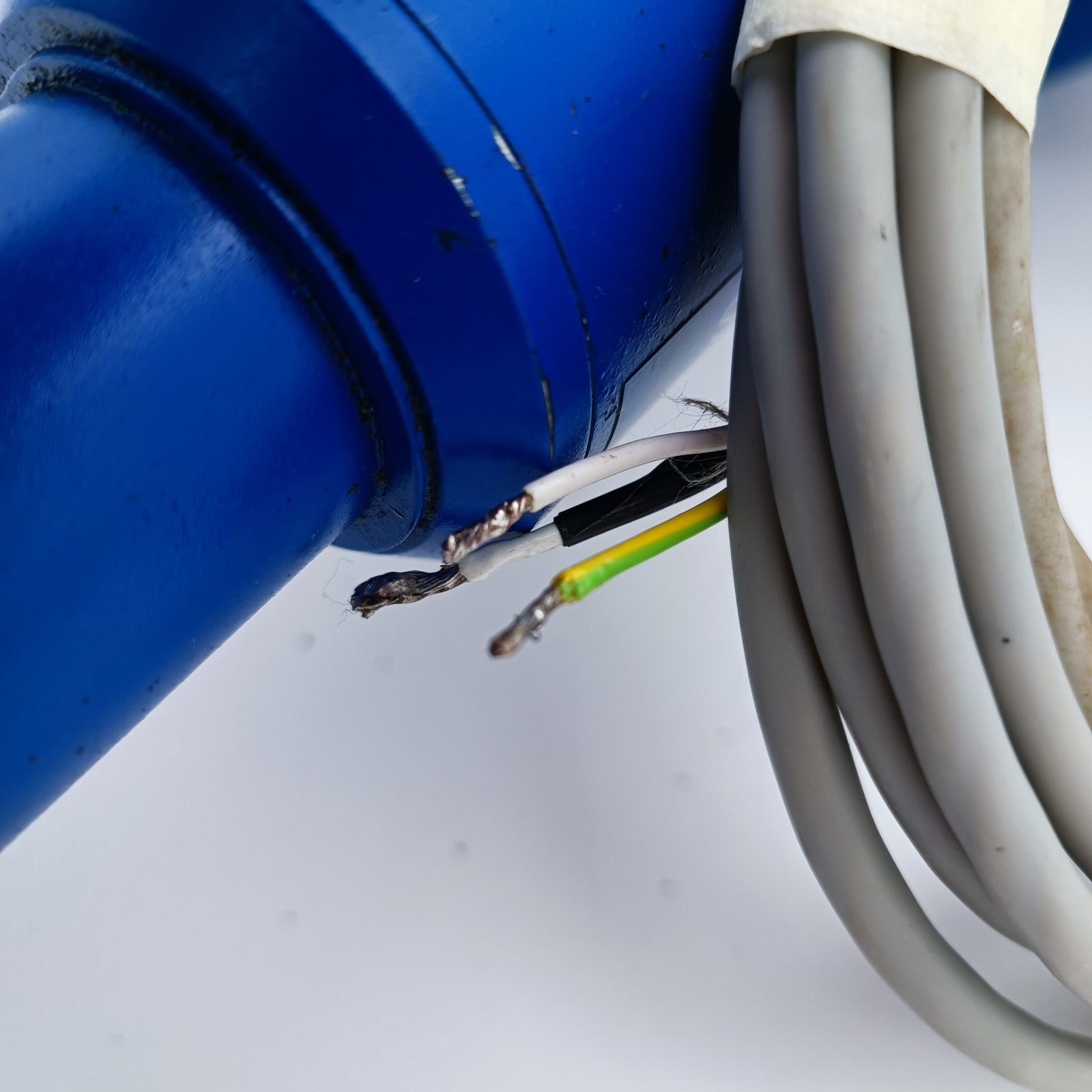

- Connection: 1m 2 Core Flying Lead
- Back-drive at 12 sec Hard-over: 7 kg
- Minimum Temperature Rating: -20ºC
- Maximum Temperature Rating: +65ºC
- Maximum Thrust (Intermittent): 675 kg
- Ignition Protection: BS EN 28846:1993
- Hard Over Time Nominal RAM-T2: 9 sec

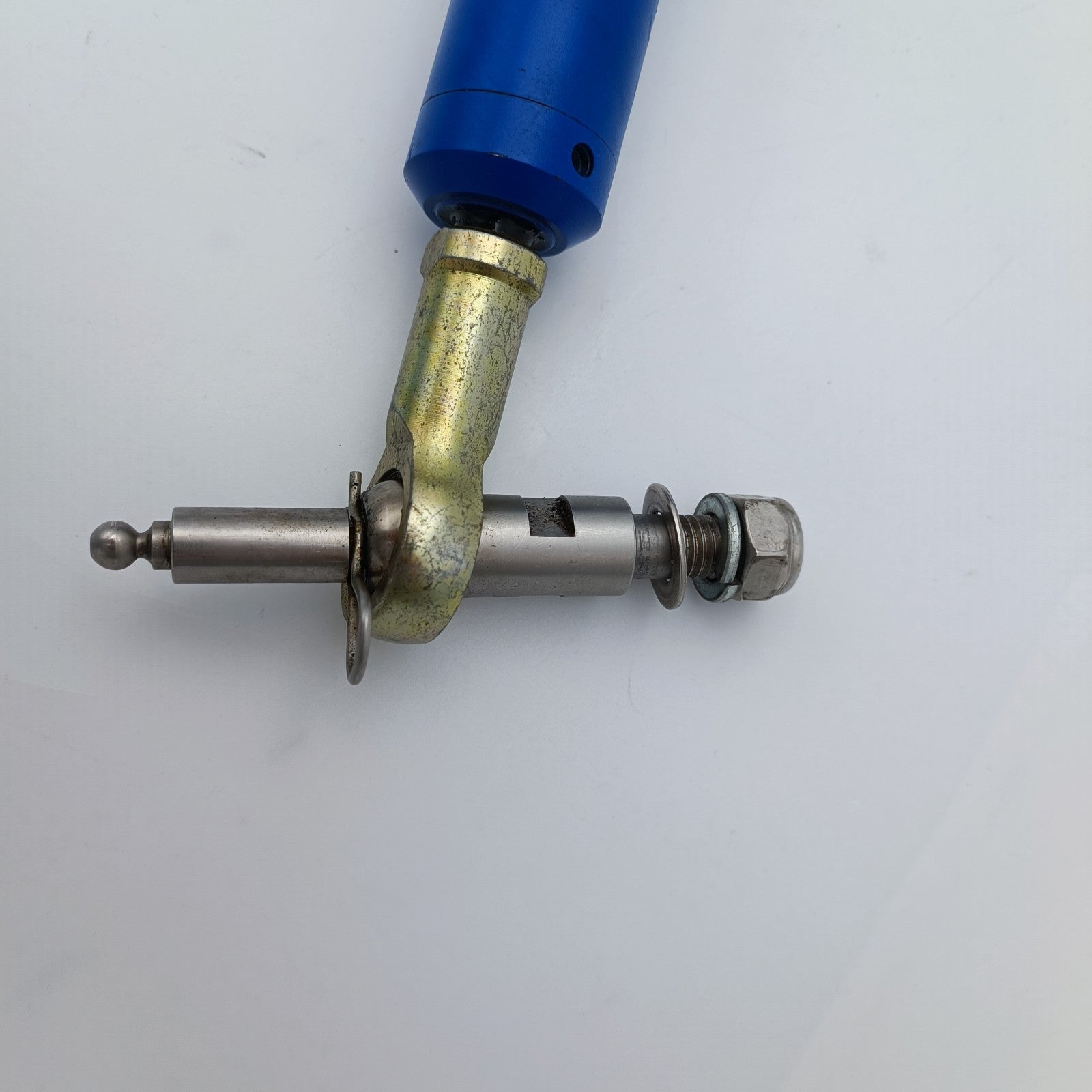

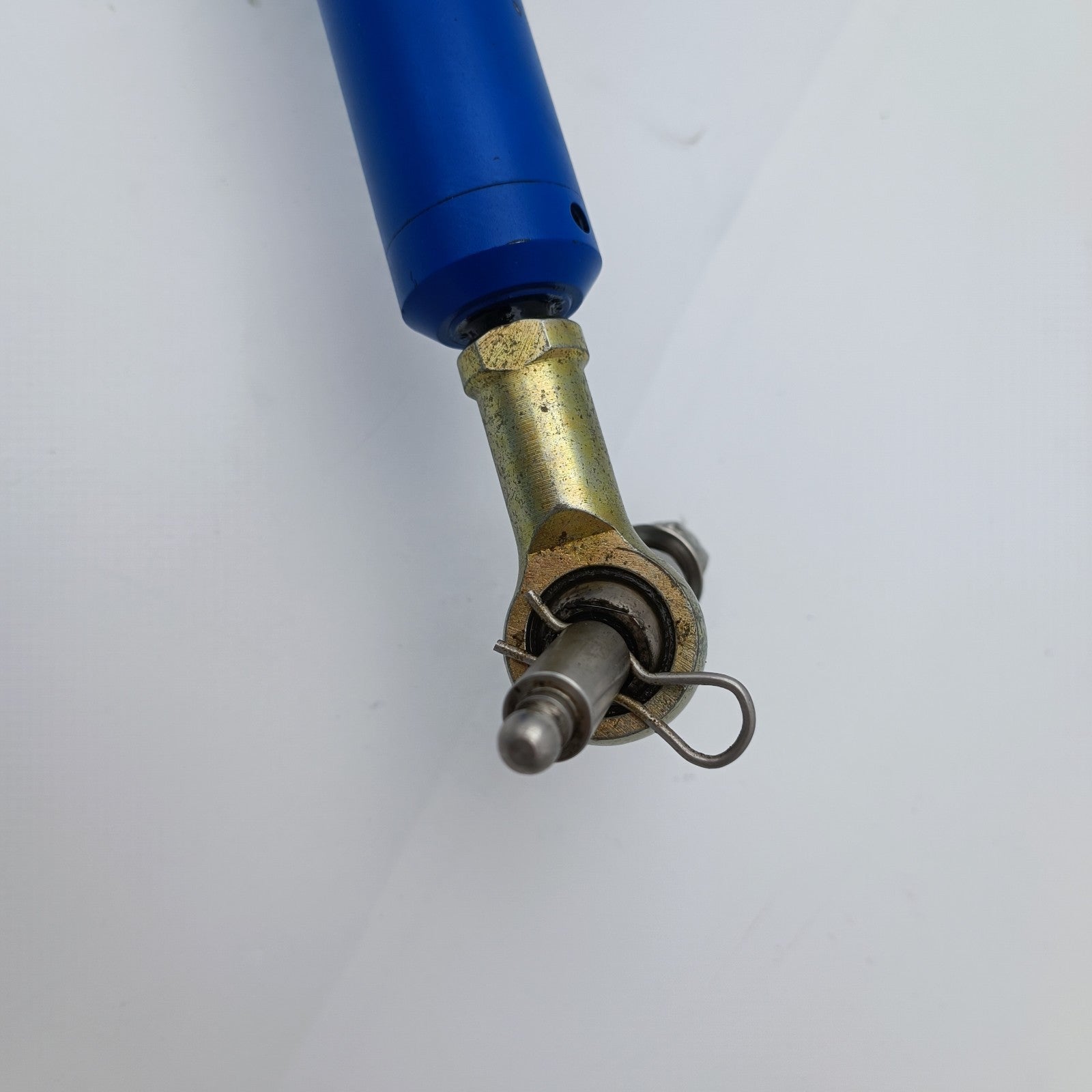

- Piston Rod: Chrome Plated Stainless Steel
- Manufacturer: B&G
- Model Number: Pilot Ram
- PN: RAM-T2-12V
- RAMT212V
You will receive the same item as in the photos.
