Garmin GPSMAP 8616xsv Touchscreen Chartplotter System Set Glass Cockpit 8616 xsv 010-02093-51
Like new with full warranty.
******

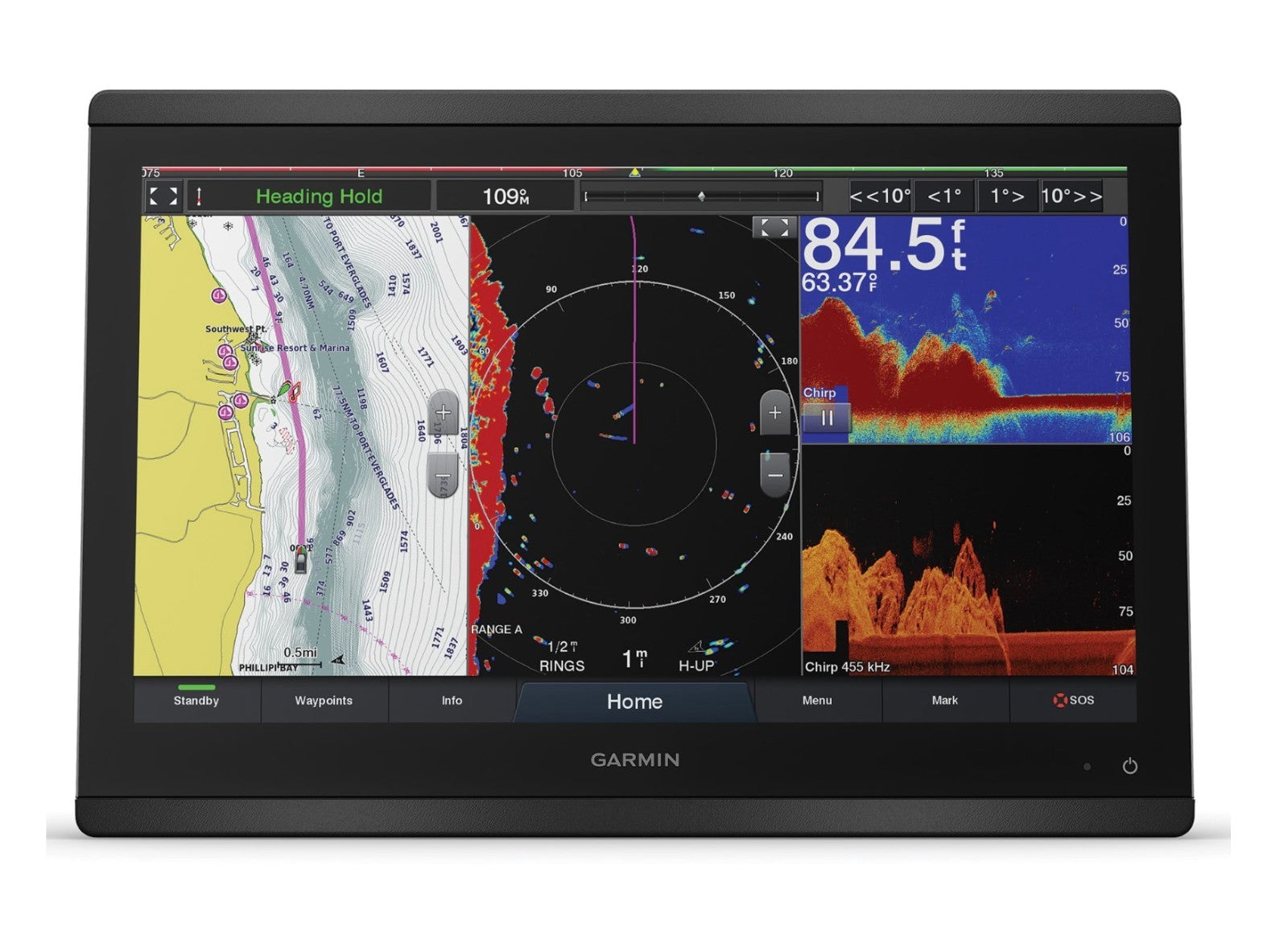

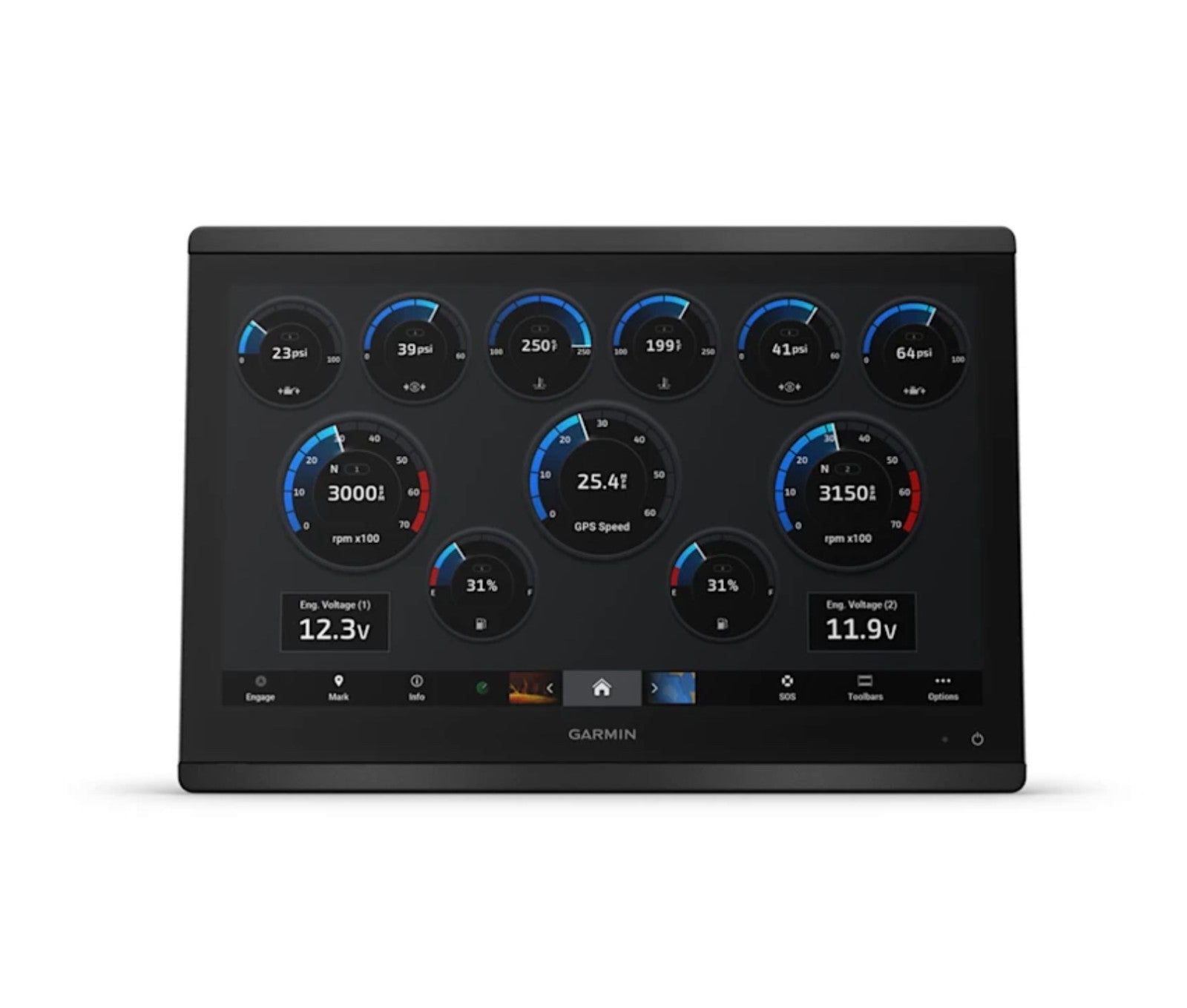

Garmin GPSMAP 8616xsv
The Garmin GPSMAP 8616xsv is a powerful 16-inch chartplotter and sonar combo designed for professional anglers, cruisers, and sailors who need top performance and seamless connectivity on the water.
Display and Visuals
-
16-inch Full HD IPS touchscreen for wide viewing angles and excellent sunlight readability.
-
Multiple mounting options: flush, flat glass helm, or bail mount.
Navigation and Charting
-
Preloaded with BlueChart g3 coastal charts and LakeVü g3 inland maps with Navionics data.
-
Auto Guidance suggests safe routes based on your boat’s specs.
-
Supports Vision+, Ultra, and other Garmin map upgrades.
-
Manages up to 5,000 waypoints, 100 routes, and detailed track logs.
Sonar and Fishfinding
-

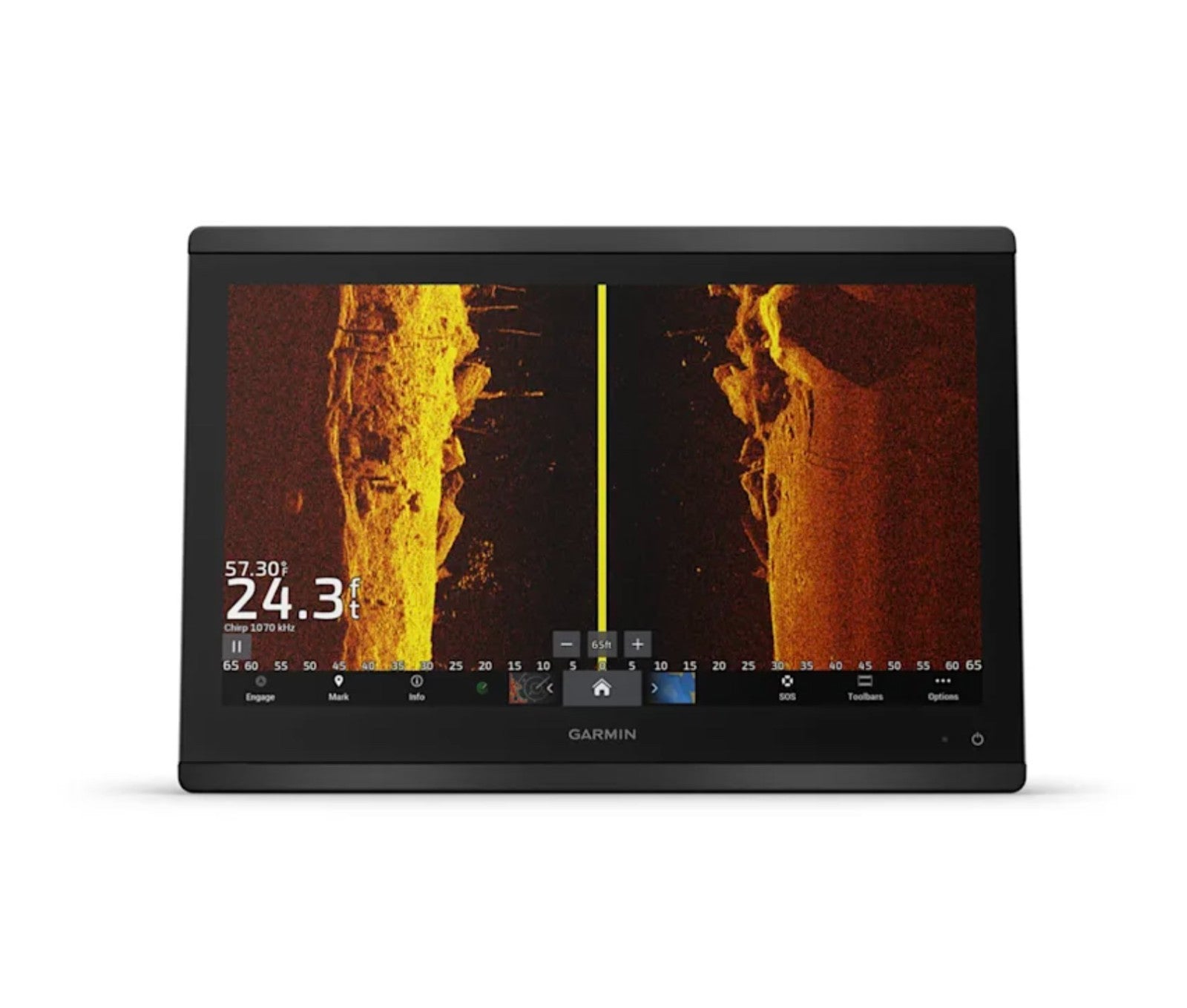

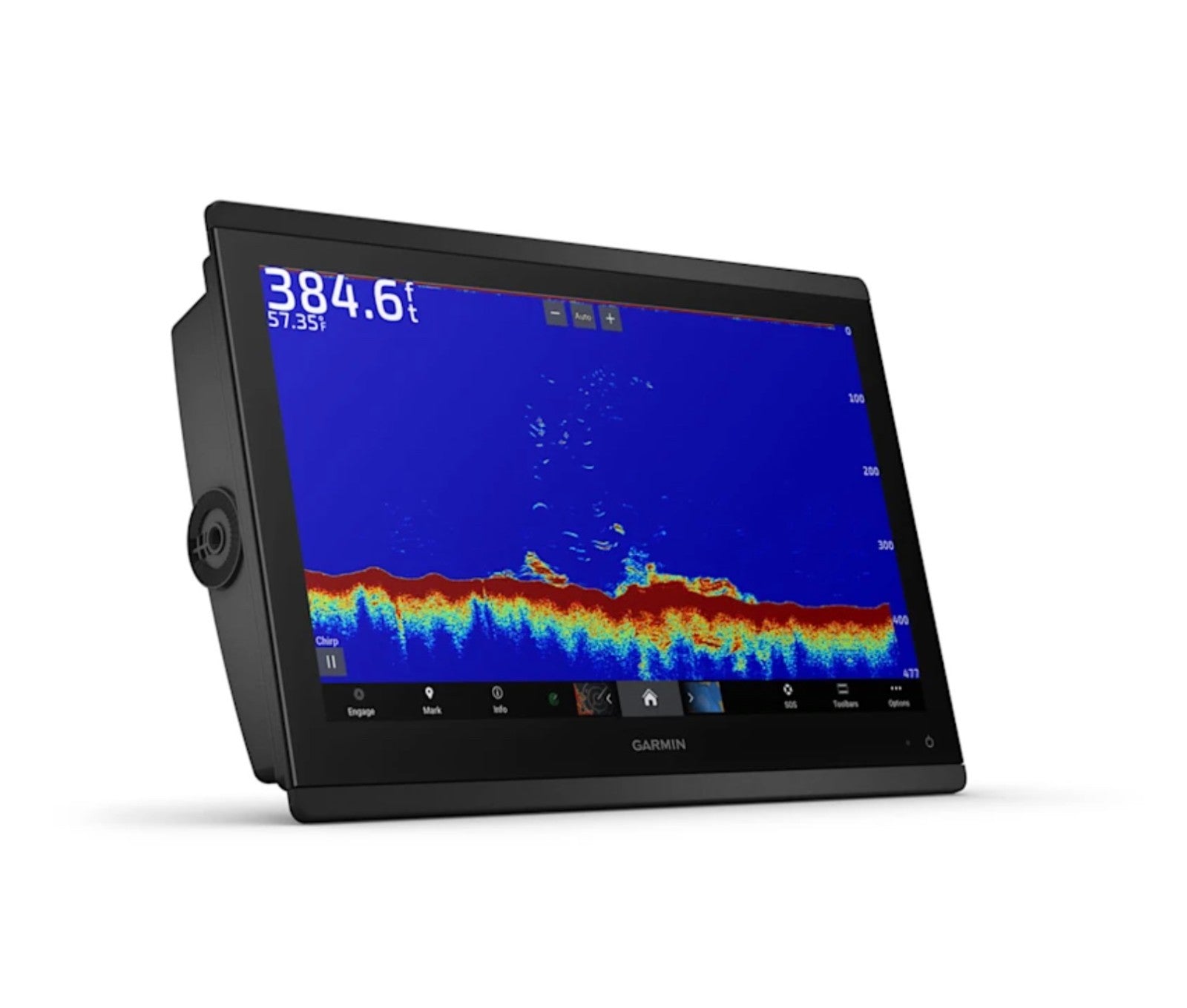

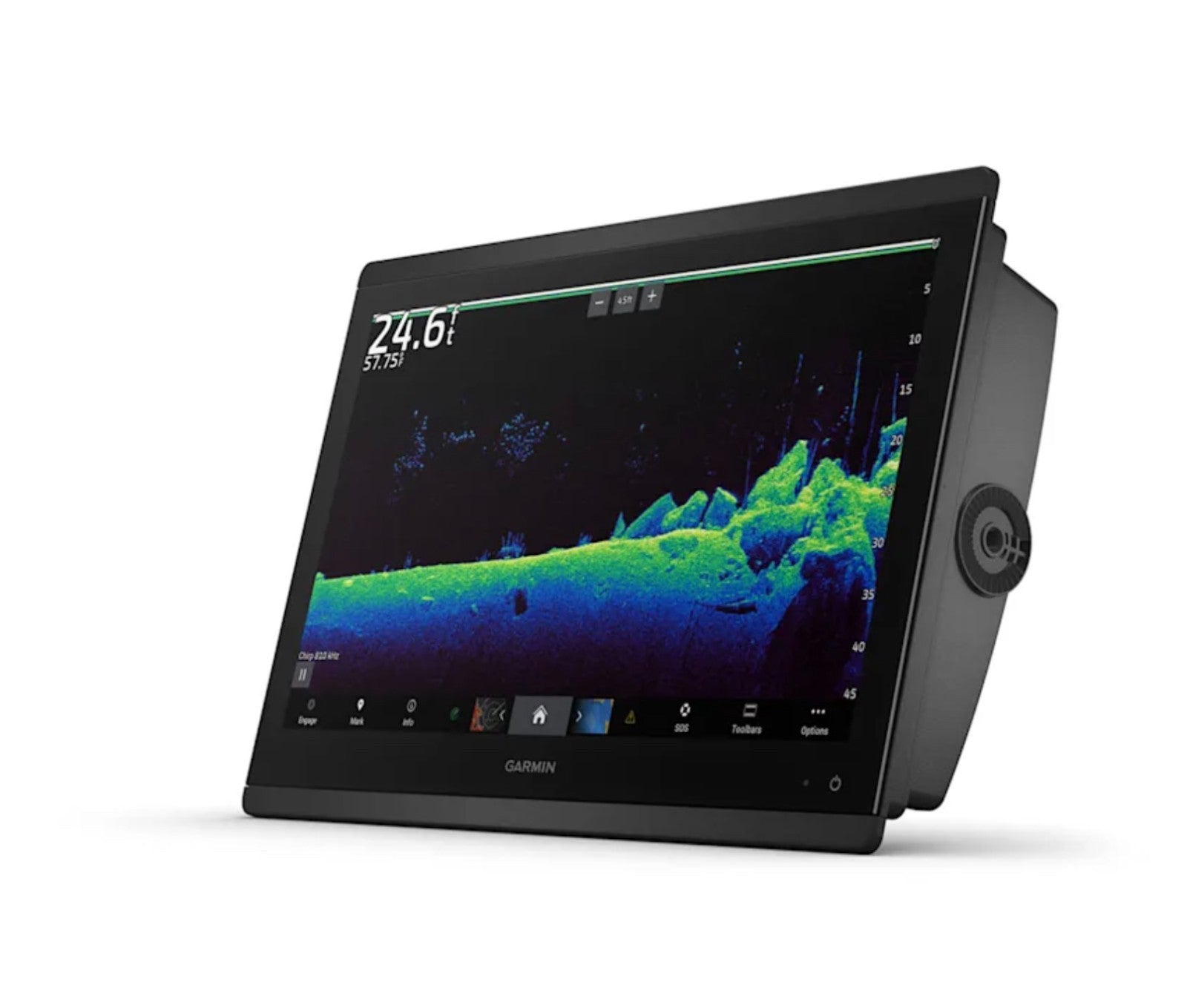

Built-in sonar with dual-channel CHIRP traditional (1 kW), CHIRP ClearVü, CHIRP SideVü, and UHD scanning sonar.
-
Compatible with Panoptix and LiveScope live sonar systems (transducers sold separately).
-
Maximum depth capability up to about 5,000 feet (depending on conditions and transducer).
Connectivity and Networking
-

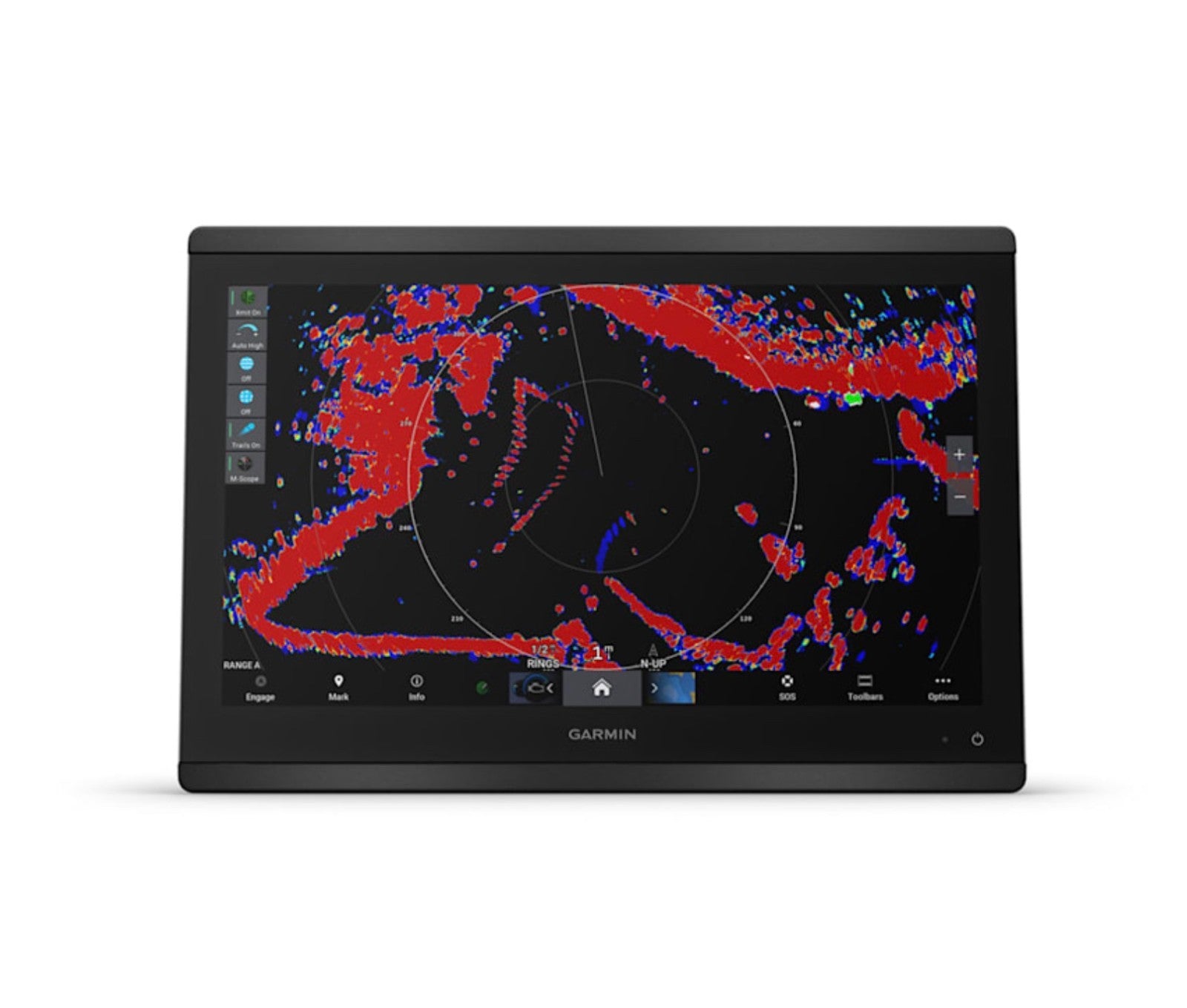

Dual Garmin Marine Network ports and NMEA 2000 support for radar, AIS, autopilot, and sensors.
-
Built-in Wi-Fi for use with the ActiveCaptain app to manage maps, notifications, and data sharing.
-
ANT+ support for compatible devices like Garmin watches and sensors.
-
Includes HDMI and BNC video ports for camera and display integration.
Sailing and Special Features
-
SmartMode controls for preset display layouts (fishing, cruising, docking, etc.).
-
OneHelm integration allows control of third-party onboard systems such as lighting and pumps.
-
SailAssist tools include laylines, wind data, pre-race guidance, and virtual start lines.
Specifications
-
Dimensions: approximately 15.1" x 10.3" x 3" (38.5 x 26.3 x 7.6 cm).
-
Weight: about 9.6 lbs (4.4 kg).
-
IPX7 water-resistant rating.
-
Power consumption: about 4.2 A (10–32V supply).
-
10 Hz GPS/GLONASS/Galileo receiver for accurate positioning.
-
Dual microSD card slots for maps and data.
-

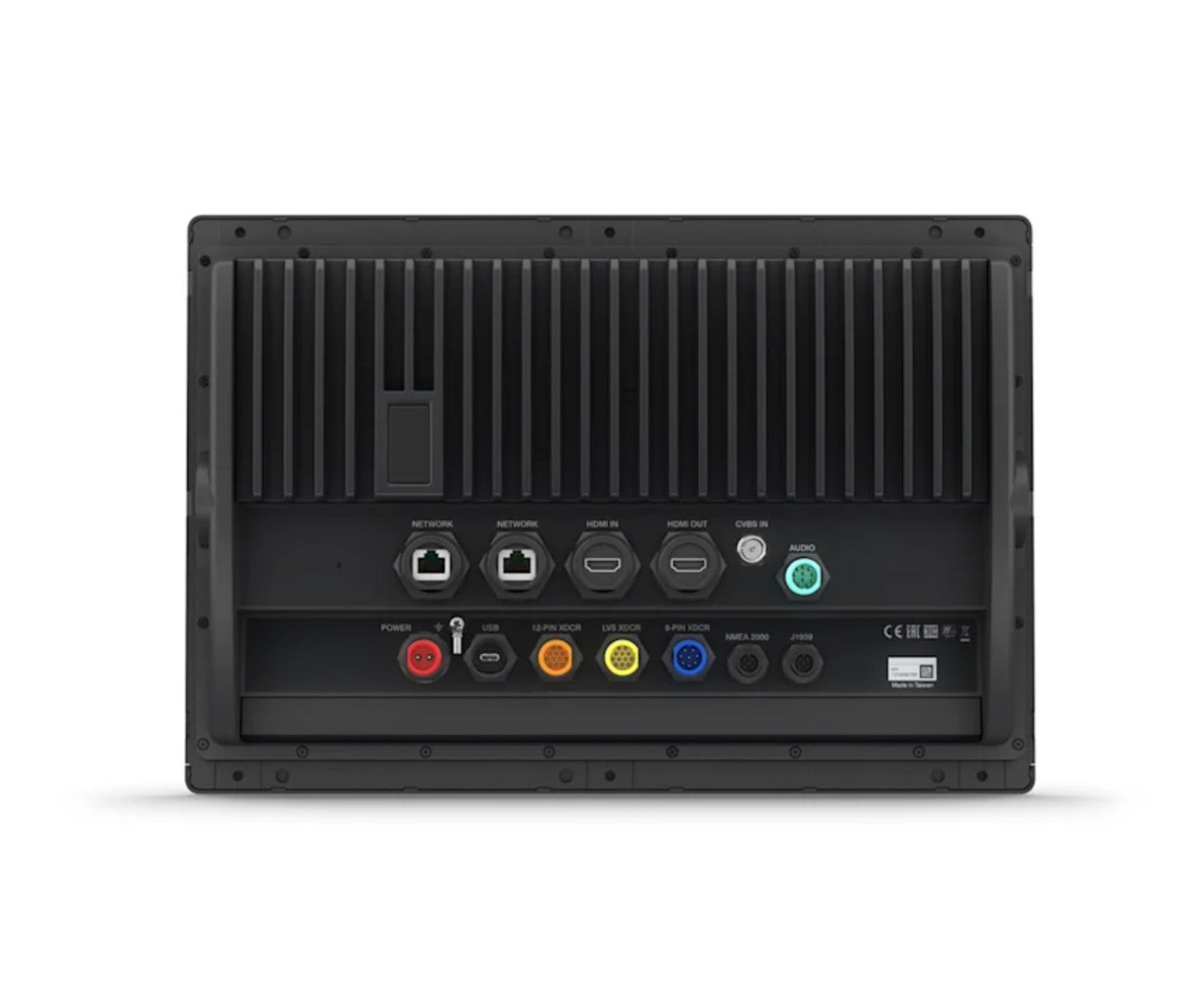

Ports: NMEA 0183, video input/output, HDMI, sonar transducer connectors (12-pin, 8-pin, LVS).
Firmware and Updates
-
Garmin regularly updates software (version 39.01 as of March 2025) with new features and performance improvements.
