Works perfectly, fully tested with guarantee. Low hour magnetron is fitted.

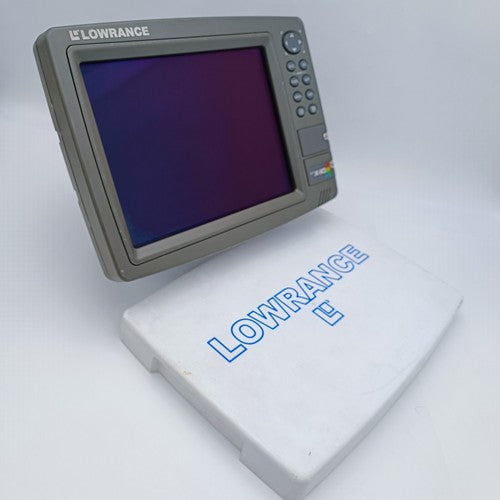

Works with several different Koden, Si-Tex, Lowrance chartplotters, Standard Horizon, etc.
Very compact and light. Perfect for small fishing boat, motor boat, or sailboat.

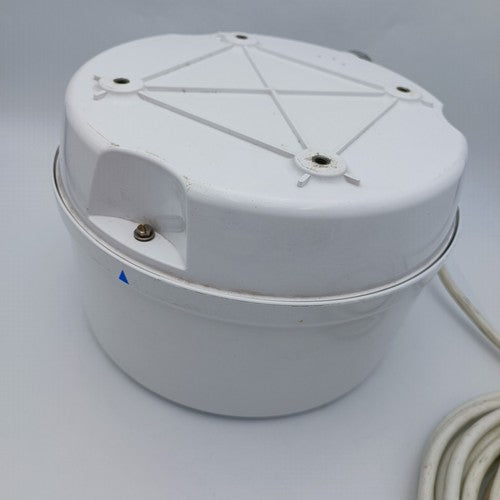

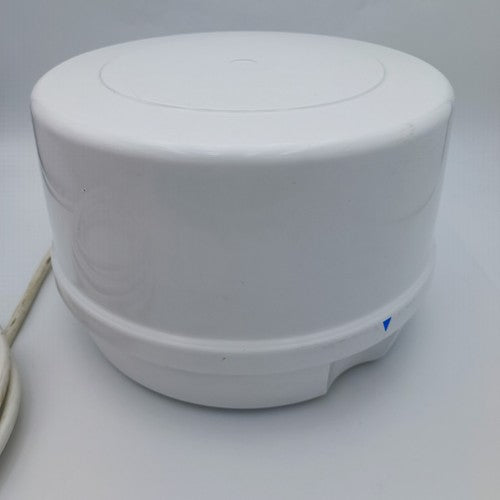

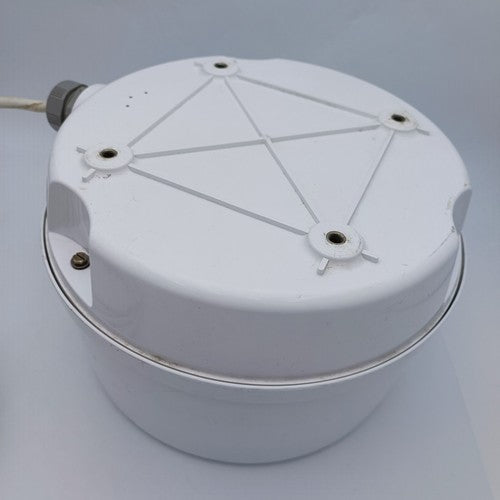

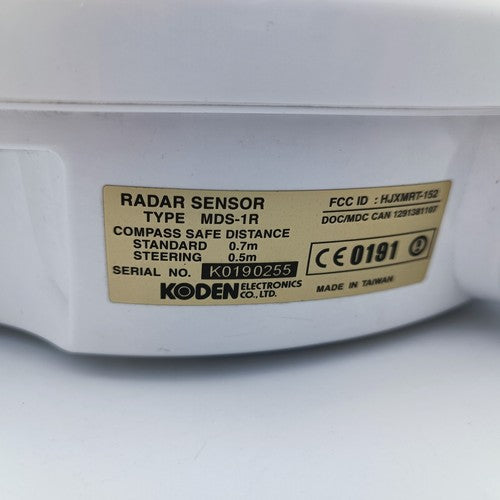

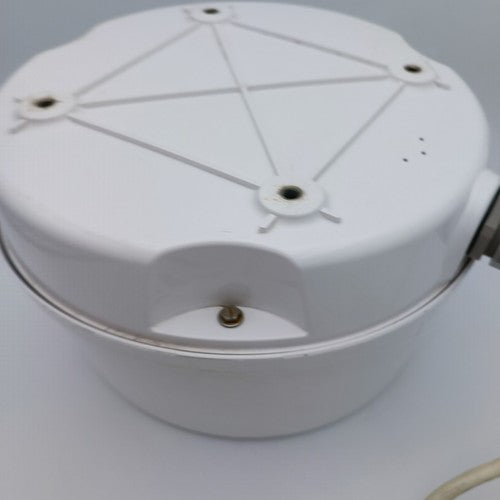

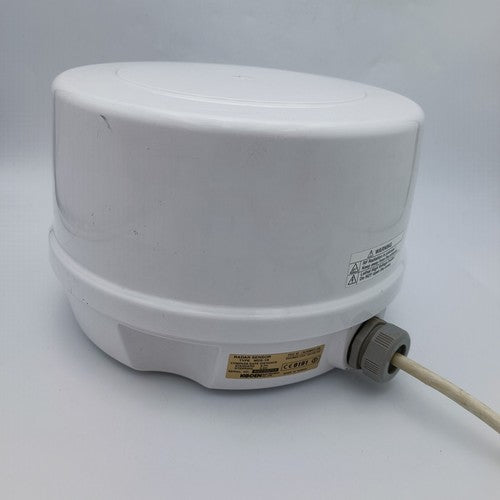

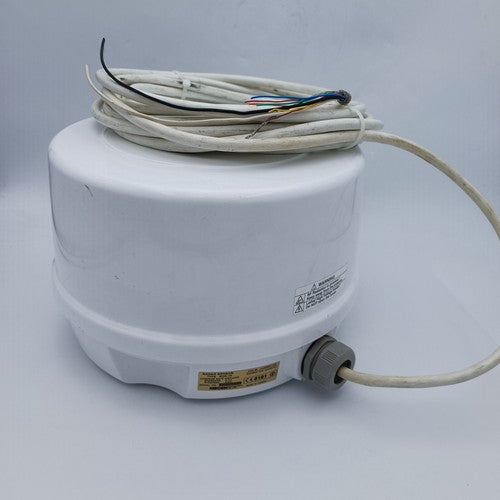

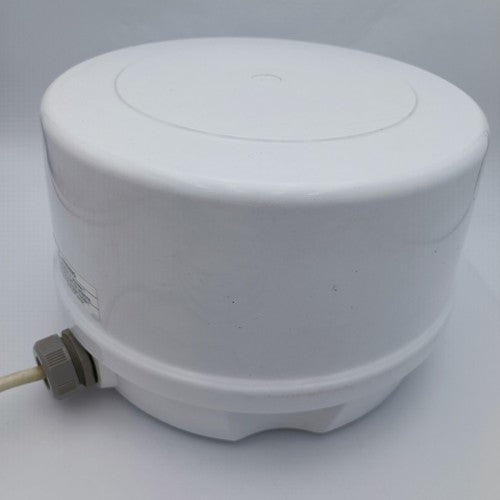

MDS-1R Antenna Unit
*****
Power supply:10.8 to 31.2 VDC
Power consumption:30W or less
Preheat times: 90 sec
Aerial:Radome 0.9 Feet
Peak power output:2kW
Transmitting frequency:9445+/-30MHz
Beam width (degree)Horizontal:7° ·Vertical:25° ·Sidelobes Within +/-10°:<=-20dB ·Rotation:30rpm ·Pulse Length (μsec)/PRF (Hz)S:0.1/2200 ·M, M1:0.3/1100 ·L, M2:0.8/550 ·IF center frequency:60MHz (Linear amplifier) ·IF bandwidthS:6MHz ·M, M1:6MHz ·L, M2:3MHz ·Noise figure:10dB nominal ·Operating Temperature:-25°C ~ +55°C ·Operation in wind (relative):100 knots ·Water Resistance:IPX6 (IEC60529) ·Preheat times output (by 5 sec step):85 sec to 5 sec
Conditions | |
---|---|
Manufacturer part number | |
Country region of manufacture |
