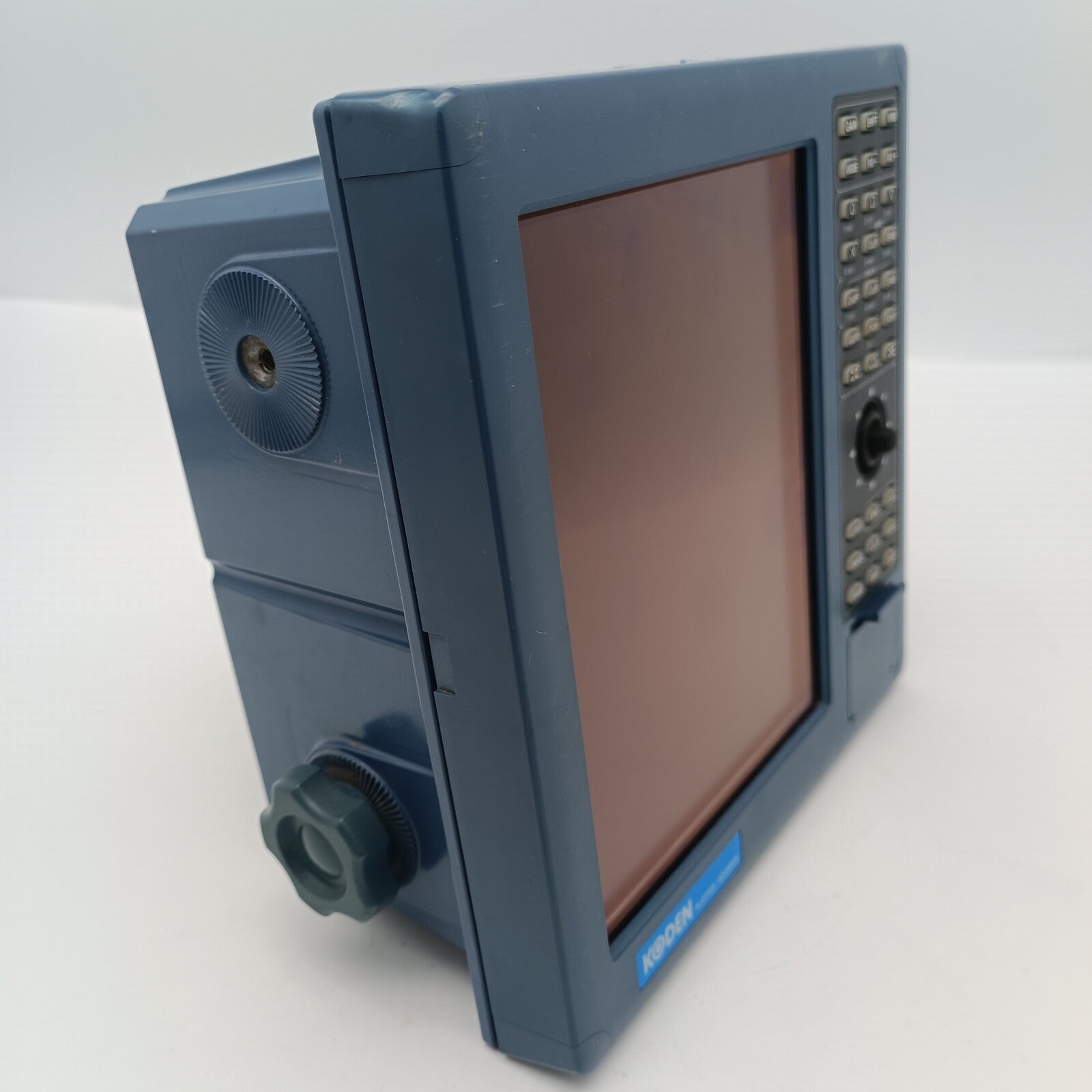

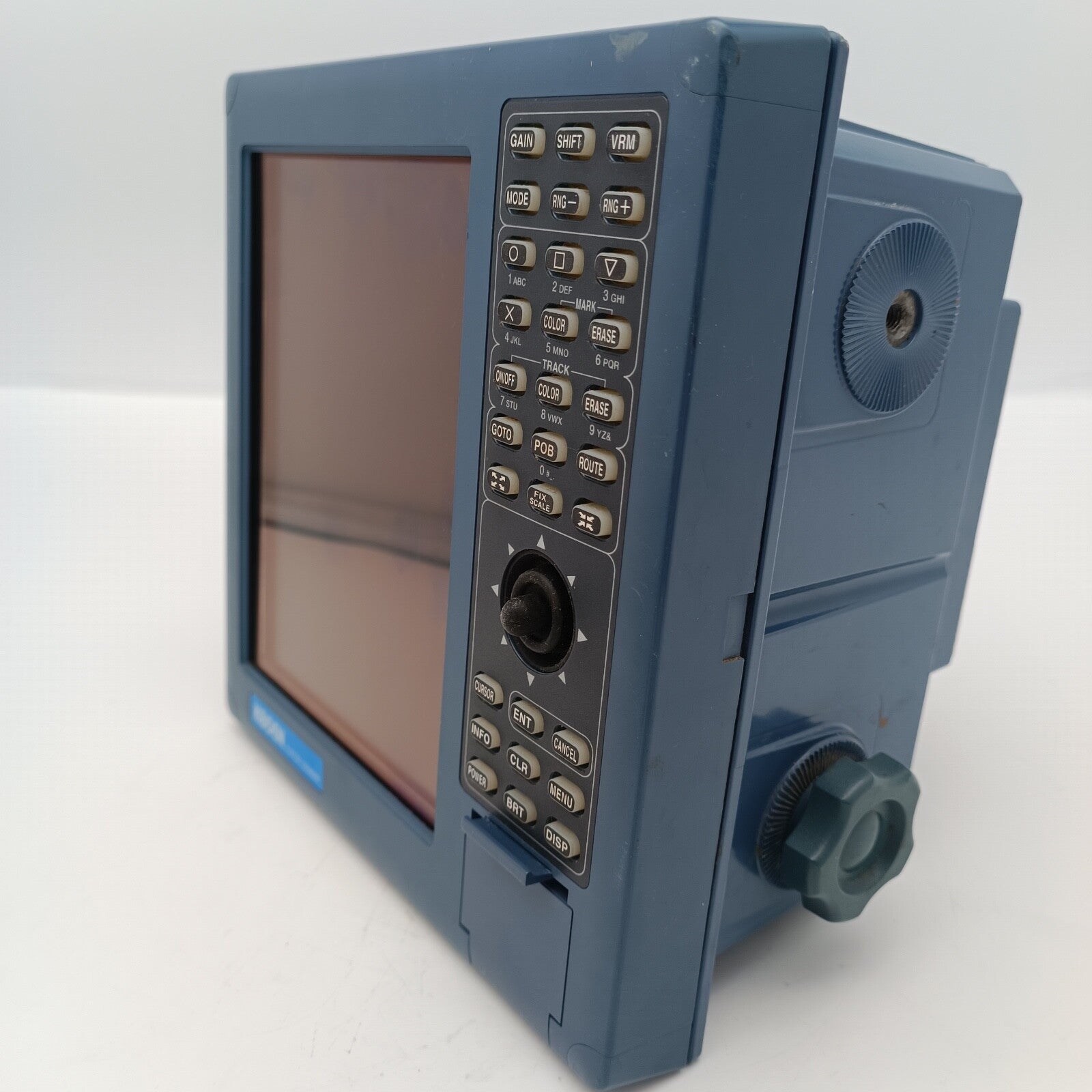

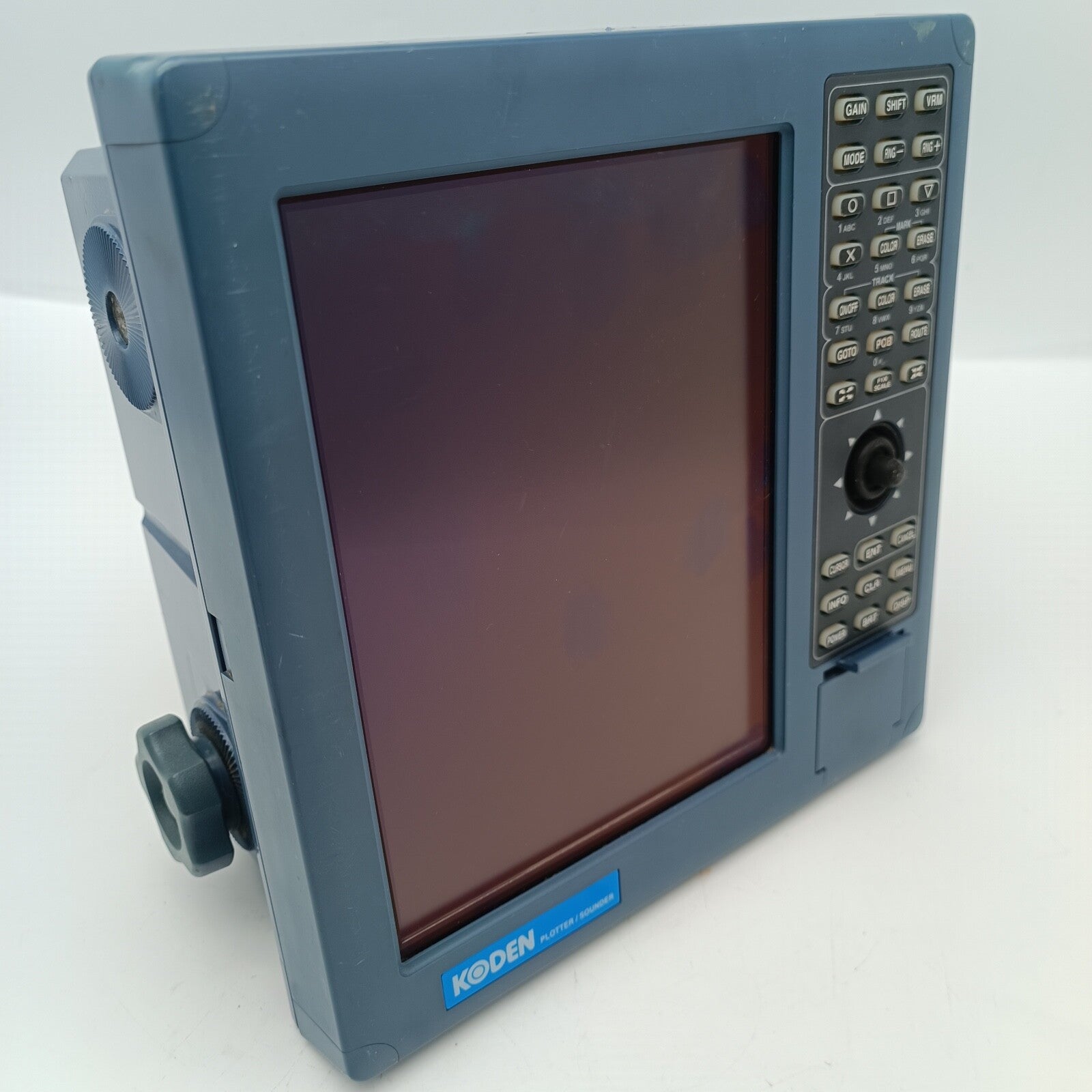

Koden CVG-80 8 inch Color LCD Plotter and Sounder with Power Cable and Manual
Works perfect, fully tested with full warranty.
Best performance:
The CVG-80 is compact in size and boasts the best performance in the 8-inch class of plotter/sounders.
Easy installation & easy flush mount
It is easy to install either hanging or flush mount. With built-in flush mounting system, it is possible to screw in through the corners of the front display, therefore any other installation devices such as a mounting kit are not required.
Ploter functions
A built-in C-map NT MAX worldwide base map (2 MB) is included as standard.

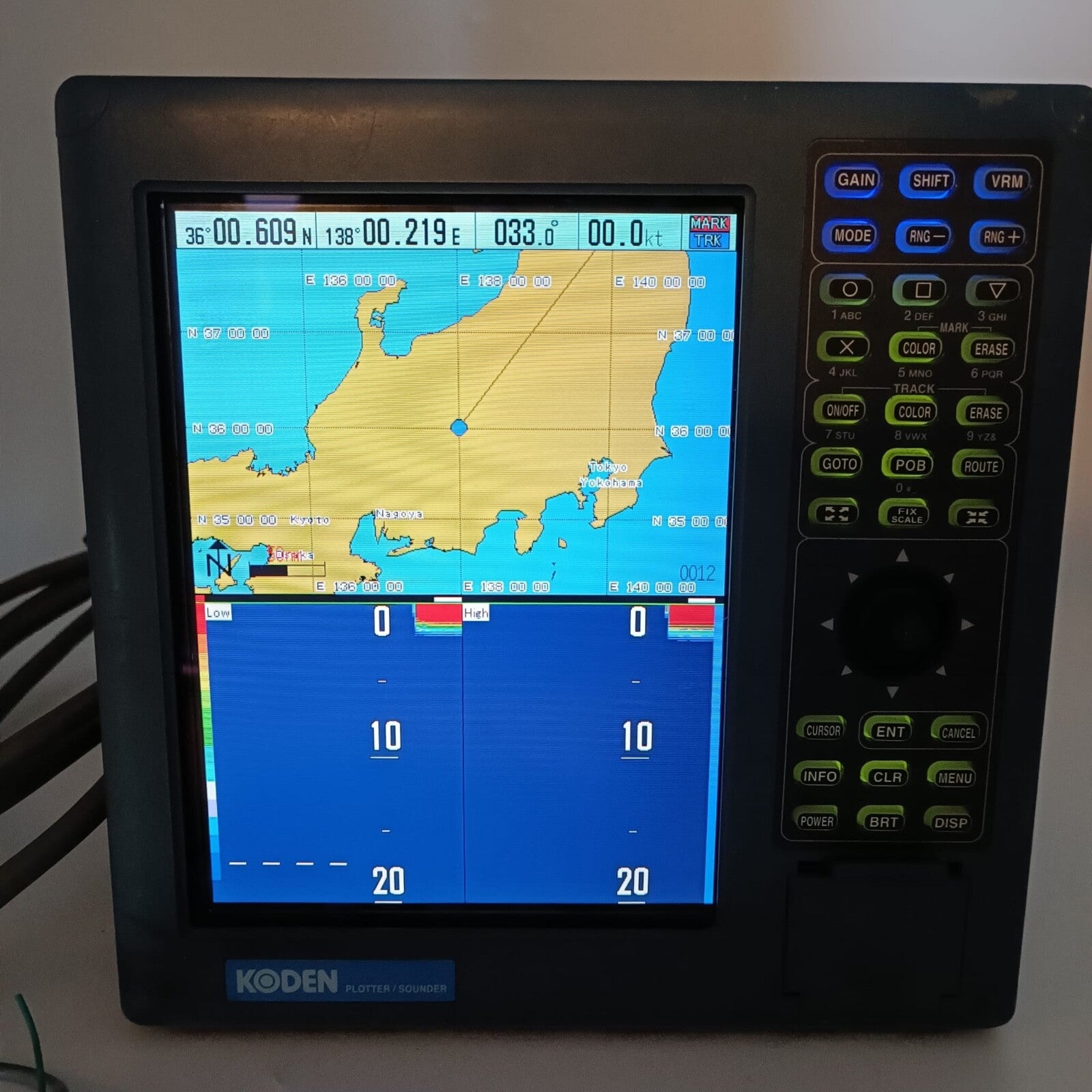

Plenty of display modes
Variety of 13 types of menus such as plotter, sounder, plotter + sounder, compass and highway in the screen display. You can choose the appropriate display mode depending upon your needs.
Usable information with marks
The depth or temperature of water can be recorded with marks. This detailed information will be great help to recall the good spots.

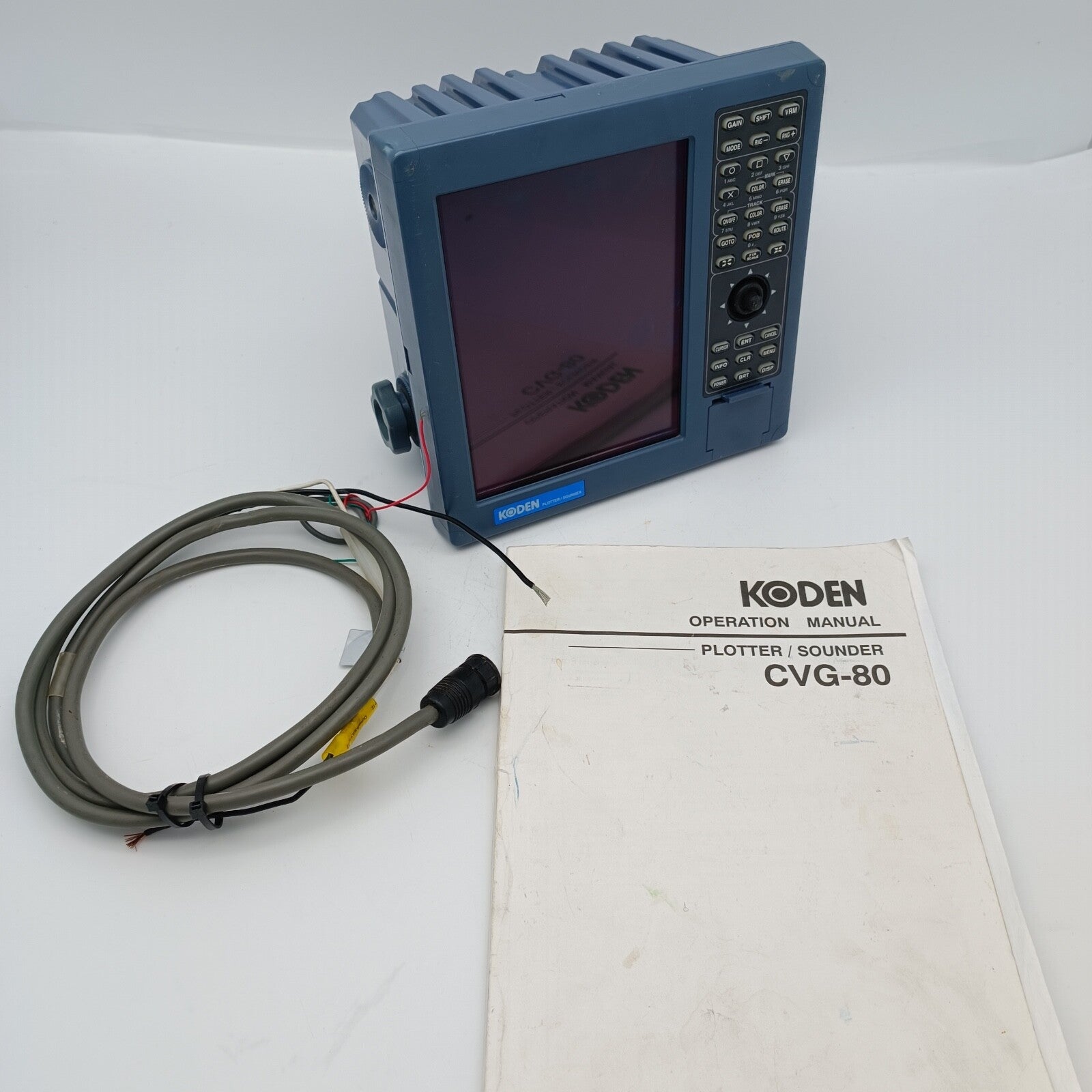

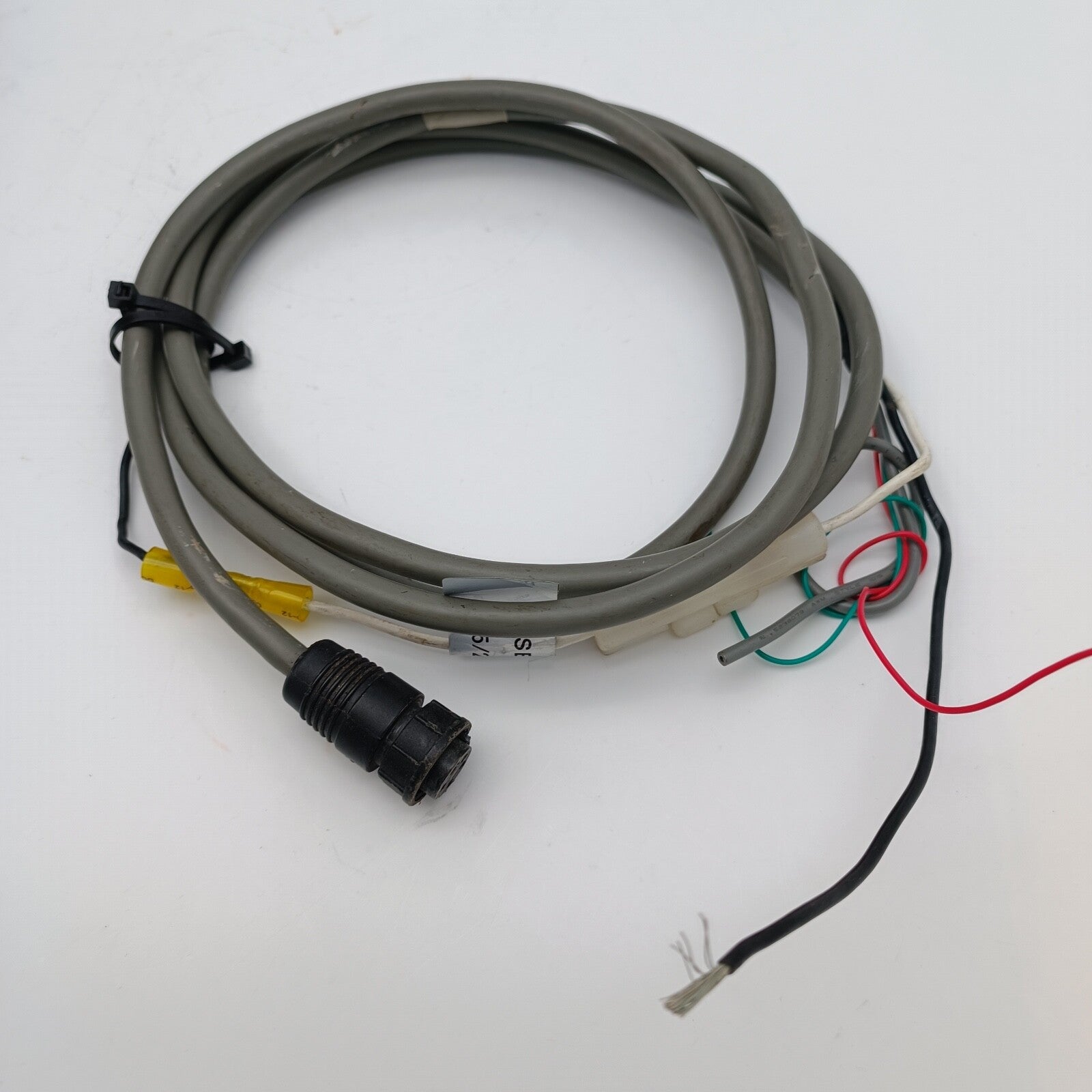

Koden CVG-80 Plotter Sounder Power Cable
including manual.
Storage capacity: Track: 2000, 4000, 7000 x 7 blocks; Marks: 8300 points; Route: 50 routes with 50 points; Other ship’s track: 1000 points x 10 targetsDisplay modes: Plotter, Sounder (Single/Dual presentation), Plotter + Sounder (Vertical/Horizontal split presentation), Compass and Highway
Chart: C-Map NT/ NT+ / NT MAX
Sounder frequency: Dual 50/200 kHz
Sounder output power: 600/1000 W
Power consumption: 40 W or less (at 24 VDC)Display colors: 16 colors (Color palette can be changed); Background: 9 colors
Display resolution (pixels): 480 x 640
Depth range: 5 to 1200 (Meter / Fathom / Italian Fathom); 10 to 4000 (Feet)Image shift: Auto or Manual
Auto functions: Depth range, Shift and GainAudible alarms: Arrival, POB, Cross-track error, Fish alarm, and Depth alarm.
Presentation modes: Head up, North up, Course up, Own ship center fixed mode
Effective projection area: 0.01 to 3600 nm
Map projection: Mercator
Supply voltage: 10.8 - 31.2 VDC
Audible alarms: Arrival, POB, Cross-track error, Fish alarm, and Depth alarm.
Manufacturer: Koden
Protection class: IPX5

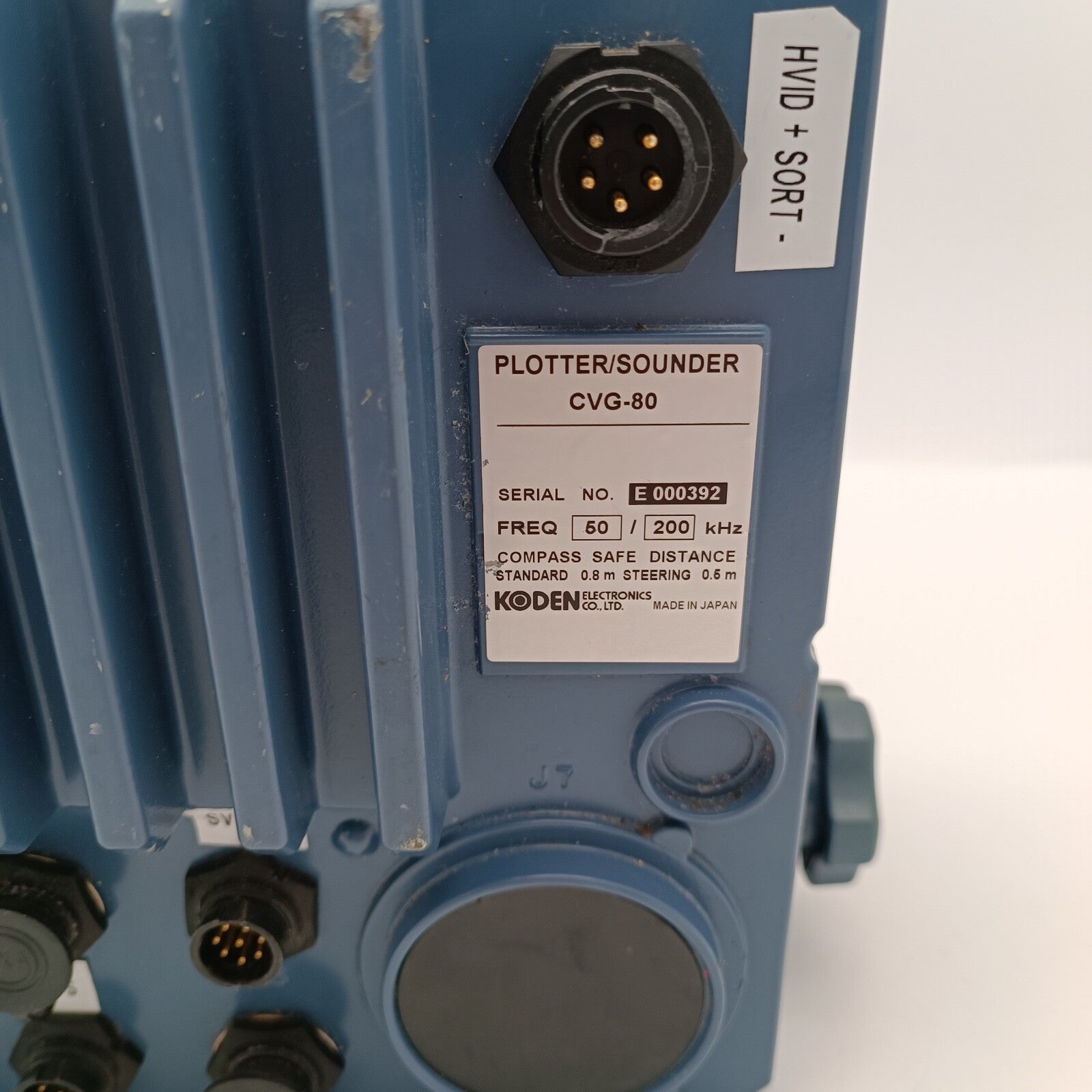

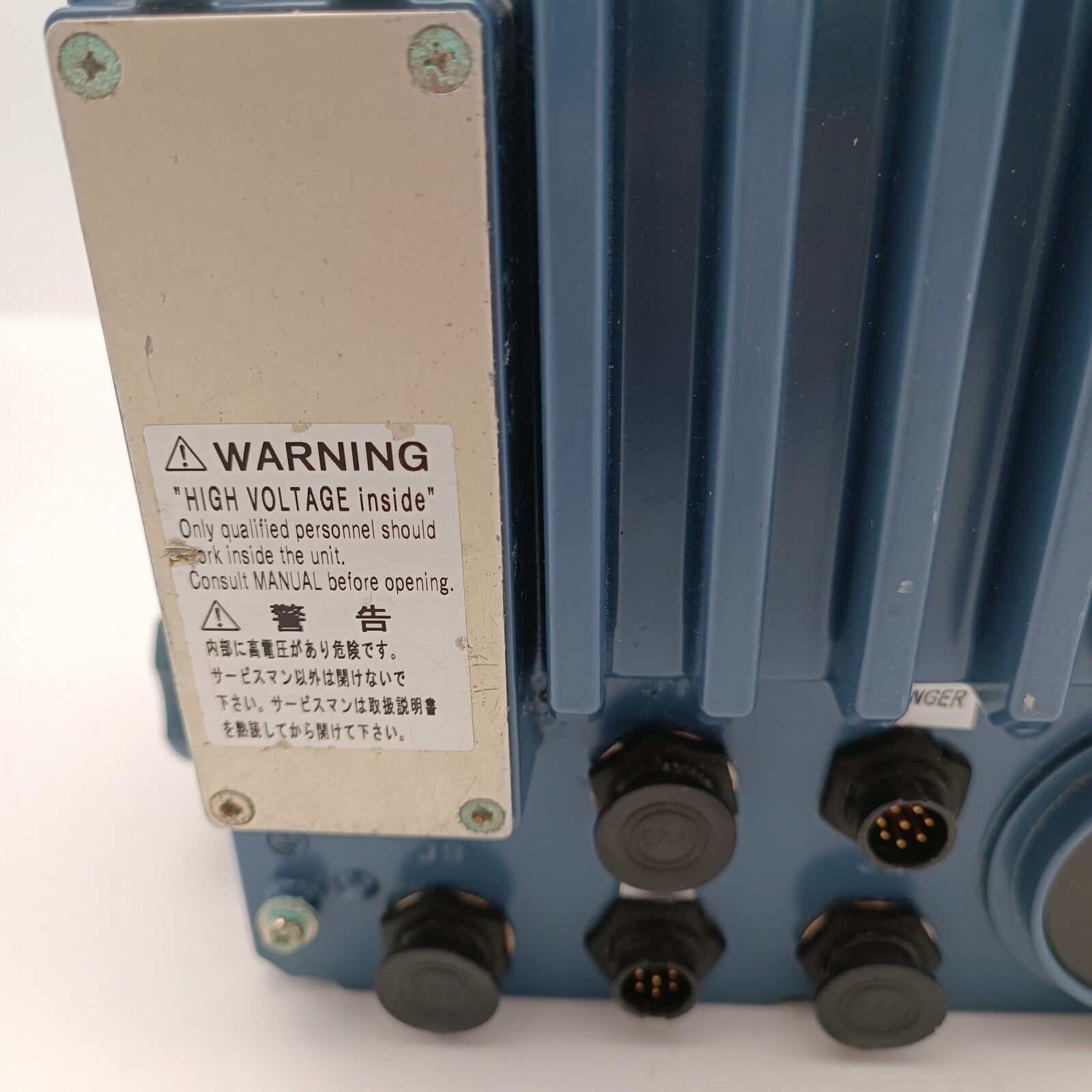

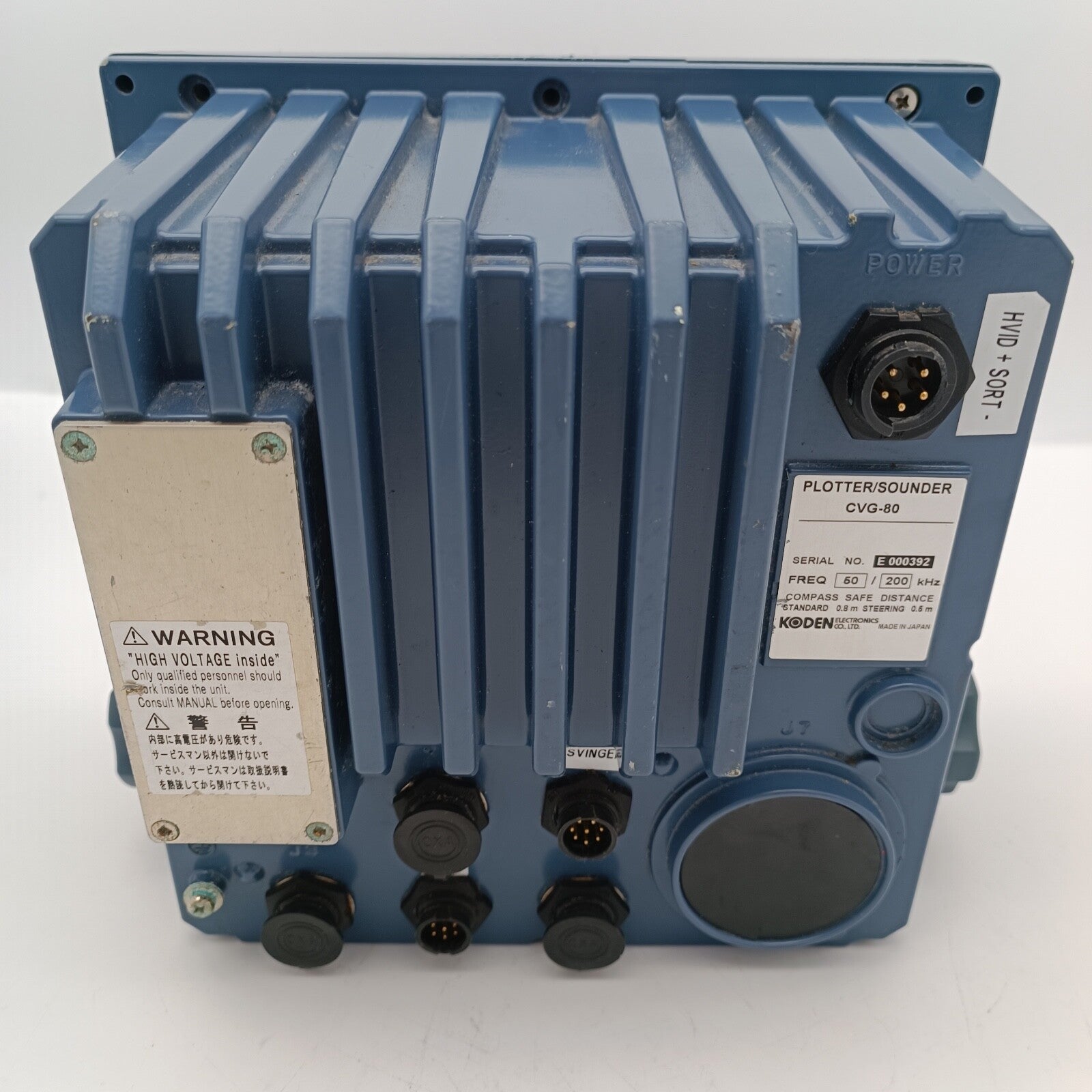

You will receive the same item as in the photos.
