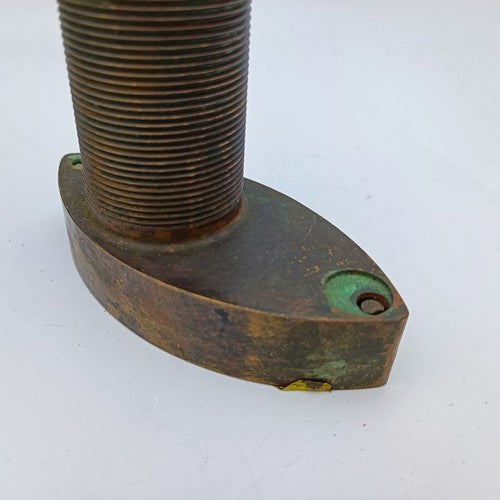

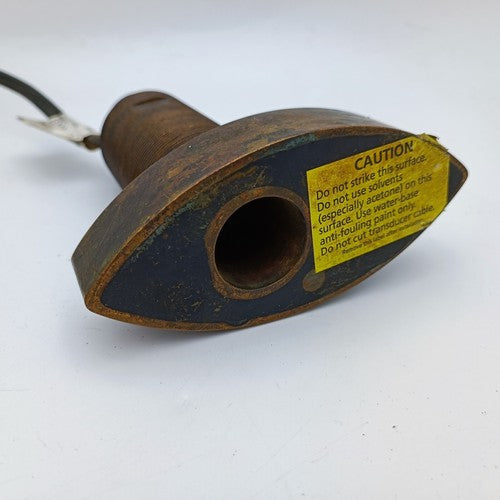

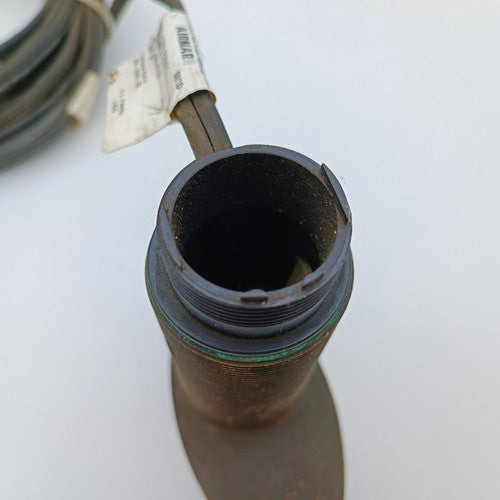

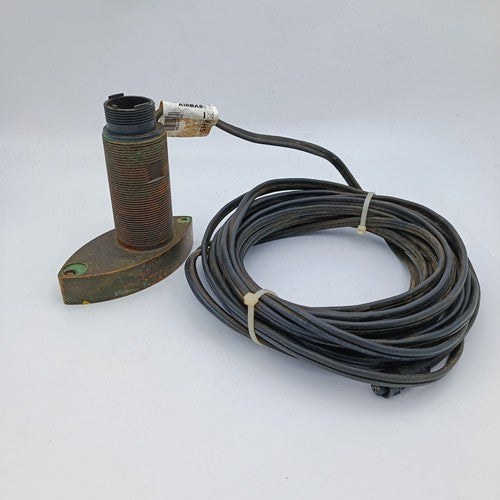

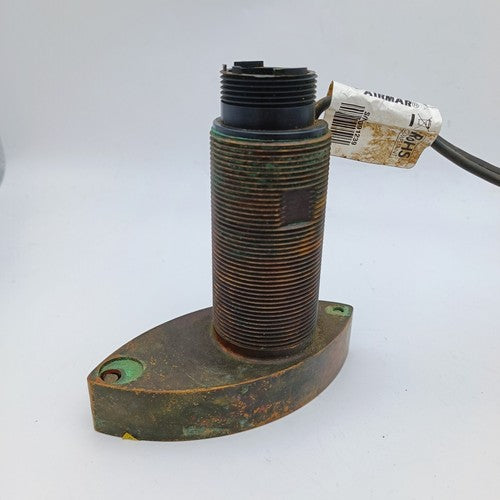

Airmar A66091 B744V Bronze Thru Hull Tri-Ducer Fairing Block E66056 DSM300
Airmar B744V
Works with several different brands and units. Without the speed element / insert!

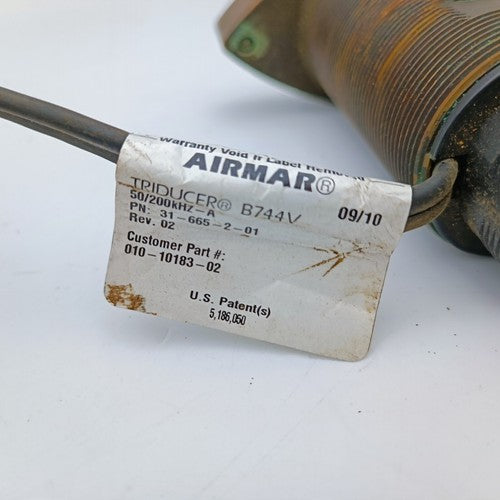

31-665-2-01
With full warranty.
The Raymarine B744V Thru-Hull Transducer with High-Speed Fairing is a dual-frequency transducer that provides depth, speed, and temperature data, all in one thru-hull housing.
Features:
Provides depth, speed, and temperature data in one thru-hull housing
High-speed fairing provides greatly improved performance at both 50 and 200 kHz
Self-sealing removable paddle wheel insert
Fins on sides of paddlewheel cavity for improved accuracy in cross flow conditions
Fishing applications:
Inshore or coastal fishing in shallow to medium depths
Slow trolling, structure fishing and drifting
Deep-water lake fishing
Suitable for boats up to 30 ft in length
Compatible with Raymarine DSM300, DSM30 and CP300
Specifications:
Mount: Thru-hull
Housing Material: Bronze

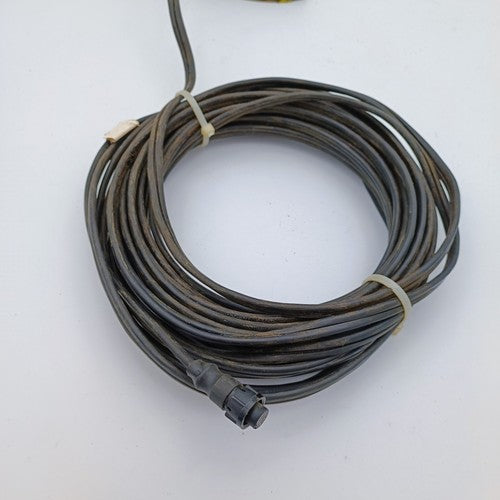

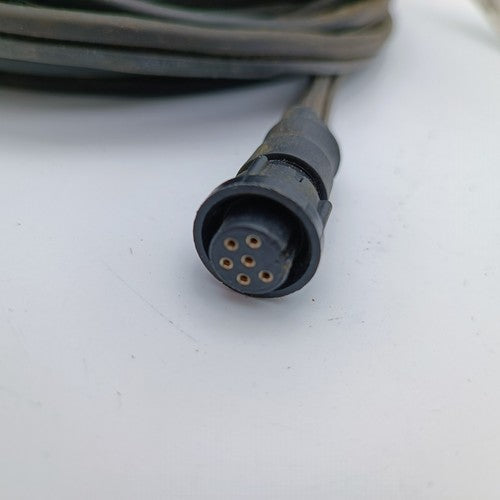

Cable Length: 30 ft
Frequency: 50 / 200 kHz
Cone: 45° (50 kHz) / 12° (200 kHz)
Power: 600W RMS
Depth Range: 800 - 1200 ft (50 kHz) / 400 - 700 ft (200 kHz)
Speed Operating Range: 1 - 45 kts
Compatible Hull Materials: Fiberglass or wood
Hole Diameter for Installation: 2"
Dimensions (with fairing): 6.57" H x 3.05" W x 13.73" L
Conditions | |
---|---|
Manufacturer part number | |
Country region of manufacture |
