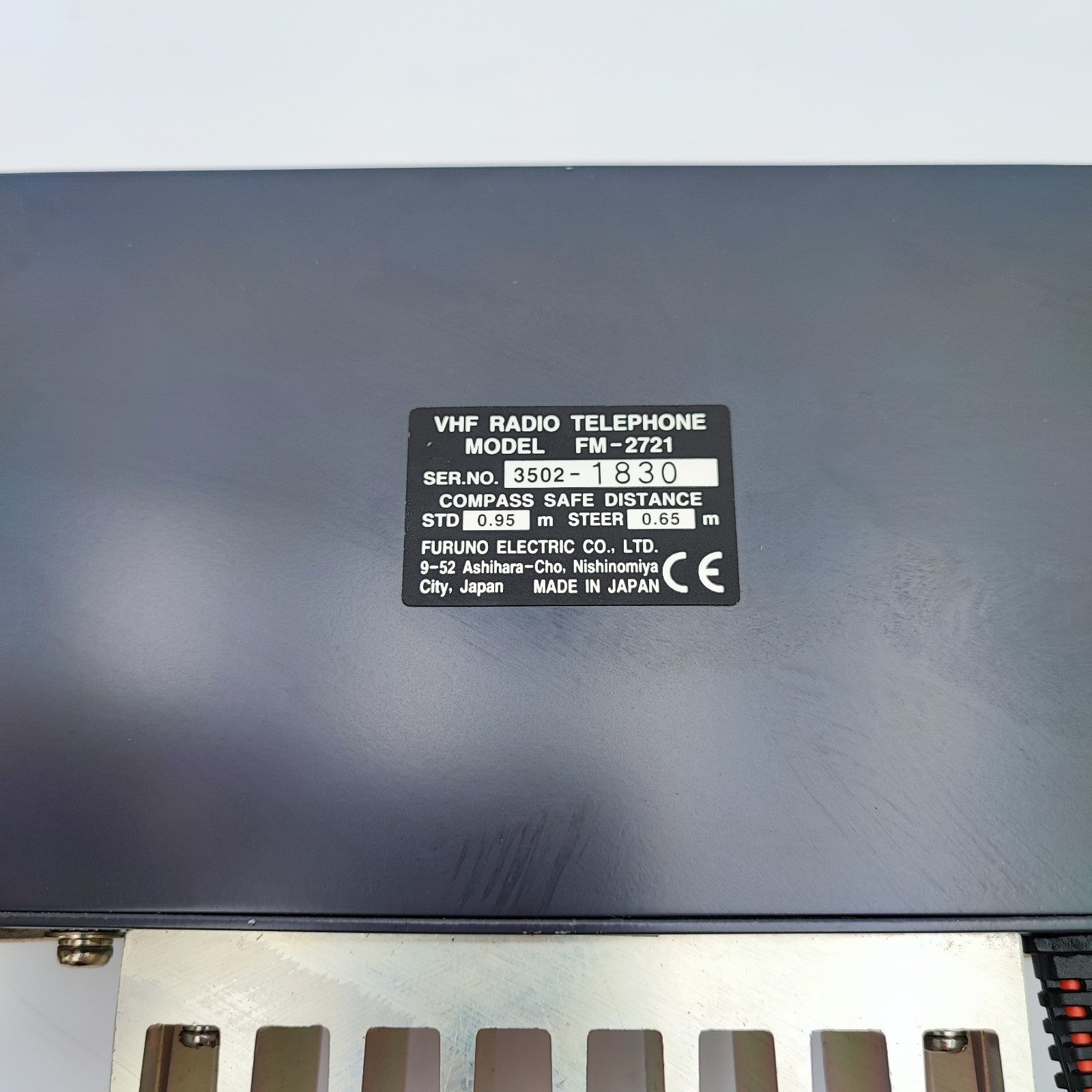

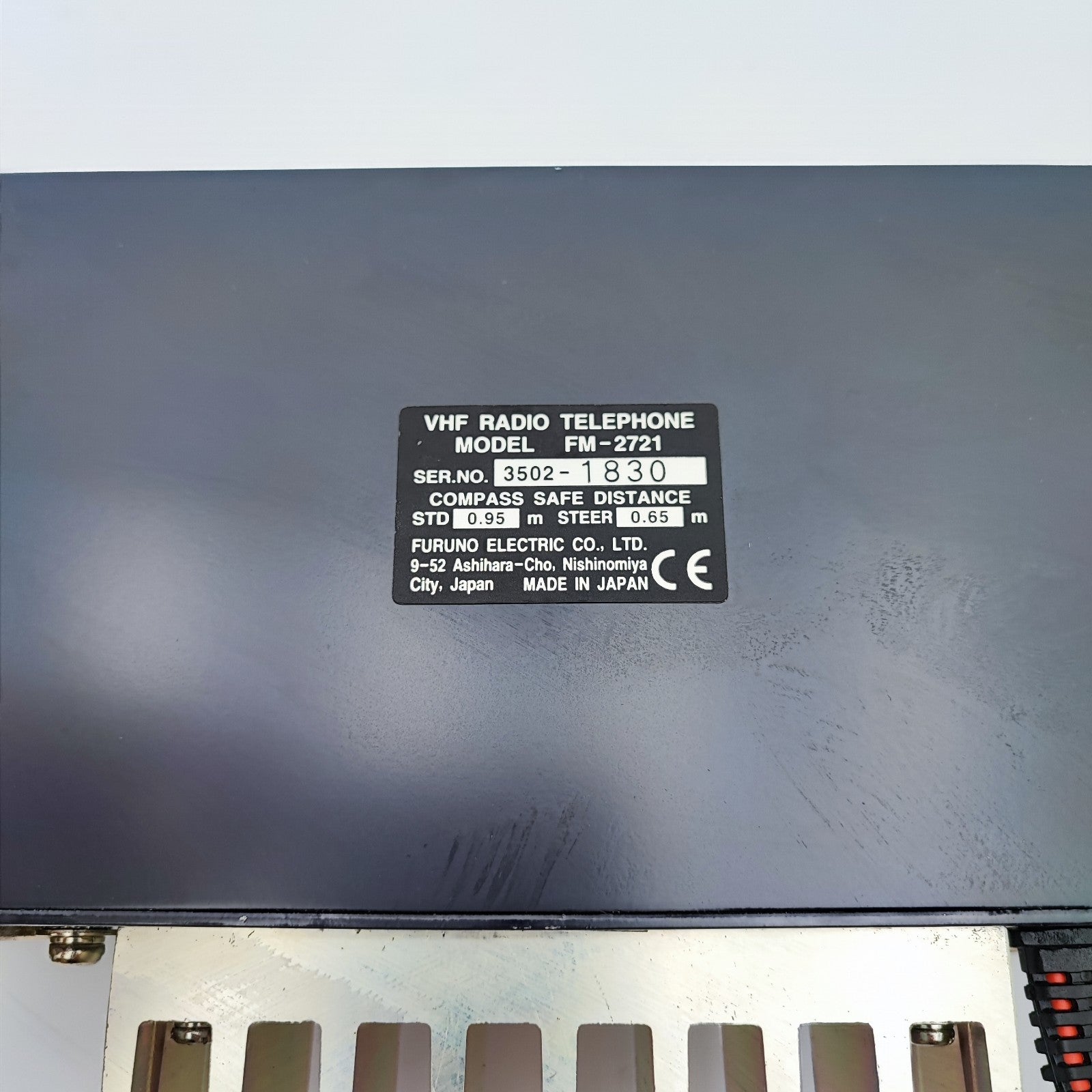

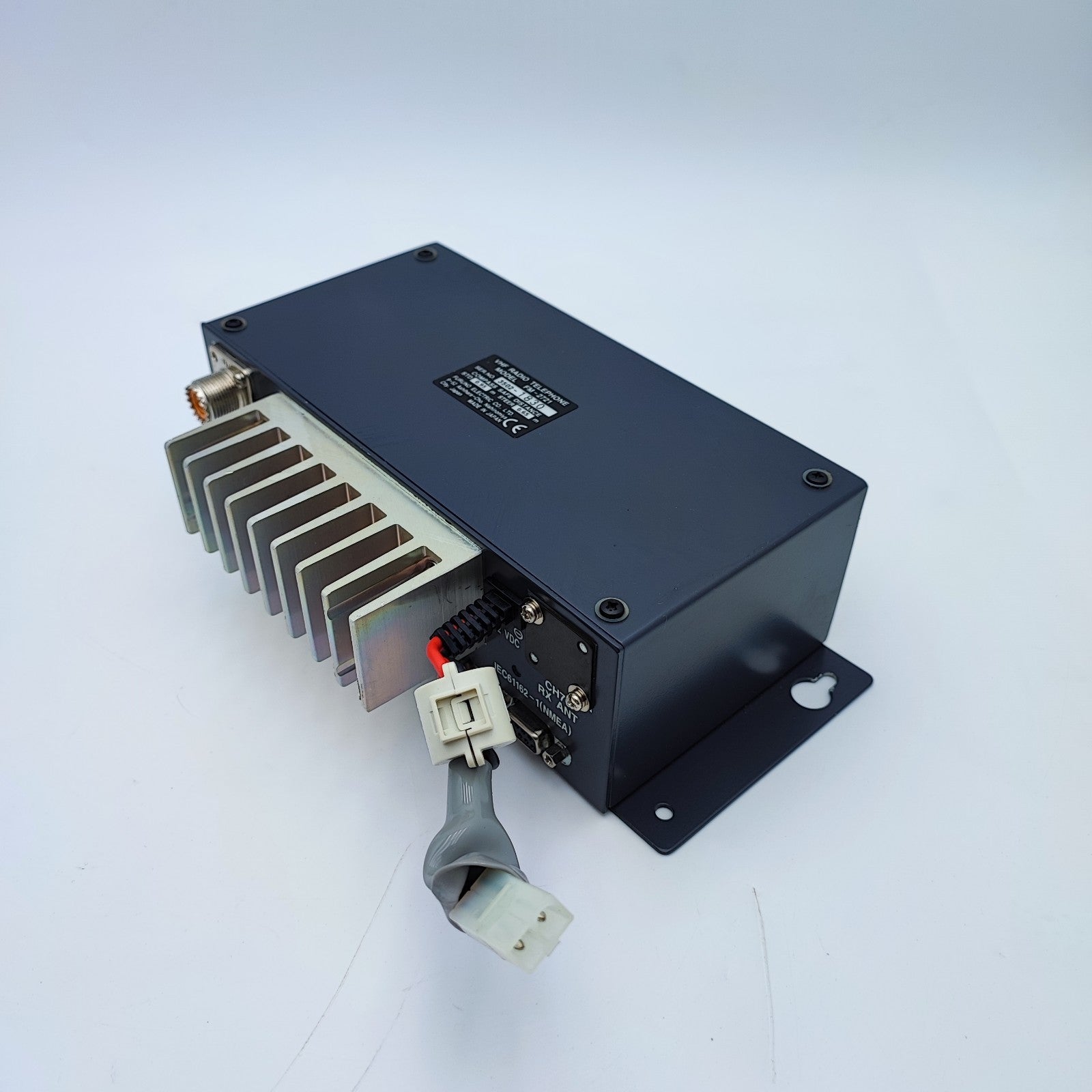

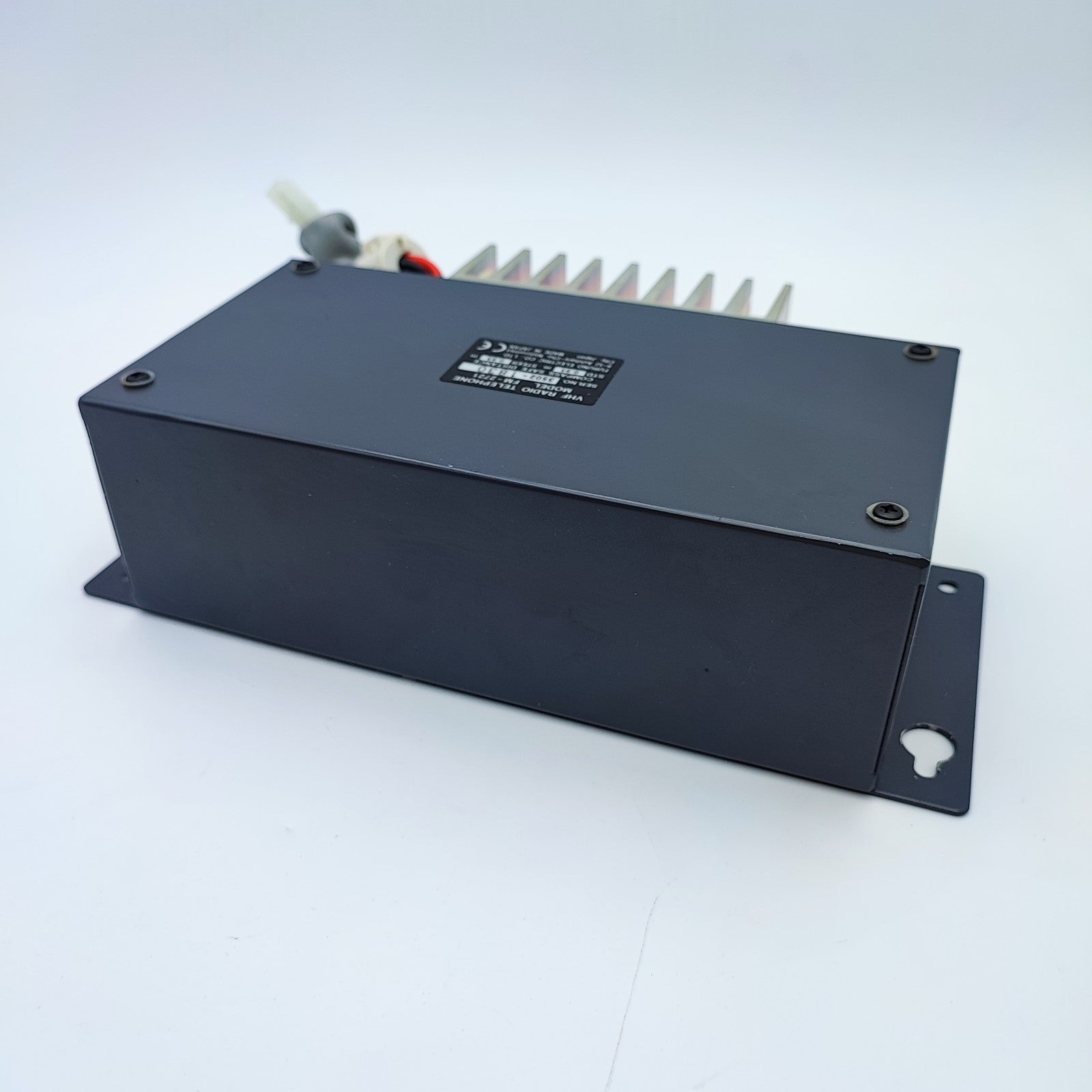

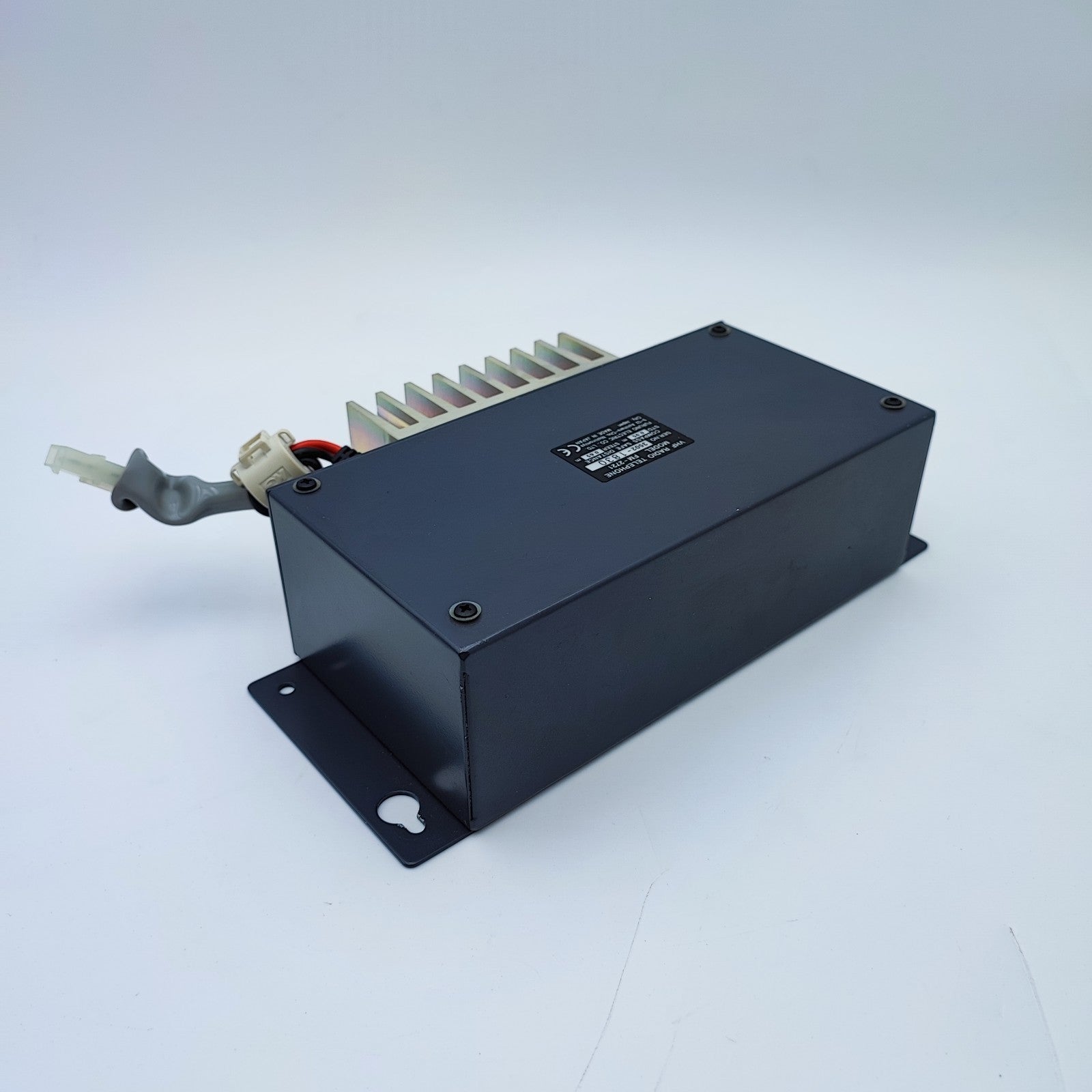

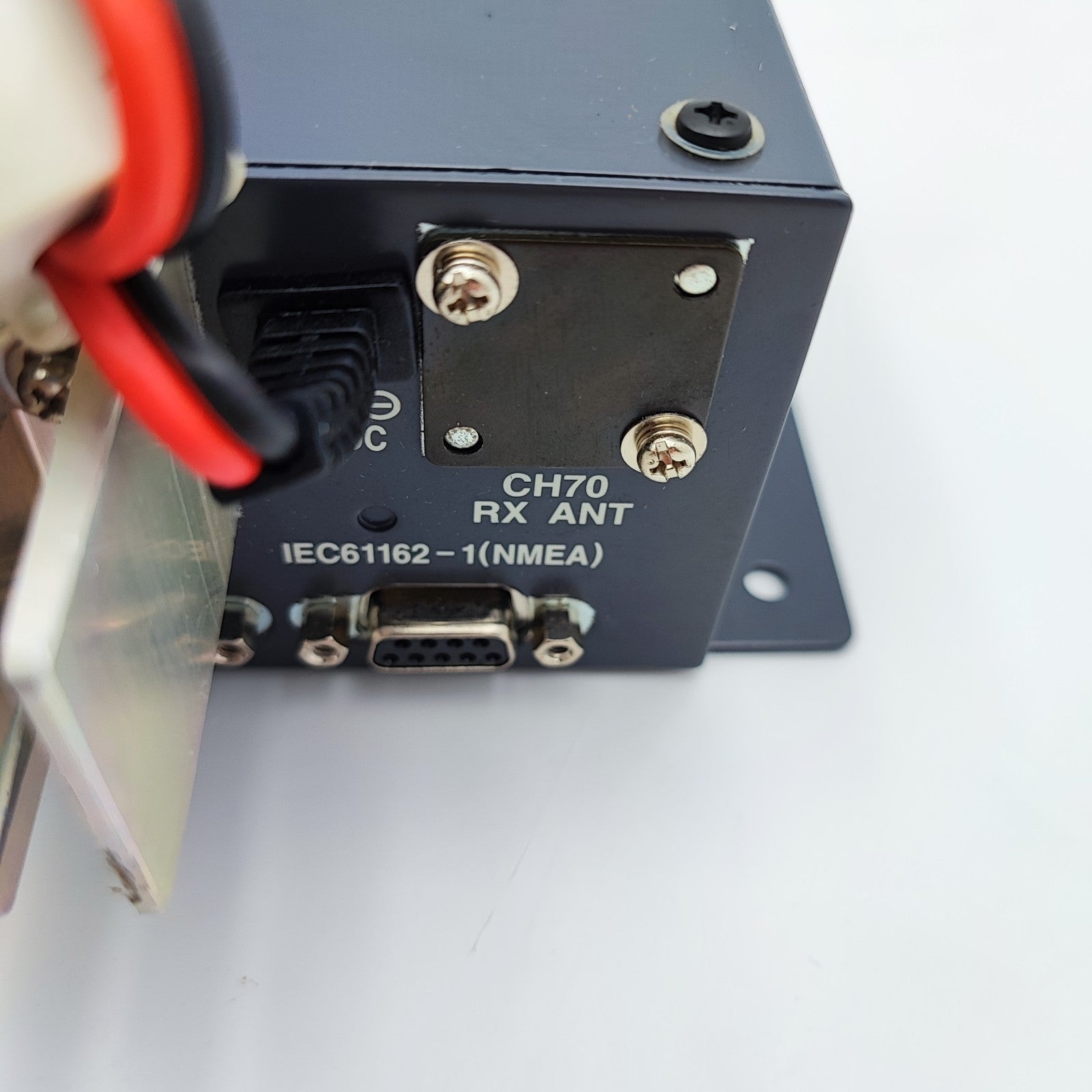

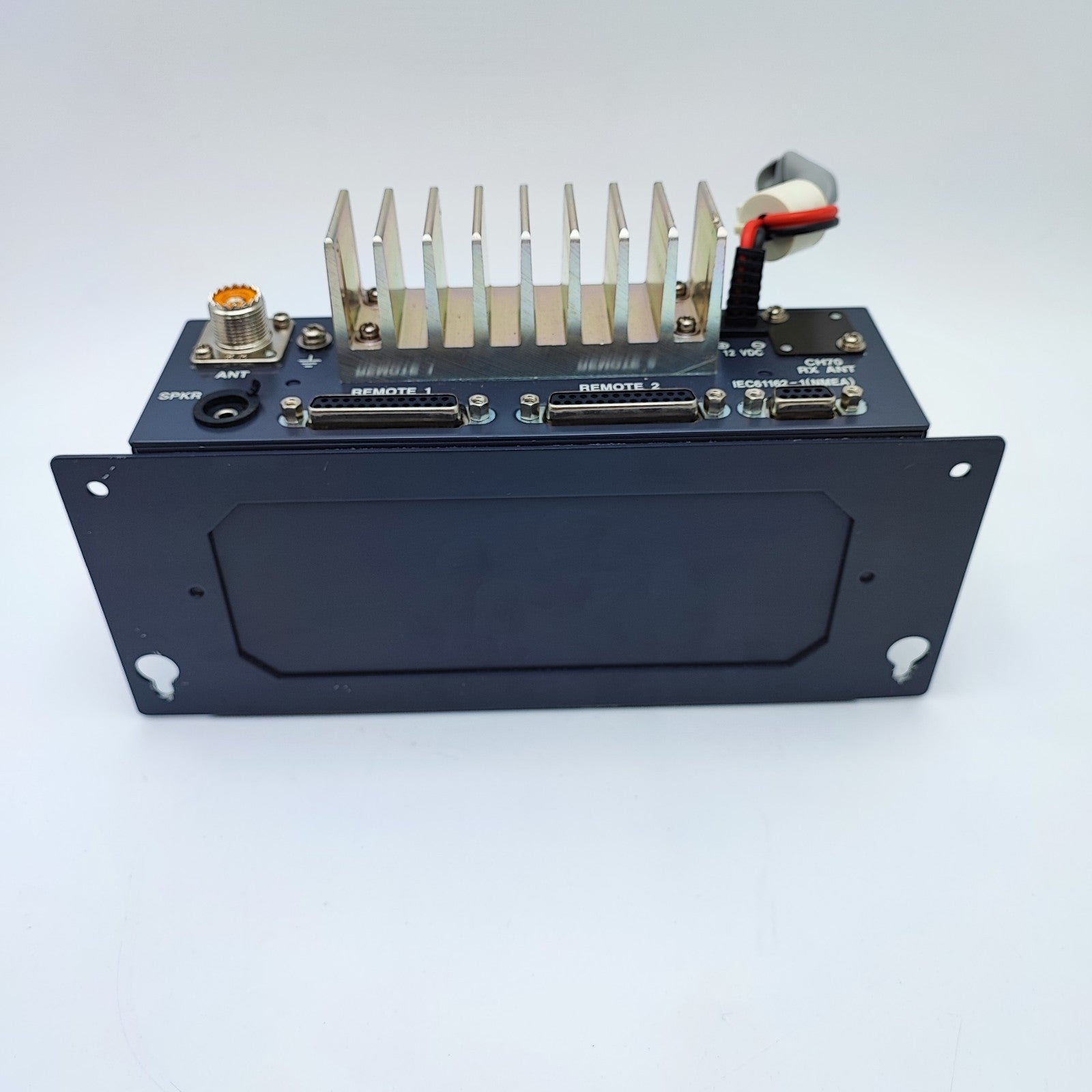

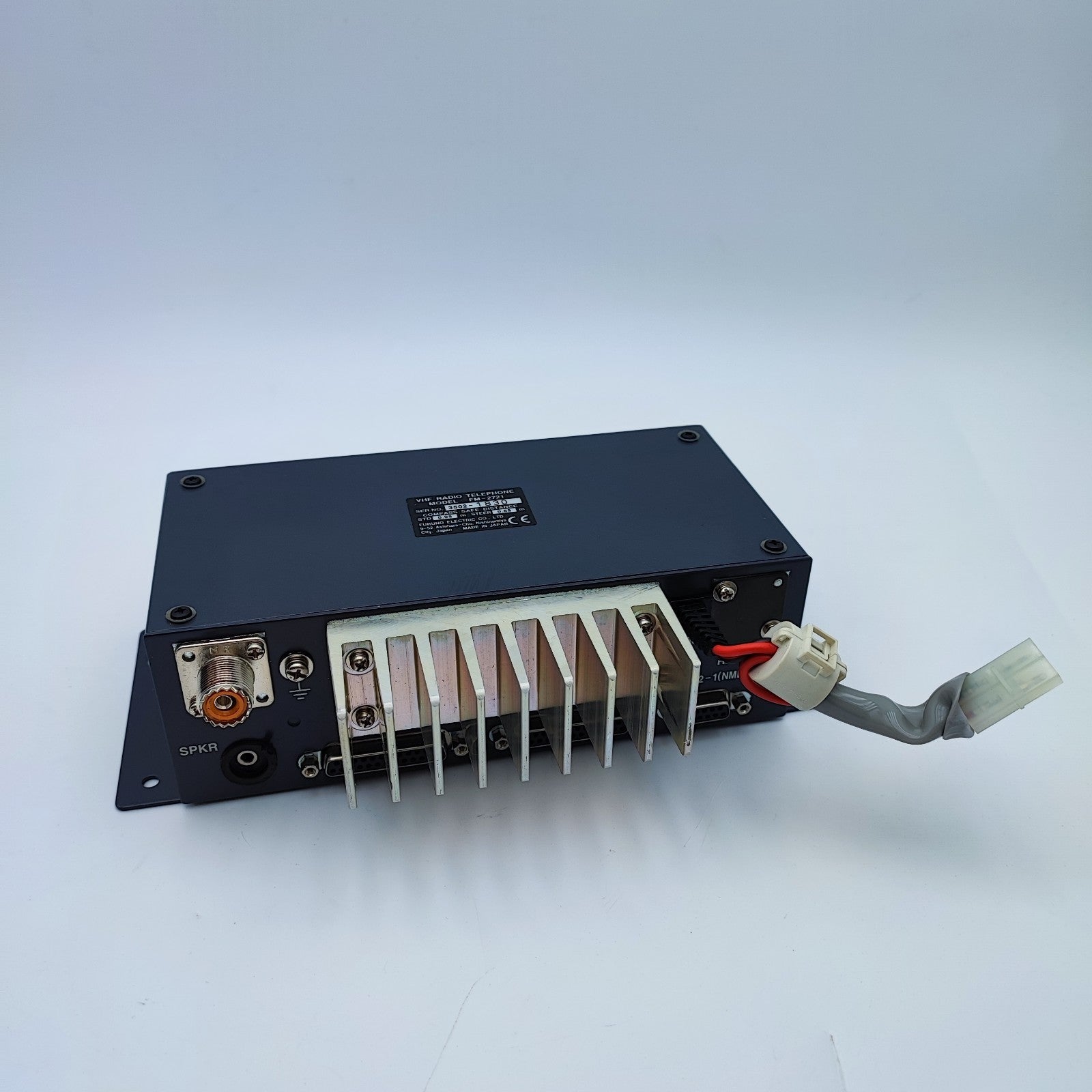

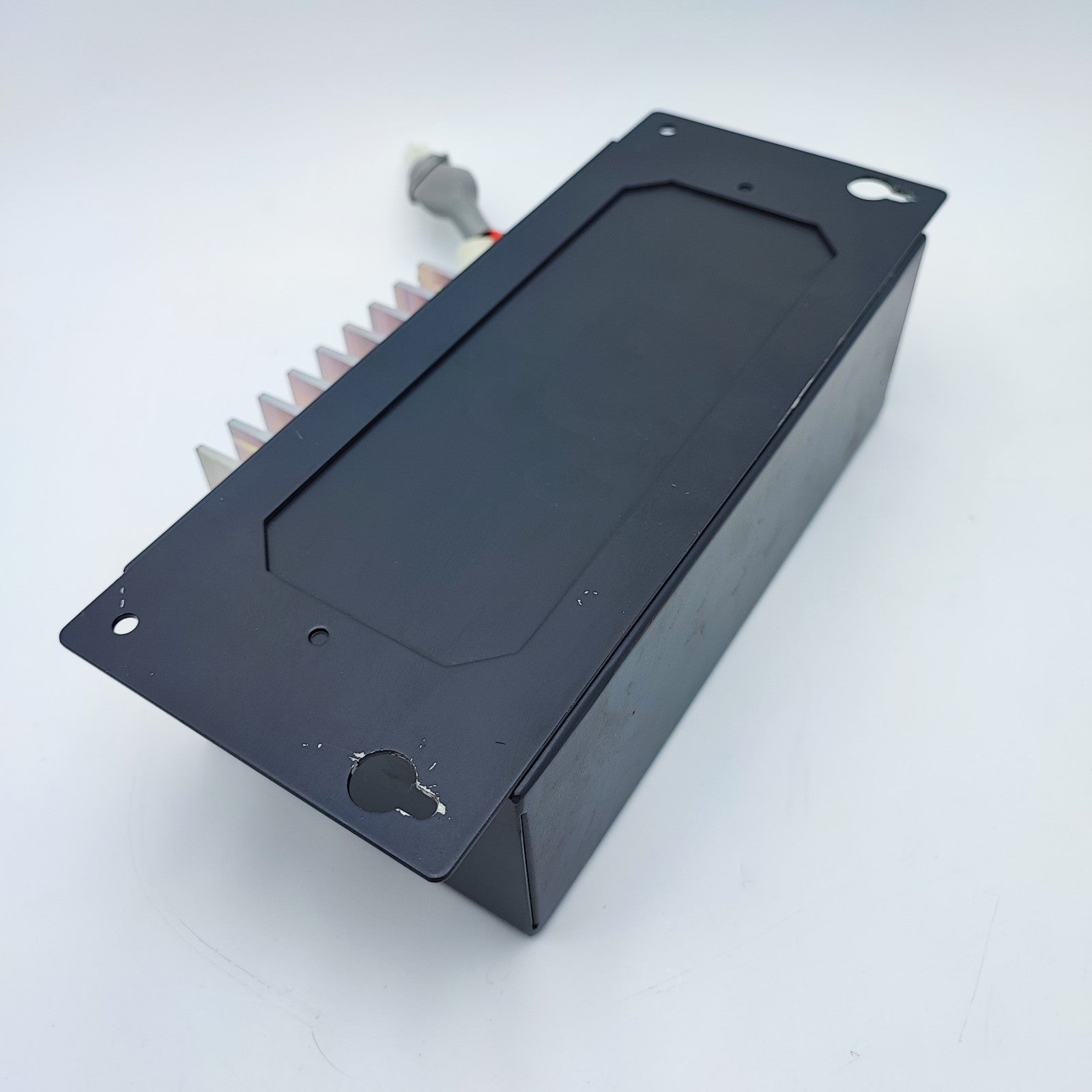

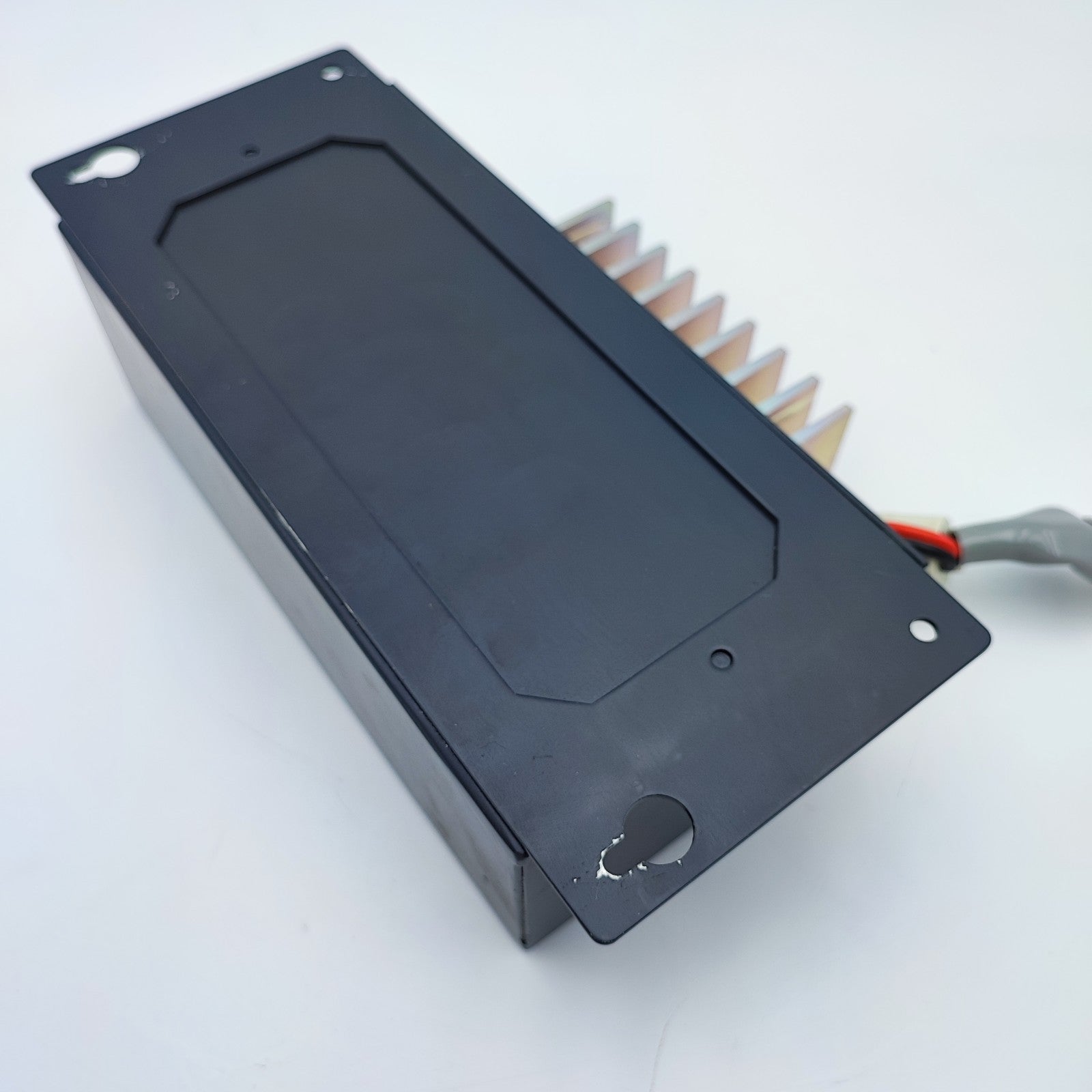

FURUNO FM-2721 Marine VHF Radiotelephone – TRANSCEIVER UNIT FM-2721 – PERFECT!
Works perfectly, fully tested with guarantee.
*****
Features • 25 W radiotelephone with control in palm • Intercom facility • Compact transceiver unit allows installation where space is limited • ATIS (Automatic Transmitter Identification System) mode enables use of the radiotelephone on inland waterways, also use with the class D DSC (ID registrations required). • “Dual watch” monitors CH16 while watching on another channel. • Extensive message storage • Conforms to the following regulations • European Standard EN 301 025 (VHF with Class D DSC) • European Standard EN 300 698 (VHF used on inland waterways) • ITU Radio Regulations Appendix 18: Table of transmitting frequencies 156 – 174 MHz for stations in the mobile service • ITU-T Recommendation E.161: Arrangements of digits, letters and symbols on telephones and other devices that can be used for gaining access to a telephone network • IEC61162-1: Maritime navigation and radiocommunication equipment and Systems – Digital Interface Part 1: Single and multiple listeners • MSC/Circ.803: Participation of non-SOLAS ships in the Global Maritime Distress and Safety System • ITU-R Recommendation M.493-9: Digital selective-calling system for use in maritime mobile service
VHF Transceiver
GENERAL CHARACTERISTICS
1.Rules and Regulations
EN 301 025 V1.1.1
2.Class of EmissionG3E (telephone), G2B (DSC) 3.Communication SystemSimplex/Semi-duplex 4.Channels All VHF channels according to ITU-R Radio Regulations Appendix S18, All channels in FCC Part 80, Max 20 Private channels where permitted by Administrations (preset by the service agent), 10 weather channels (USA and Canada, receive only).
5.Power Supply12 V,6 A max 6.Display 13 characters x 7 lines, character 7 x 5 dots, backlit LCD (dimmable) TRANSMITTER 1.Frequency Range155.00 – 161.475 MHz 2.RF Output Power25 W, reducible to 1 W US Mode: CH67, CH13 at 1 W, manual override for full power. CH75, 76 1 W only 3.Frequency Stability1.5 kHz RECEIVER 1.Frequency Range155.00 – 166.075 MHz 2.Receiving System Double-conversion superheterodyne IF: 45.1 MHz and 455 kHz 3.AF Output Power 0.1 W (8 loudspeaker) 1.5 mW (150 handset) 3 W with optional loudspeaker 4.Audio ResponseDe-emphasis of 6 dB/oct +1/-3 dB 5.Sensitivity-3 dBµV at SINAD 20 dB 6.Adjacent Channel Selectivity70 dB
| Conditions | |
|---|---|
| Manufacturer part number | |
| Country region of manufacture |
