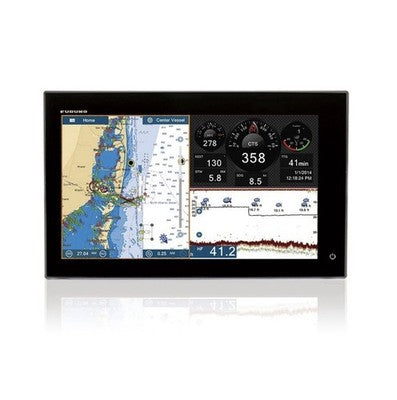

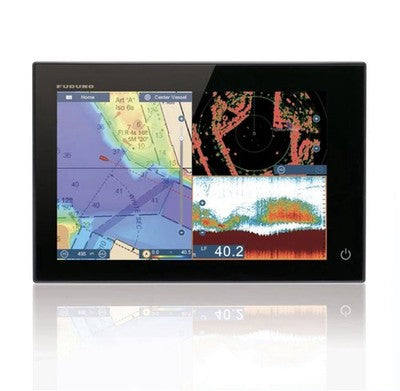

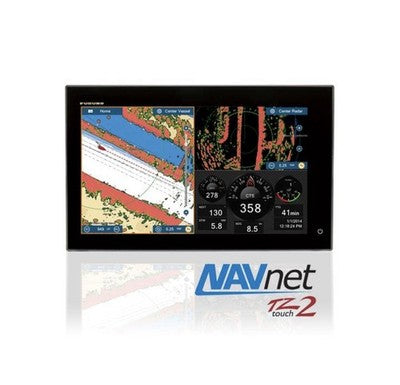

The FURUNO TZTL15F NavNet TZtouch2 is a high-performance 15.6-inch multi-touch multifunction display (MFD) engineered for advanced marine navigation and fish finding. Featuring a sleek, edge-to-edge glass helm design, it integrates a built-in GPS receiver and a commercial-grade sonar system into a single unit.
Key Technical Specifications
• Display: 15.6-inch optically bonded, polarized-friendly LCD with a 1366x768 resolution and 1100 cd/m² brightness.

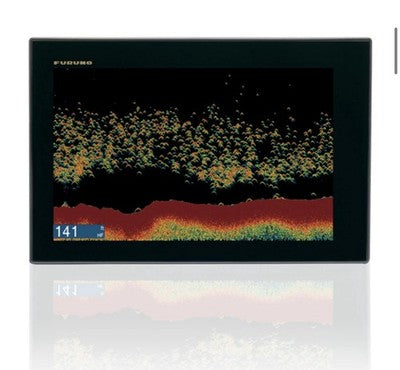

• Sonar: Built-in 50/200kHz, 600W/1kW dual-frequency fish finder powered by RezBoost technology.
• GPS: Internal 56-channel GPS / WAAS receiver.
• Waterproofing: IP56 watertight rating.
• Power Consumption: 43.2W operating on a 12-24 VDC power supply.
Core Features & Usability
• Edge-Swipe Interface: The user interface relies on edge swiping to quickly pull up menus without cluttering the screen. Swiping from the left opens customizable navigation data, swiping up from the bottom controls map layers (charts, AIS, satellite photos), and swiping right handles tracks and tides.
• RezBoost Target Separation: Furuno's digital signal processing increases target resolution up to eight times compared to conventional fish finders, improving bottom discrimination and individual fish tracking (AccuFish) without needing a specialized transducer.
• Wireless Connectivity: Built-in Wi-Fi lets you download marine weather forecasts directly to the unit and mirror or control the display using a tablet or smartphone via the TZtouch Remote App.
• Flexible Cartography: Supports MapMedia NOAA raster and vector charts, as well as C-MAP, Navionics, and PhotoFusion satellite photography.
Network Expansion & Interfaces
The TZTL15F serves as a central hub for a fully networked bridge, communicating through multiple connection protocols:
• Network Components: Directly compatible with Furuno UHD Radars (4kW to 25kW), NavPilot Autopilots, and FI70 instrument displays.

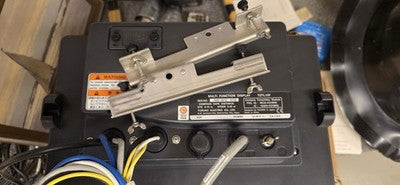

• Ports: Equipped with 1 NMEA2000 port, 1 NMEA0183 output, 1 Ethernet port, 1 USB port, 1 HDMI output, and 2 NTSC/PAL analog video camera inputs.
• Sensor Support: Integrates seamlessly with AIS, Weather Fax, SiriusXM Satellite Weather, Fusion Marine Stereos, and IP cameras.
| Conditions | |
|---|---|
| Manufacturer part number | |
| Warranty |
