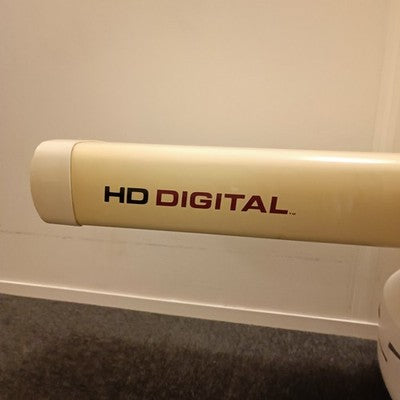

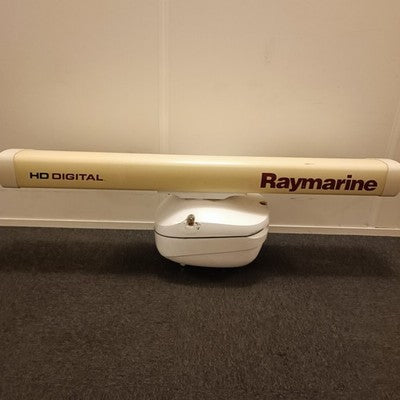

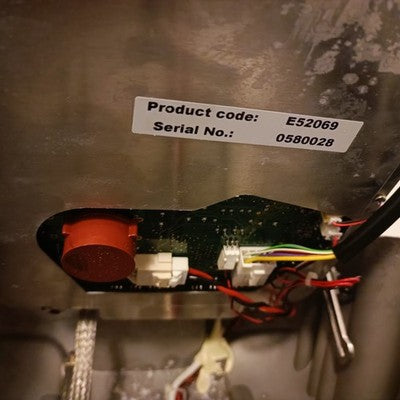

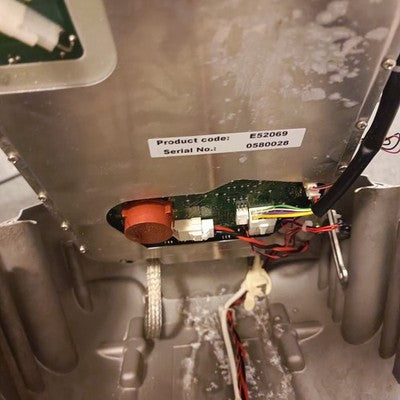

Raytheon Open Array HD Color Radar Antenna Pedestal E52069
Digital technology brings radar users the power of digital signal processing with a truly adaptive transmitter and receiver that automatically adjusts to changing environmental and sea conditions. HD Digital radar delivers a dramatically clearer radar picture with crisp, well-defined contact echoes and life-like target presentation.
HD Digital radar’s wide receiver bandwidth and high-speed digital processing detect weak and distant contacts that are invisible to traditional analog radar systems, while virtually eliminating clutter, noise and false echoes. The RA1048D Open Array Radar Scanner combines Raymarine’s 48” open array antenna with a powerful 4kW HD Digital antenna pedestal with a 72 mile maximum range.
SeaTalk hs network compatible for Raymarine E-Series and G-Series navigation systems. Exclusive Raymarine HD Digital radar technology Adaptive digital receiver automatically adjusts to changing environmental and sea conditions for a dramatically clearer picture Fast digital receiver processor Delivers 256 color target levels Dual range capable 12 or 24 volt operation RA1048HD 4kW 48” HD Digital Open Array
Specifications
Power
Voltage 10.7-32 volts for 12v, 24v systems
Power consumption (typical) watts 46W, Standby: 9.2W Environmental
Operating temperature range -10°C to +55°C D6 Non-operating temperature range -20°C to +70°C C6 Waterproofing standard IPX6 General Scanner power and type 4kW HD Digital
Antenna Size 4' (48)

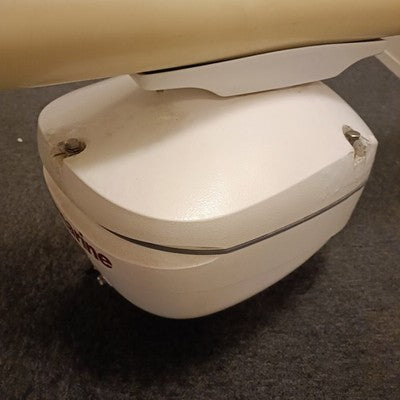

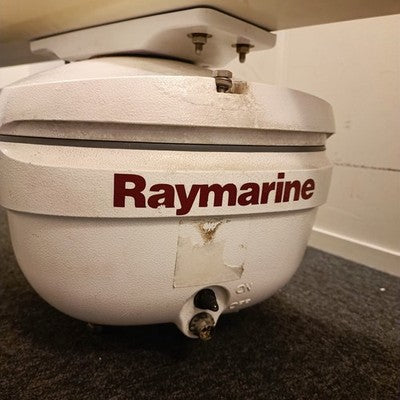

Pedestal Weight 56.4 lbs( 29.5kg) Transmitter/Receiver Max range scale 72nm
Pulse length/PRF Settings 8
Beam width horizontal 1.85° Beam width vertical -3dB 25°
Antenna side lobes (inside 10°) <-21dB
Antenna side lobes (outside 10°) <-30dB Rotation rate 24rpm
Receiver bandwidth Matched digital filter for each pulse length
Number of displayed video levels 256 (8-bit)
Works perfectly, fully tested with guarantee.

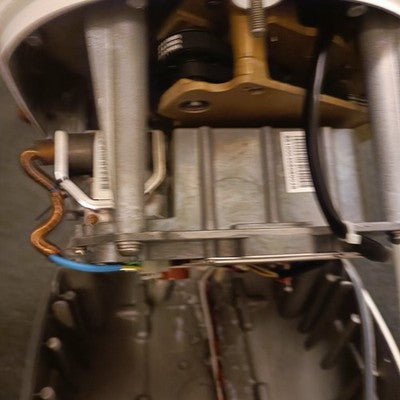

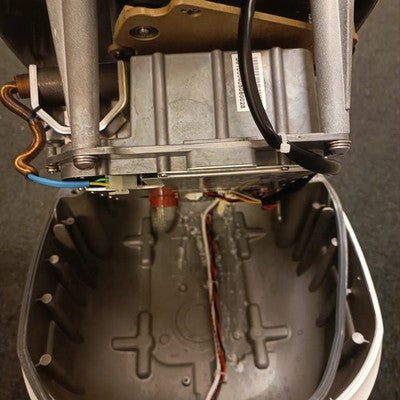

Low hours magnetron is fitted.
****
