Raymarine C80 Chartplotter GPS Fishfinder Radar 8.4" LCD Display Cable PERFECT!

Raymarine C80 GPS Fishfinder & Radar 8.4" LCD Display.

Works perfectly, fully tested with guarantee.

You will receive what you can see in the photos.

*******

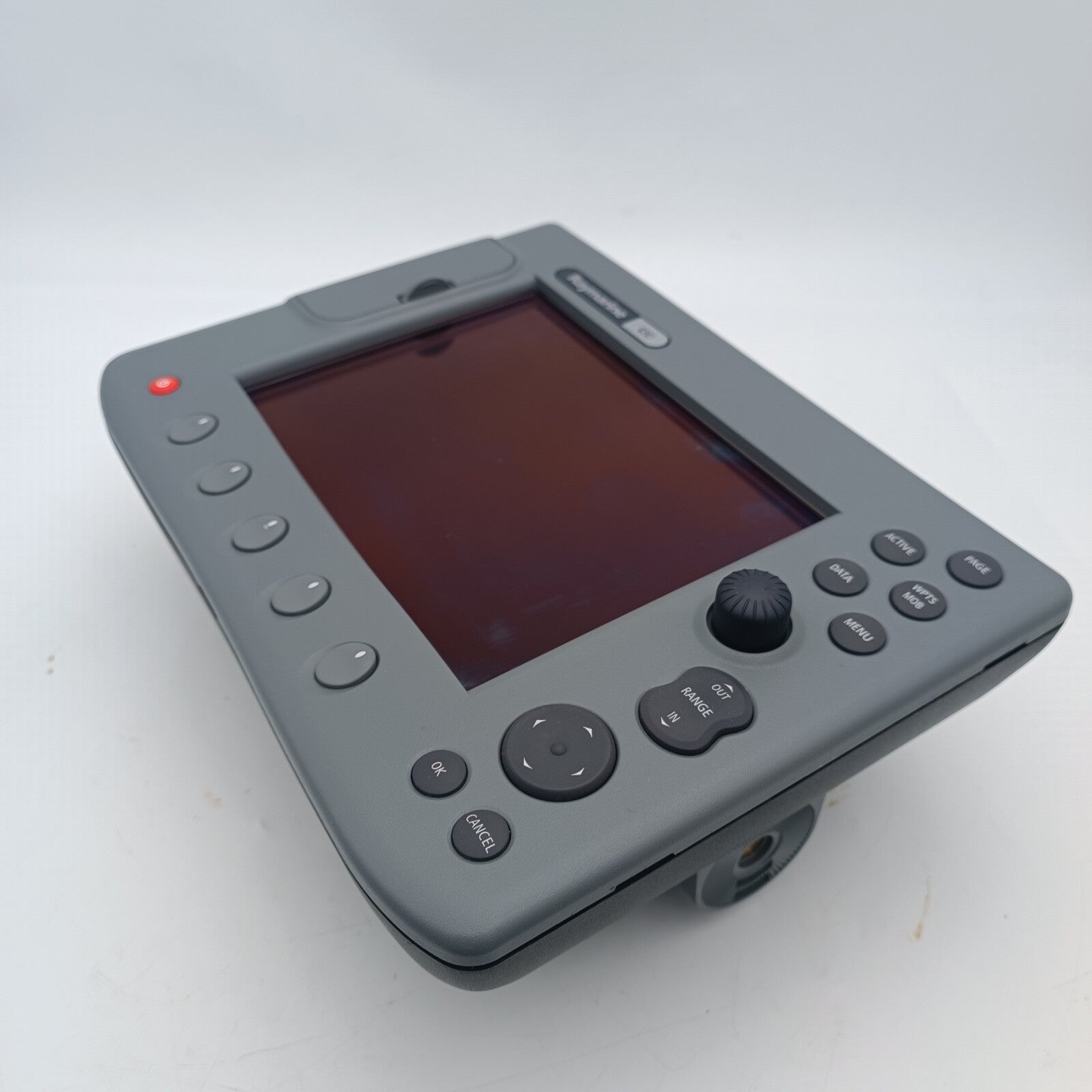

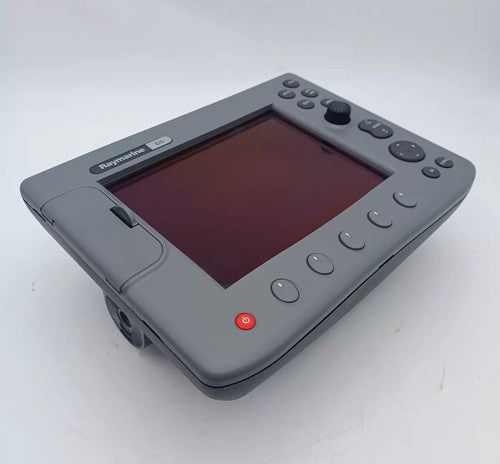

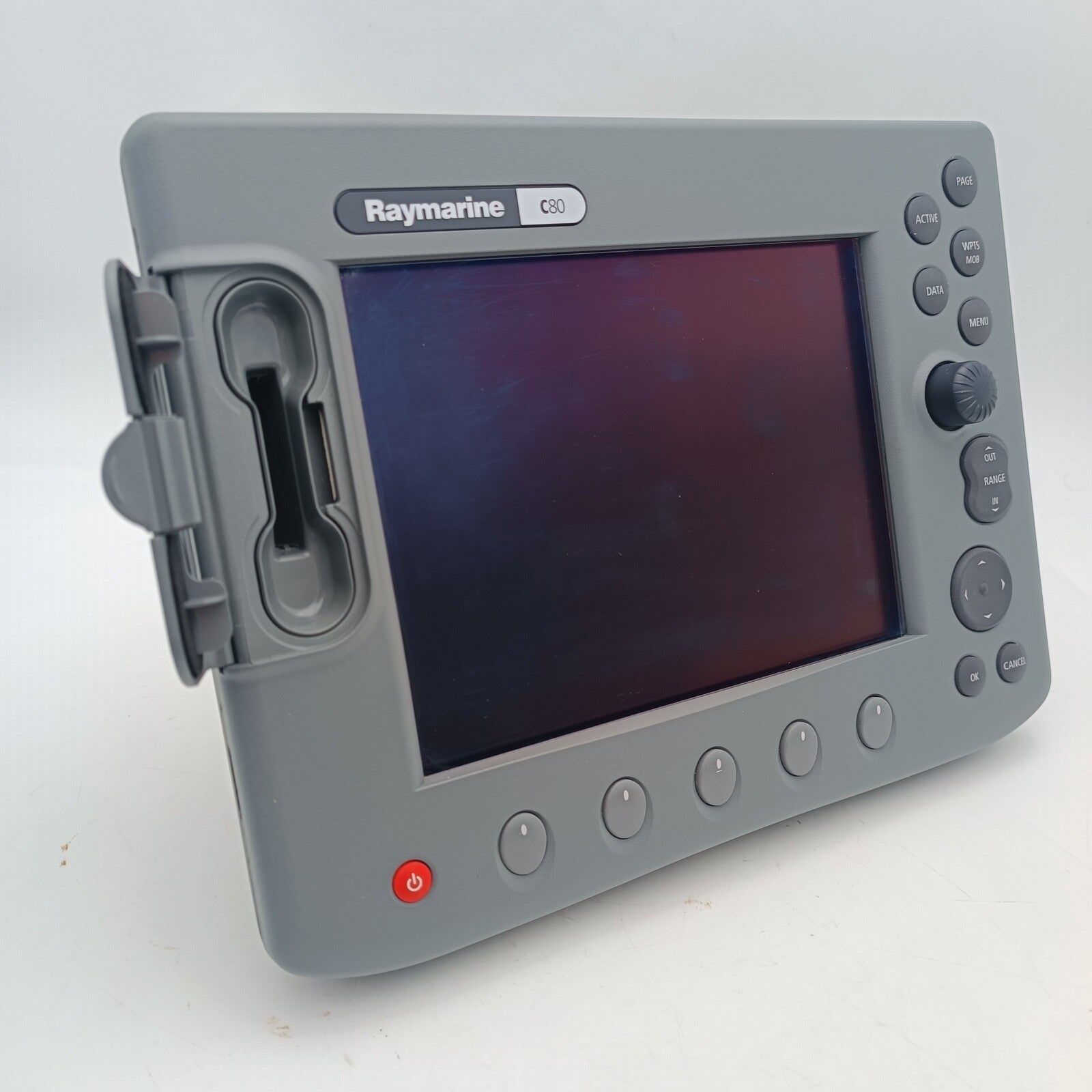

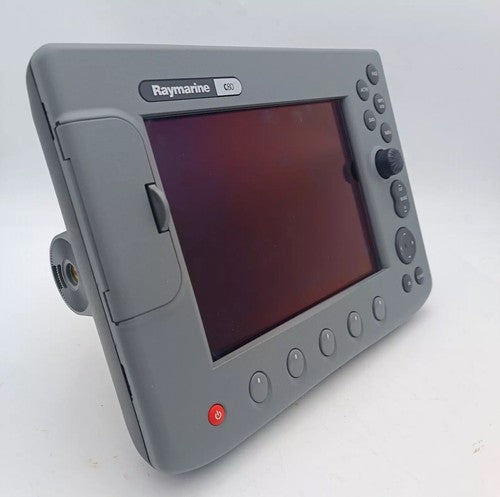

Raymarine C80 Chartplotter

C-Series GPS Fishfinder & Radar

All-In-One

RAYMARINE C80 CHARTPLOTTER, FISHFINDER, RADAR, ALL-IN-ONE

The mid-sized C80 Chartplotter from Raymarine is the perfect choice for installations where visibility is critical, but space is at a premium.  Raymarine's C80 puts the power of Multifunction Navigation into a single compact display.  With inputs for GPS sensor, radar, HD Digital sounder module, SIRIUS Satellite Radio and Marine Weather, the C80 Multifunction Navigation Display is easily transformed into a navigation system that's just right for you.

Utilizing the latest LCD display technologies, the C80 is direct sunlight viewable with excellent contrast and a wide viewing angle.  A high resolution 640 x 480 pixel transflective LCD panel with 256 colors makes for a crisp, clear picture that's visible under even the most challenging lighting conditions.

Raymarine C80 Chartplotter supports Raymarine's SeaTalk and SeaTalk2/SeaTalkNG navigation networks for communication with instruments and autopilots. The  C80 also supports the industry standard NMEA 0183 and NMEA 2000 for integration with 3rd party electronics as well as electronic engine monitoring.

Rugged and waterproof, the  C80 includes both a convenient trunion mounting bracket as well as a low-profile flush mounting kit for a clean, unobtrusive helm.

The Raymarine C80 Chartplotter kit comes with an owners manual, quick reference guide, full-face suncover, trunion mounting kit, flush mounting kit, NMEA input/output cable, power cable, and SeaTalk cable.

RAYMARINE C80 FEATURES

Multifunction

Configure any C-Series display as single function stand-alone chartplotter,digital fishfinder or radar.

Build a powerful all-in-one chart/radar/sounder system.

SIRIUS Satellite Weather and Radio integration.

Intuitive

The intuitive C-Series interface puts you in command. Simply “Page”through your choice of displays

Create custom windows of any combination of chartplotter,radar or sonar.

Twist N’ Click™ Rotary control provides easy alphanumeric waypoint storage.

Advanced Display Technology

Direct Sunlight Viewable

High resolution 256 color displays

Excellent contrast and a wide viewing angle

Very low profile flush mounting for a clean, unobtrusive helm.

Rugged and weatherproof (CFR46)

C80 Weather and Satellite Radio

simply add the new Raymarine SR50 weather receiver for access to the latest graphical weather forecasts and SIRIUS satellite radio.

Animated WSI NowRad® weather radar, storm track cell tracking and lightning strike reports.

Up-to-date Satellite Sea Surface Temperature observations give fishermen a tactical advantage.

Animated surface pressure, wind forecasts, wave heights and more.

Context-sensitive cursor reveals weather data at any location with the click of a button.

Marine watch box warnings alert you when severe weather advisories are issued for your area

130 channels of commercial free music, news, sports, talk and more.

Convenient radio tuner controls right from your C-Series display.

High-quality audio output to your boats stereo receiver auxiliary input or amplifier.

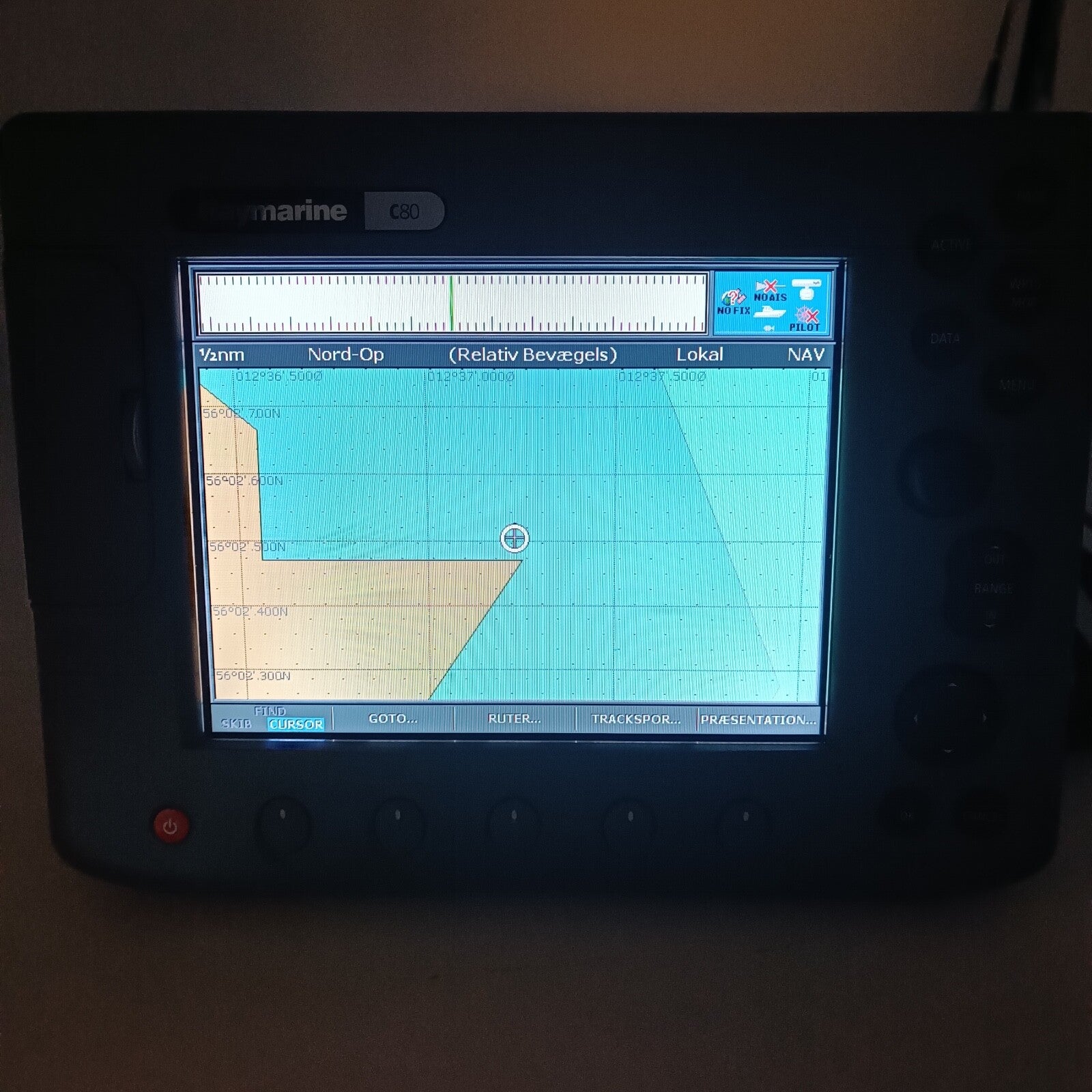

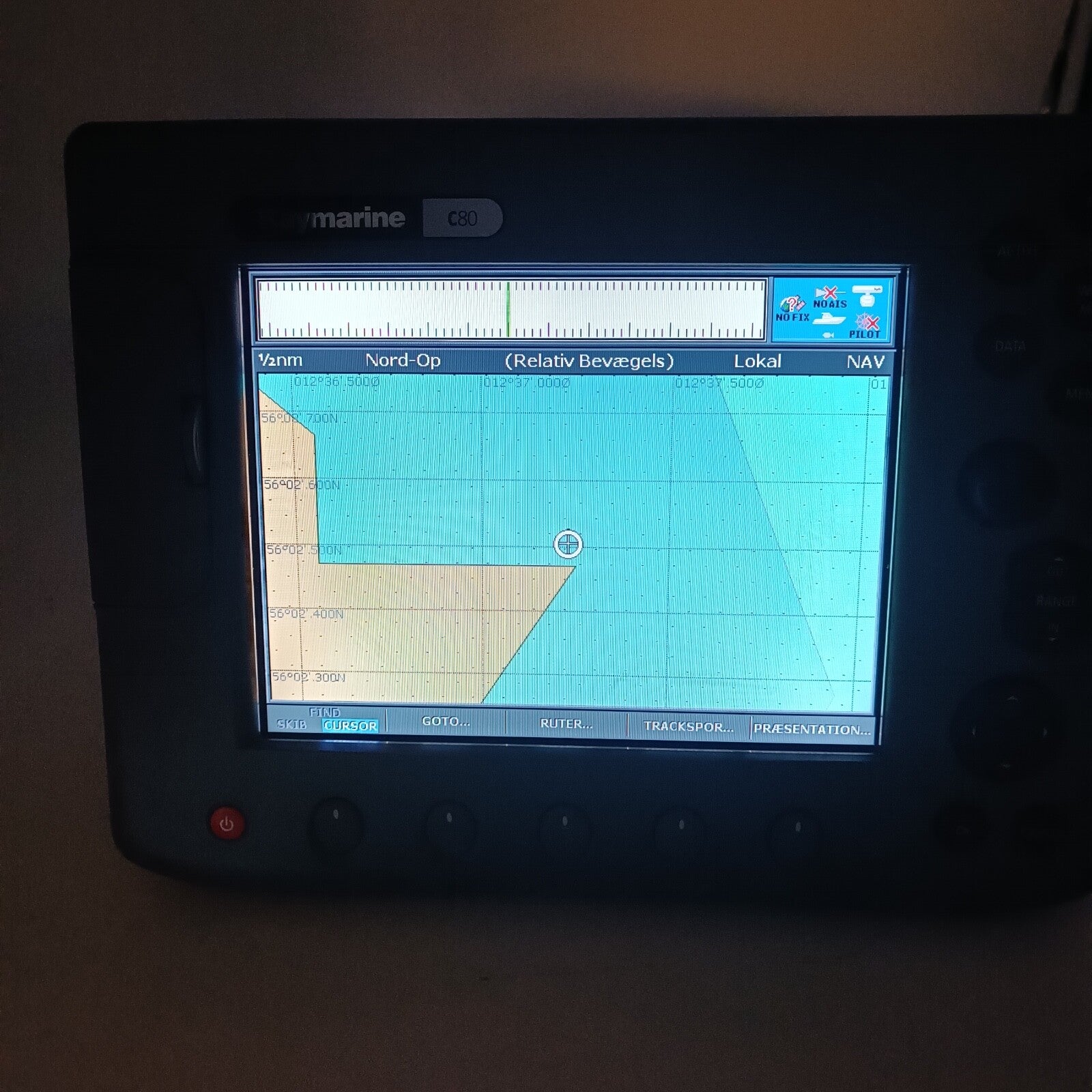

C80 GPS Chartplotter

Connect an optional Raystar GPS Sensor and choose Navionics charts to transform any C-Series display into accurate and detailed GPS charting system.

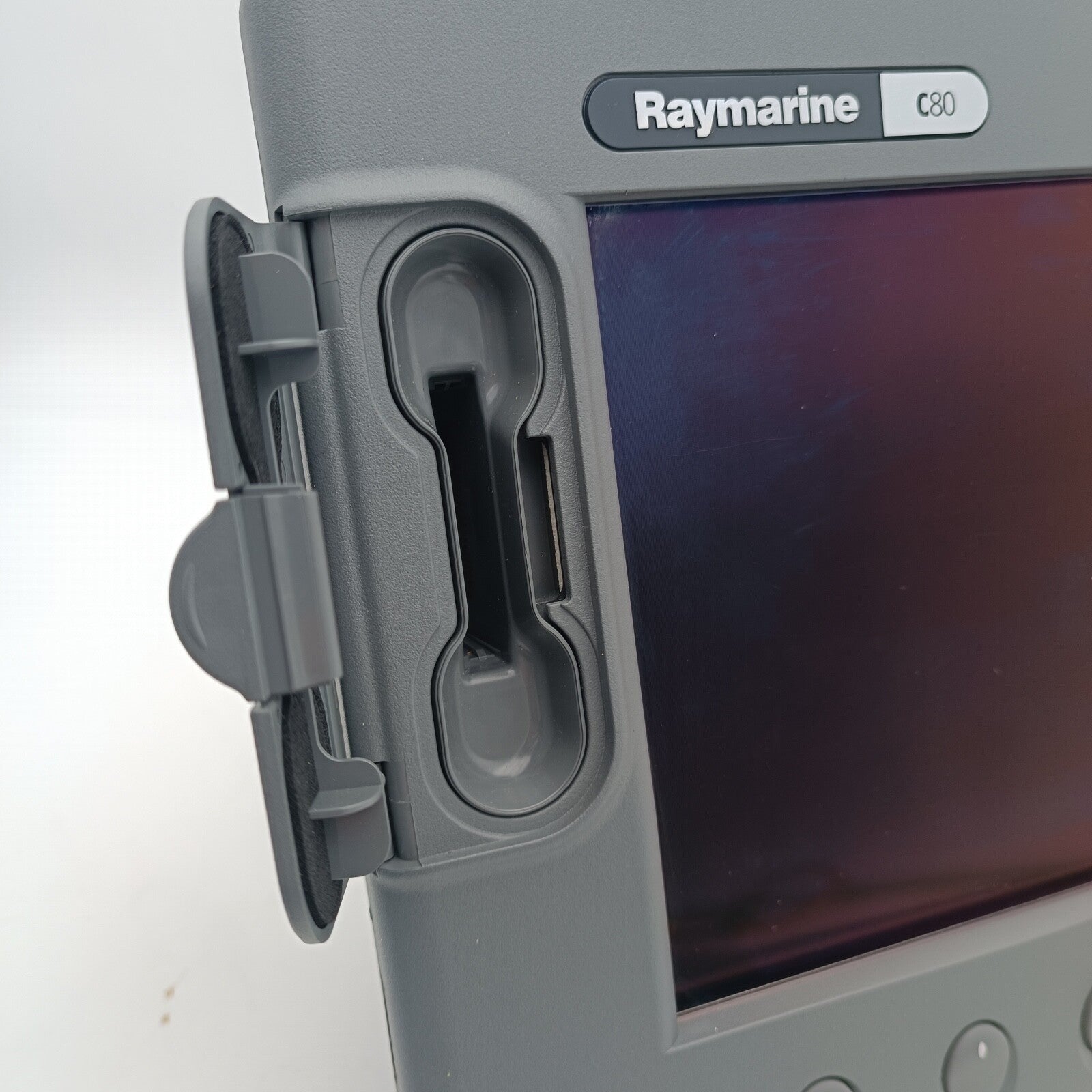

Support for professional quality Navionics® vector charts on CompactFlash.

Fast chart screen redraw.

256 color high resolution display provides paper-like chart clarity

True or relative motion and course-up/north-up/head-up modes.

Auto Range mode intelligently maintains your vessel and your waypoint on the best chart scale while underway.

Loran TD positioning mode

On screen VHF DSC position reports (when connected to compatible DSC VHF via NMEA,)

AIS Target tracking using the optional Raymarine AIS250 receiver.

C80 Digital Fishfinder

Transform a C-Series display into the ultimate fishfinder with HD Digital ™ technology using an optional Raymarine Digital Sounder Module .

Raymarine’s patented HD Digital fishfinder technology using a remotely

mounted Digital Sounder Module.

Hands-free HD Digital technology automatically adjusts more than 220 sonar parameters per second and virtually eliminates clutter.

HD Digital adaptive receiver technology targets fish and bottom structure

with amazing clarity.

600 or 1000 Watt power output with dual frequency 200/50 Khz operation.

Bottom lock, A-Scope and zoom modes.

Maximum depth of 5000 ft. (1700 meters.)

Full range of high and ultra high performance transducers available.

C80 Radar

Raymarine brings you unmatched radar performance. Connect an optional radome or open-array antenna to any C-Series display to create a powerful radar system.

Radar/chart overlay.

MARPA (Mini-Automatic-Radar-Plotting-Aid) target tracking.

Waypoint navigation and multiple waypoint overlay.

Low receiver noise figure (less than 5 dB).

Auto GST™ fully automatic gain,sea clutter and tune control for real hands off operation.

Advanced microprocessor controlled transmitter-receiver features 8 pulse width/PRF settings, providing enhanced target returns through every range scale.

AIS Target tracking using the optional Raymarine AIS250.

C80 Engine and Instrument Data Integration

With support for SeaTalk, SeaTalk NG (next generation), NMEA 0183, NMEA 2000 and J1939, Raymarine C-Series in the center point for all of your vessel's navigation, instrument, and engine data.

Control your Raymarine SeaTalk compatible autopilot right from your C-Series display.

Repeat information from your connected instruments, autopilot, GPS, weather instruments and more.

Customizable data displays support multiple combinations of graphical, digital and analog information.

Monitor critical engine functions like RPM, oil pressure, fuel level and flow rate, coolant temperature, trim tabs and engine tilt, generator electrical data and more using NMEA2000 or J1939.

RAYMARINE C80 SPECIFICATIONS

General

Data Display CapabilitiesChartplotter, Fishfinder, Radar, Satellite Weather, CDI(Course Deviation Indicator), and customizable Data Bar display

Dimensions11.1”X 8.2”X 4.31” (282.6 x 210 x 110mm)

Display (LCD) size8.4"

Display colors256 Colors

Display resolution640 x 480 pixels (VGA)

Display typeSunlight viewable color TFT LCD

Mounting MethodsBracket or console Mounting hardware included

Operating and non operating temperature limits-4°F to 122°F (-10°C to 50°C)

Power consumption10 Watts

Voltage range10.7–32 volts (12/24v nominal)

WaterproofingCFR46/IPX6 standards

Weight4 lbs. (1.8 kg)

Approvals CE - conforms to FCC - compliant withEssential requirements of 1995/5/EC, 1989/336/EC. CFR47 Parts 2 & 80

MountingEither trunnion bracket or flush mount option

Humidity limitup to 95% at 35°C non-condensing

Display WindowsChart, Radar, Fishfinder, CDI, Data, Weather and Engine Monitor.

IlluminationScreen and keypad: 0 to 100% in 64 steps Day/Night Mode

LanguagesThe selection available will vary according to your location.

System AlarmsAlarm clock, Anchor, Arrival, Deep depth, MOB, Offtrack, Shallow depth, Temperature, Timer

Navigation AlarmsArrival alarm, offtrack XTE alarm.

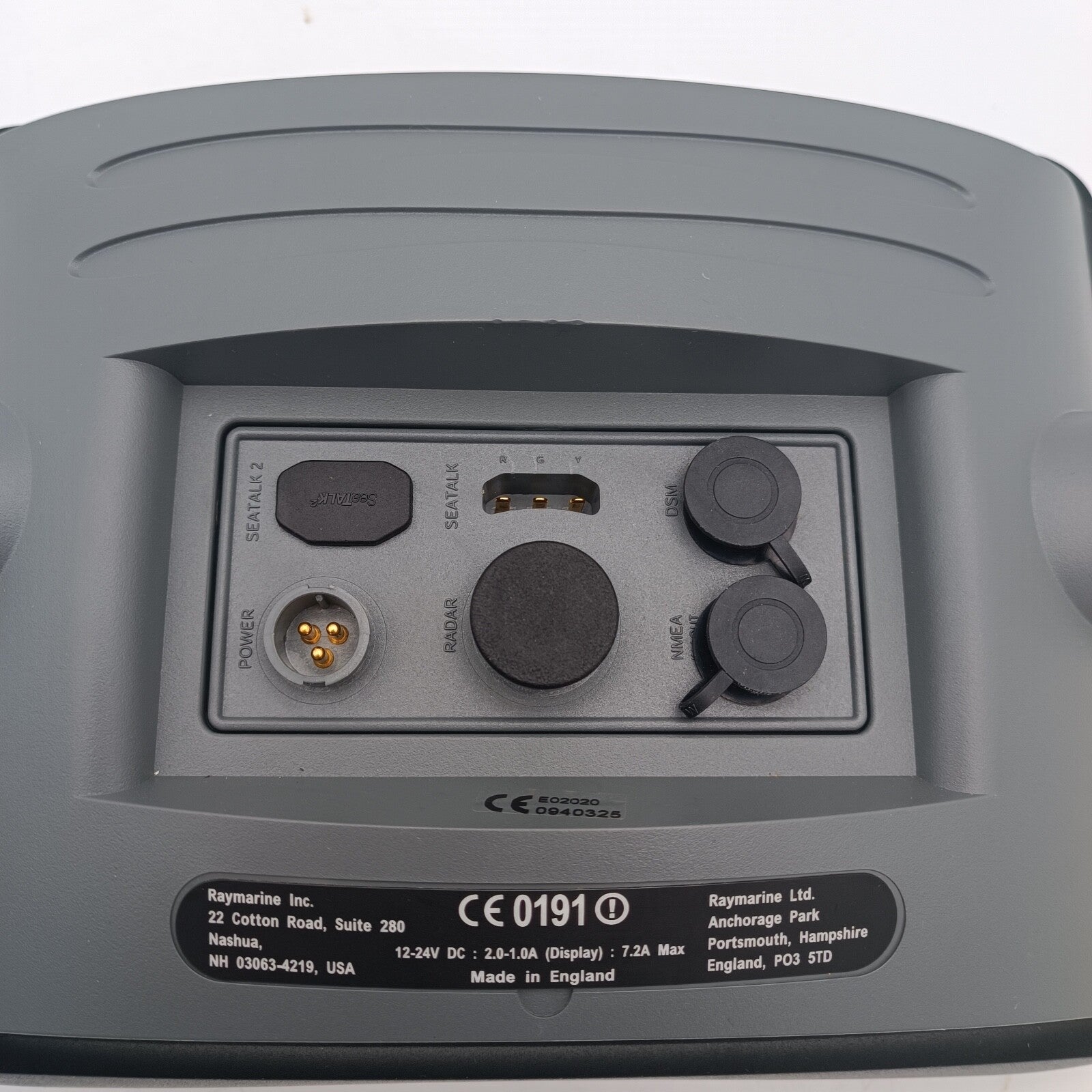

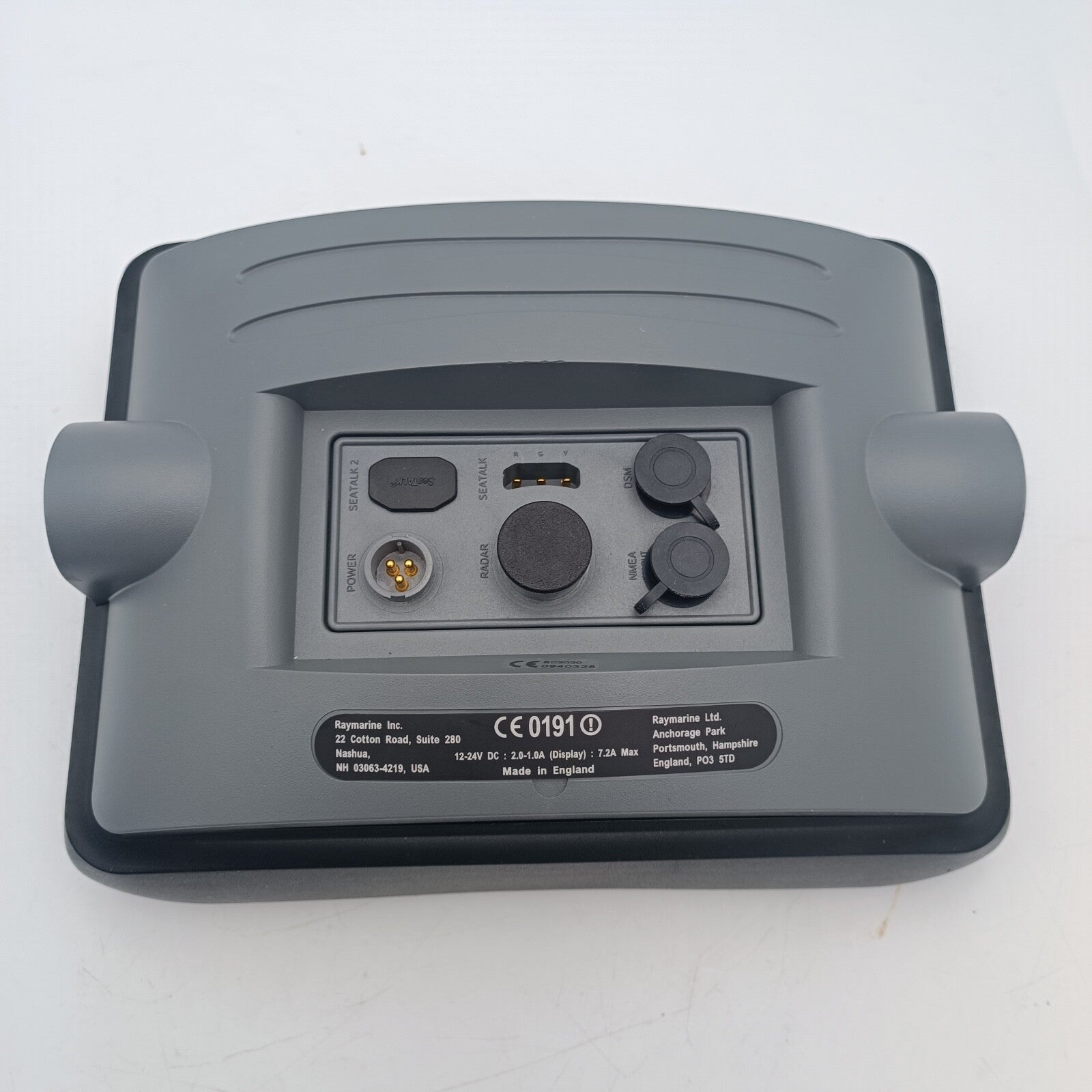

Interfaces

NMEA 0183 InputGLL, GGA, GLC, GTD, VTG, BWC, BWR, RMA, RMB, RMC, XTE, VHW, HDG, HDM, HDT, DBT, DPT, APB, VLW, MWV, WPL, RTE, DSC and ZDA. Selectable to 4800, 4800 Navtex, 9600 Navtex or 38,400 AIS

NMEA Output - User selectableAPB, BWC, BWR, DBT, DPT, GGA, GLL, MTW, RMA, RMB, RMC, RSD, TTM, VLW, VHW, VTG, WPL, VHF/DSC and ZDA

SeaTalk InputDepth,SOG,COG, Position, Waypoint number, range/ bearing, TTG, Boat speed, Time, XTE, Heading, Wind, data, Log/Trip, Pilot status, Temperature, MOB and cursor position

SeaTalk OutputCursor data, guard zone and navigational data bridged from NMEA

SeaTalk2/NMEA20001 portAlso supports SeaTalkng (Next Generation data bus) connectivity. Adapter cables required for SeaTalkng and NMEA2000

Chartplotter

Waypoints1000 waypoints entered via cursor, lat/lon, range and bearing from present position or at boat’s position. 16 character name can be assigned. Waypoint symbols and groups Additional storage available on CompactFlash cards.

Waypoint TransferWaypoints database via NMEA and CompactFlash cards. Software also available to convert waypoints to Excel file.

Man Overboard (MOB Mode)Mark placed with course line; readout shows range, bearing, lat/lon of MOB and time elapsed since MOB.

Screen functionsFull, half and quarter screens available dependant on function. Also 3 window page with 2 x 1/4 page windows and 1 x 1/2 page window.

CartographyNavionics Charts on CompactFlash cards Chart of the world built in.

Chart scaling1/32nm (if cartographic detail is available to 4000nm).

Presentation ModesHead up, Course up or North up (selectable True or Mag-netic). Relative, Autorange or True Motion. Screen offset. Radar or 3D synchronization.

RoutesA route plan may contain up to 50 waypoints. Up to100 routes can be stored in the units internal memory. Additional storage available on CompactFlash cards. SmartRoute to create a route from track history.

Track History10 tracks with up to 1000 points in each can be stored in the units internal memory. Track optimization reduces number of points used or user selectable time or distance interval. Additional storage available on CompactFlash cards

Radar/Chart overlayRadar image can be overlaid on all screen charts.

Radar/Chart synchronizationTo synchronize radar range and chart scale

AIS overlaySwitch AIS symbols on/off. Display heading/speed vectors and ROT. View detailed AIS data, safety critical target data, ALR and SRM messages. Set up a safe zone.

Navigation informationOwn boats position in lat/lon, XTE, TTG and SOG/COG selectable. Bearing and distance to waypoint. Bearing and distance to cursor and ETA.

CartographyNavionics Charts on CompactFlash cards Chart of the world built in.

Radar

Range Scales (Range Rings)1/8 (1/16)nm to 72 (12) nm dependant on scanner Performance limited by scanner type and position.

Range Ring AccuracyBetter than +/- 1.5% of the max. range scale in use, or 22m (72 ft.), whichever is the greatest.

Bearing accuracy+/- 1°

Variable Range Markers2 x VRM’s, readout nm, sm, km

Electronic Bearing Lines2 x EBL’s, floating if required, resolution 1°

Bearing scale360° graduated at 10° intervals 2° small ticks 10° large ticks

Minimum range23m (25 yds)

Range Discrimination23m (25 yds)

Presentation ModesHead up, Course up or North up (selectable True or Mag-netic) Relative or True Motion

Scanner ControlInterference rejection, standby/transmit modes, pulse selection, Tune, Rain, FTC and Sea controls, with selection of manual or automatic control of gain, sea clutter and tune (Auto GST)

Compass InputNMEA 0183 (required for fast heading data, suitable for MARPA), or SeaTalk

Waypoint DisplayCreate waypoints and target waypoint displayed with User control of symbols and groups

MARPAManual acquisition of 10 targets, automatic tracking, dangerous target alarms, safe zone, target history, true or rela-tive vectors, CPA graphics and indication of target speed/ course, bearing/ range, CPA and TCPA.

Guard Zone Alarm2 guard zones, selectable sensitivity level, audible alarm

Automatic TuningAuto control of gain, sea clutter and tune.

Off Center functionIn Relative Motion, 1/3 or

Wakes10s, 30s, 1 min, 5 min, 10 min, OFF

Target ExpansionOperator selectable with 2 levels available, OFF

Timed TXRotation periods: 10, 20 or 30 scans Repetition periods: 3, 5, 10 or 15 minutes

AIS overlaySwitch AIS symbols on/off. Display heading/speed vectors and ROT. View detailed AIS data, safety critical target data, ALR and SRM messages. Set up a safe zone.

Fishfinder

TransducerTransom-mount, in-hull or thru-hull options

Receiver TypePatented Raymarine HD Digital receiver technology

Power outputDependant on Digital Sounder Module

FrequencyDependant on Digital Sounder Module

AlarmsFish alarm, fish alarm depth, shallow and deep fish limit

A-Scope DisplayDisplays Sonar Returns in real time

Bottom Coverage DisplayShows the diameter of the transducer beam where it meets the bottom.

Bottom LockDisplays echoes directly above the bottom.

Range markersEasily see how far the boat is from a target on the echo sounder screen

Target DetectionSonar fish echo with target depth readout

Zoom2,3,4x and user programmable Zoom scales

Instrument and Engine Data

Data Pages5 pages available. Pre-defined (Navigation, Waypoint, Route, Fishing or Sailing) or user-configured.

Data availableVessel position, active waypoint, TTG, VMG - Waypoint, depth, COG SOG, heading, speed, set/drift, trip, log, ground log, ground trip, rudder, local time and date, sea temperature, app wind, true wind, VMG wind, ground wind XTE,compass,locked heading, way

Engine Pages5 pages available. Pre-defined (engine, engine and fuel, fuel resources, engine and resources, twin engines or triple engine support) or user-configured.

Engine Data availableTacho, boost pressure, alternator, oil pressure, coolant temperature, engine hours, fuel level (tanks 1 & 2), fuel rate, total fuel, load.

Weather

TypeSIRIUS Marine Weather

Weather elementsStorm cast, waves, Canadian radar, lightning, wind, sea sur-face temperature, surface observations stations, city weather, NOWRad, storm tracks, surface pressure.

Animated weather graphicsWeather forecast, weather radar history

Weather reportsTropical statements, marine warnings, marine zone fore-casts, marine watchbox.

NavTex

AlertsIncoming message (selectable categories)

Message ListSorting

AIS

Target symbolsSleeping, activated, selected, dangerous and lost.

Target informationAIS vectors, safety critical data and full AIS data.

Collision avoidanceSafe zones and safety messages.

AlarmsLocal alarm messages, lost targets

Satellite Radio

SIRIUS Satellite RadioWhen connected to optional SR50 SIRIUS Satellite Radio and Weather Receiver.
