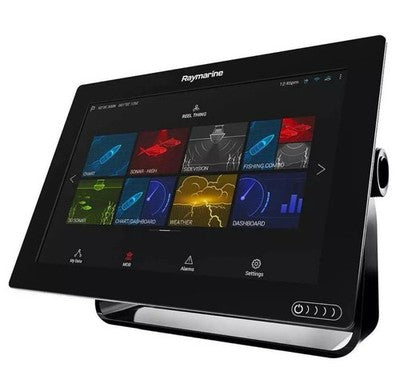

Marine 12” High-Performance Multifunction Display (Chartplotter)
LCD Display
• Screen Size: 12” (304.8 mm)
• Resolution: WXGA 1280 × 800
• Aspect Ratio: 5:3
• Viewing Angle: 88° (Top/Bottom/Left/Right)
• Color Depth: 24-bit
• Brightness: 1200 nits (1200 cd/m²)
• Touch Support: Up to 2 simultaneous touches
GNSS (GPS) Receiver
• Position Accuracy:
• Without SBAS: ≤ 15 m (95% of the time)
• With SBAS: ≤ 5 m (95% of the time)
• Geodetic Datum: WGS-84 (other datums selectable)
• Differential Systems (SBAS): WAAS (USA), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan)
• Tracking Capacity: Up to 28 satellites simultaneously
• GNSS Compatibility: GPS, GLONASS, BeiDou
• Antenna: Internal ceramic chip, top-mounted
• Almanac Update: Automatic
• Signal Acquisition: Automatic
• Receiver Sensitivity:
• Tracking: –165 dBm
• Acquisition: –160 dBm
• Cold Start: –148 dBm
• Operating Frequency: 1574–1605 MHz
• Cold Start Time to First Fix: < 2 minutes

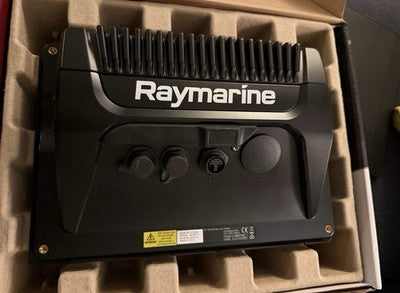

Physical Interfaces
• USB: Micro-B
• Ethernet: RayNet (10/100 Mbit/s)
• External Storage: 1 × MicroSDXC card slot
• NMEA 2000: DeviceNet (male, integrated in power cable)
• Wireless: Bluetooth 4.0, Wi-Fi 802.11 b/g/n
• Internal Storage: 4 GB solid state (2 GB usable)
Environmental Ratings
• Operating Temperature: –25°C to +55°C (–13°F to +131°F)
• Storage Temperature: –30°C to +70°C (–22°F to +158°F)
• Humidity: Up to 93% at 40°C (104°F)
• Waterproof: IPX6 and IPX7
Power Requirements
• Operating Voltage: 8–16 VDC
• Nominal Supply Voltage: 12 VDC
• Power Consumption: 18.96 W
• Fuse Rating: 7 A
• NMEA 2000 LEN: 1
Product Information
• Manufacturer: Raymarine
• Model: Axiom 12
• Part Number: E70368
